Ferrari F8 Spider — [MECHANICAL SYSTEM] - D.27.01 - REAR SUSPENSION - SHOCK ABSORBERS (diagram 0079)

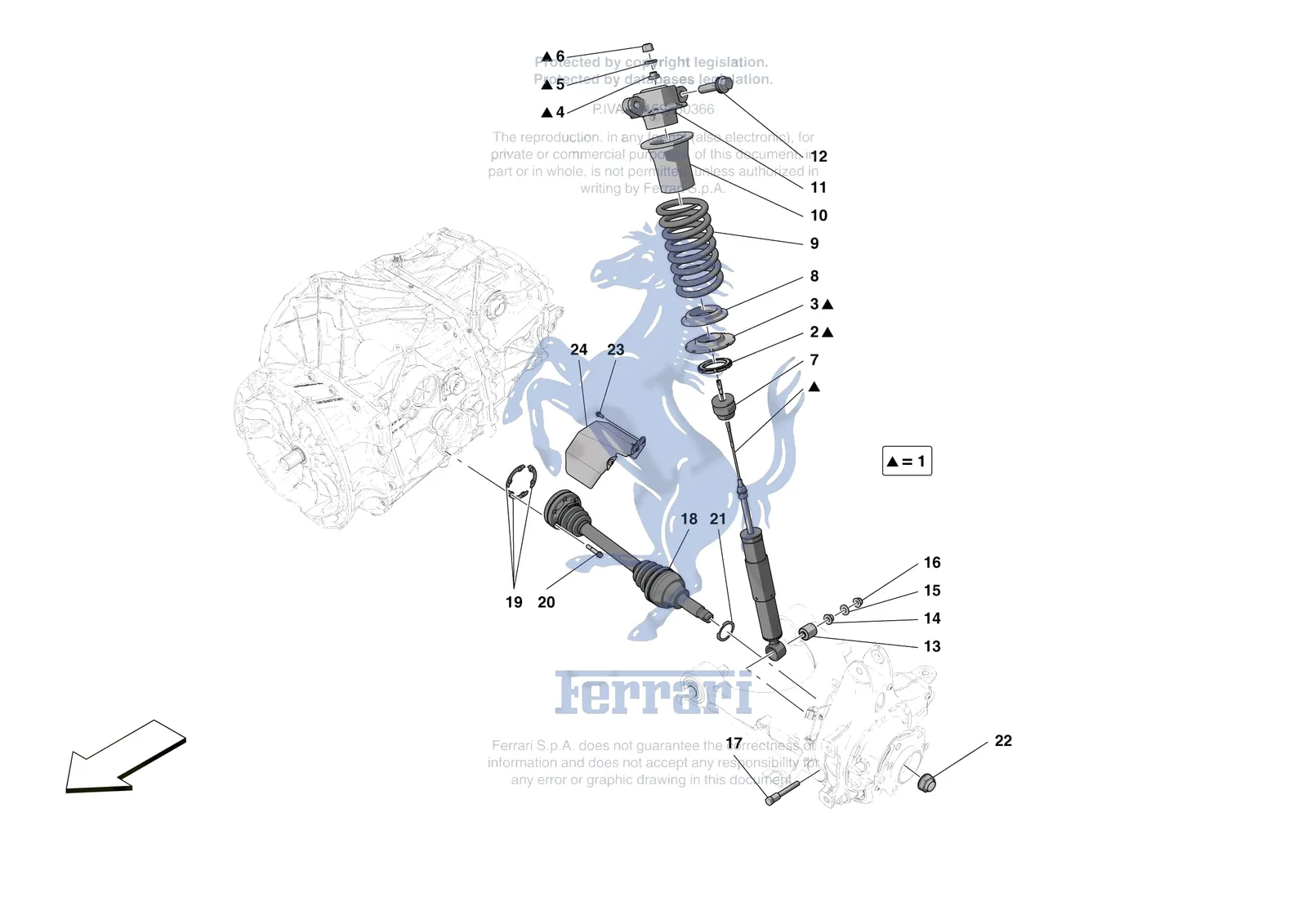

Exploded view of the [mechanical system] - d.27.01 - rear suspension - shock absorbers on the Ferrari F8 Spider, with 28 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Spider [MECHANICAL SYSTEM] - D.27.01 - REAR SUSPENSION - SHOCK ABSORBERS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0079.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 187814 | Ferrari Hub Nut - 187814 | Superseded | Order 203780 instead | |
| 749878 | Ferrari Nut - 749878 | Superseded | Order 220378 instead | |
| 1 | 325388 | Ferrari Rear Shock Absorber - 325388 | $2,743.64 | Special order, ships in 7-14 days |
| 2 | 220351 | Ferrari Ring Nut - 220351 | $88.61 | Special order, ships in 7-14 days |
| 3 | 286402 | Ferrari Spring Retainer Platform - 286402 | $270.83 | Special order, ships in 7-14 days |
| 4 | 220383 | Ferrari Bush - 220383 | $66.35 | Available, ships in 3-6 days |
| 5 | 220377 | Ferrari Washer D.12.1 - 24 X 3 - 220377 | $14.84 | Special order, ships in 7-14 days |
| 6 | 220378 | Ferrari Nut M12 - 220378 | $9.16 | Special order, ships in 7-14 days |
| 7 | 281221 | Ferrari Endstop Bush - 281221 | $61.45 | Special order, ships in 7-14 days |
| 8 | 188996 | Ferrari Spring Support Pad - 188996 | $23.57 | Available, ships in 3-6 days |
| 9 | 309953 | Ferrari Shock Absorber Spring - 309953 | $295.43 | Special order, ships in 7-14 days |
| 10 | 212517 | Ferrari Dust Cover - 212517 | $18.17 | Available, ships in 3-6 days |
| 11 | 340231 | Ferrari Compl. Shock Absorber Retainer Cap - 340231 | $393.38 | Special order, ships in 7-14 days |
| 12 | 248790 | Ferrari Screw M12 x 1.25 x 50 - 248790 | $7.63 | Available, ships in 3-6 days |
| 13 | 157630 | Ferrari Front and Rear Shock Bushing PREKOM - 157630 | $87.45 | In stock |
| 14 | 237821 | Ferrari Bushing 18x15 - 237821 | $9.16 | Available, ships in 3-6 days |
| 15 | 12646921 | Ferrari Washer - 12646921 | $0.92 | Available, ships in 3-6 days |
| 16 | 255271 | Ferrari Nut M12 x 1.25 x - 255271 | $2.59 | Available, ships in 3-6 days |
| 17 | 246962 | Ferrari Special Screw M12 x 1.25 - 246962 | $58.98 | Special order, ships in 7-14 days |
| 18 | 220340 | Ferrari Axle Shaft - 220340 | Superseded | Order 825203 instead |
| 18 | 825203 | Ferrari Rear Axle Shaft - 825203 | $1,698.98 | In stock |
| 19 | 220325 | Ferrari Shim Plate - 220325 | $7.40 | Special order, ships in 7-14 days |
| 20 | 237590 | Ferrari Axle Bolt - 237590 | $5.56 | In stock |
| 21 | 814779 | Ferrari Special Ring Bearing For Axle Shaft - 814779 | $21.60 | Special order, ships in 7-14 days |
| 21 | 918121 | Ferrari Special Ring Bearing for Axle Shaft - 918121 | $34.40 | Special order, ships in 7-14 days |
| 22 | 203780 | Ferrari/Maserati Hub Nut - 203780 | $30.05 | In stock |
| 23 | 11568027 | Ferrari Screw 6x18 - 11568027 | $3.03 | Available, ships in 3-6 days |
| 24 | 877223 | Ferrari Paratia Riparo Cuffie Semias - 877223 | $81.23 | Special order, ships in 7-14 days |
