Ferrari F8 Spider — [MECHANICAL SYSTEM] - D.28 - REAR TORSION BAR (diagram 0082)

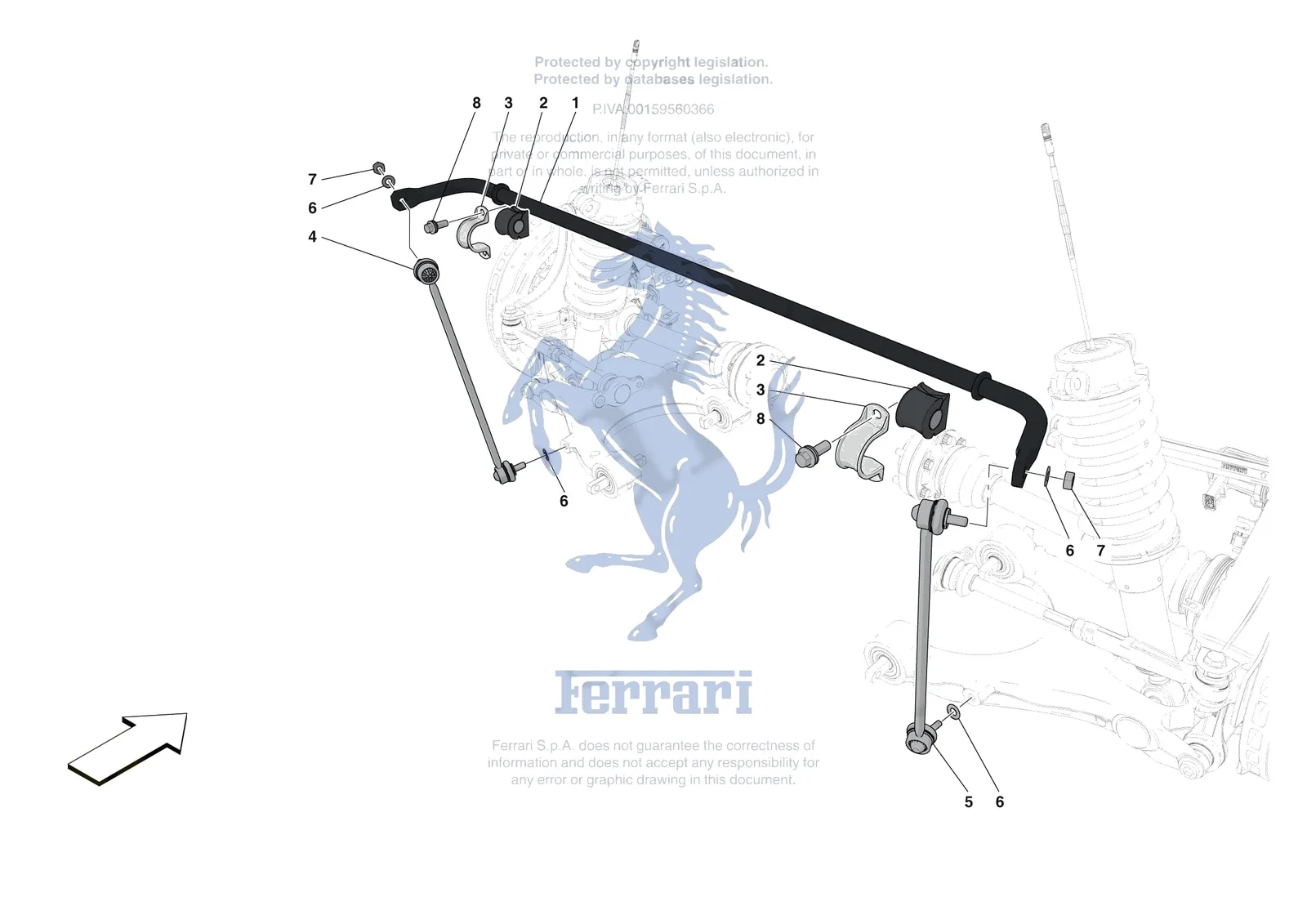

Exploded view of the [mechanical system] - d.28 - rear torsion bar on the Ferrari F8 Spider, with 11 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Spider [MECHANICAL SYSTEM] - D.28 - REAR TORSION BAR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0082.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 106853 | Ferrari Spring Washer 10mm - 106853 | Superseded | Order 12601474 instead | |
| 10516873 | Ferrari Washer - 10516873 | Superseded | Order 12601474 instead | |
| 12601471 | Ferrari Washer - 12601471 | Superseded | Order 12601474 instead | |
| 1 | 289880 | Ferrari Stabiliser Bar - 289880 | $689.41 | Special order, ships in 7-14 days |
| 2 | 240824 | Ferrari Plug - 240824 | $31.93 | Available, ships in 3-6 days |
| 3 | 244778 | Ferrari Anti-Roll Bar Bush Bracket - 244778 | $36.86 | Special order, ships in 7-14 days |
| 4 | 250452 | Ferrari LH Ball Joint Tie-Rod - 250452 | $206.81 | Special order, ships in 7-14 days |
| 5 | 250453 | Ferrari RH Ball Joint Tie-Rod - 250453 | $206.81 | Special order, ships in 7-14 days |
| 6 | 12601474 | Ferrari Wavy Washer 10mm - 12601474 | $0.06 | Available, ships in 3-6 days |
| 7 | 12164714 | Ferrari Nut M10 x 1.25 x 8 - 12164714 | $0.82 | Available, ships in 3-6 days |
| 8 | 264117 | Ferrari Screw - 264117 | $5.44 | Special order, ships in 7-14 days |
