Ferrari F8 Spider — [MECHANICAL SYSTEM] - D.29 - COMPLETE WHEELS (diagram 0083)

Exploded view of the [mechanical system] - d.29 - complete wheels on the Ferrari F8 Spider, with 57 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

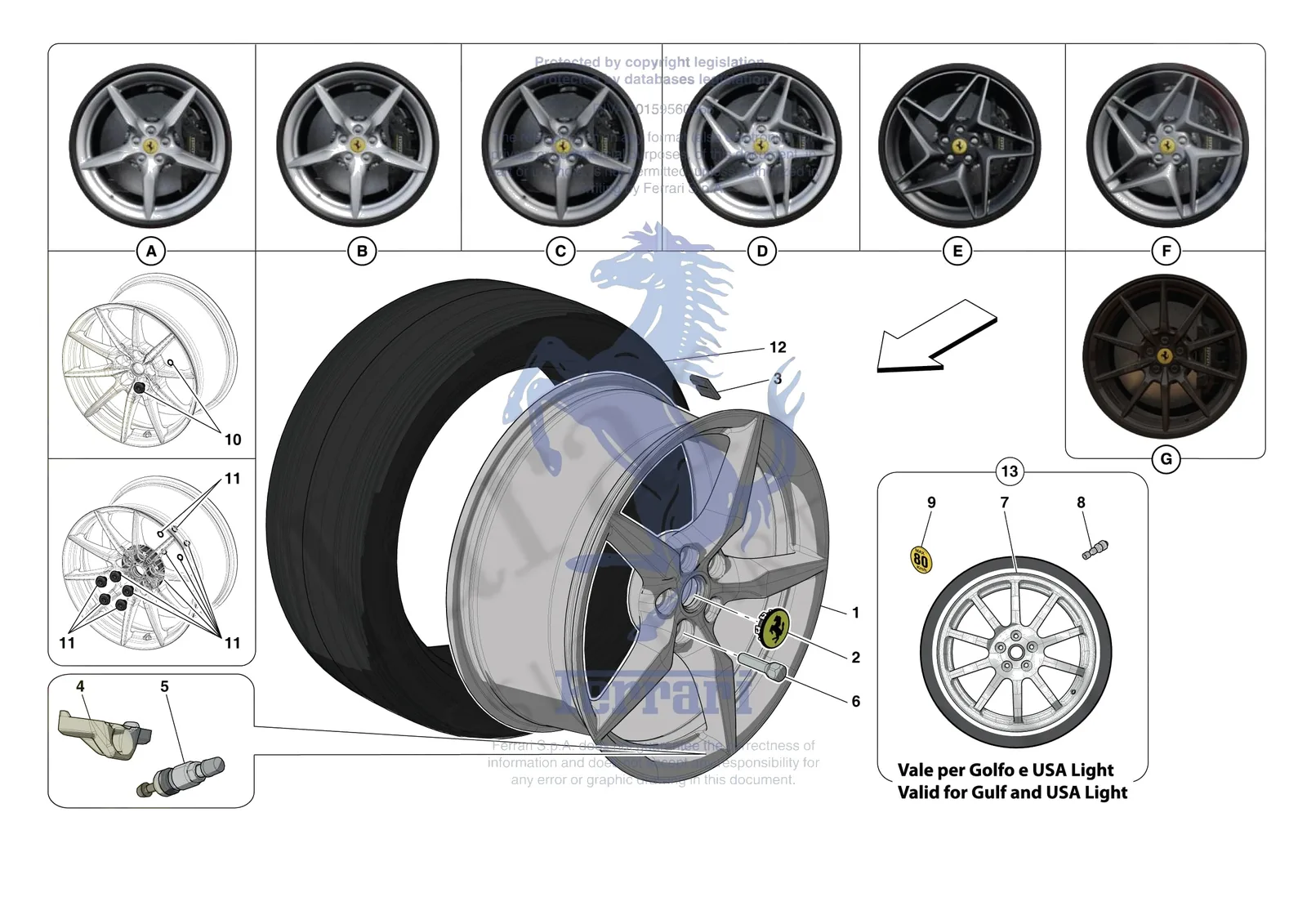

Ferrari F8 Spider [MECHANICAL SYSTEM] - D.29 - COMPLETE WHEELS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
342906Ferrari Front Wheel 9J X 20 - 342906SupersededOrder 866267 instead
70004402Ferrari Kit Sostit. Sede Colonn. Cer - 70004402$571.13Special order, ships in 7-14 days
70004351Ferrari Kit Sostit.Parti In All. Cer - 70004351SupersededOrder 70005123 instead
108947Ferrari Push In Hub Cap - 108947SupersededOrder 55059092 instead
226245Ferrari Push In Hub Cap - 226245SupersededOrder 55059092 instead
342907Ferrari Rear Wheel 11J X 20 - 342907$21,868.69Special order, ships in 7-14 days
192724Ferrari Wheel Bolt - 192724SupersededOrder 55031812 instead
247702Ferrari Wheel Bolt L50.5-26.5F - 247702SupersededOrder 55031812 instead
170006934Ferrari Front Wheel - 70006934$11,333.16Special order, ships in 7-14 days
1866267Ferrari Front Wheel 9J X 20 - 866267$16,825.70Special order, ships in 7-14 days
1315897Ferrari Front Wheel 9Jx20 - 315897$2,630.56Special order, ships in 7-14 days
1317174Ferrari Front Wheel 9Jx20 - 317174$2,668.07Special order, ships in 7-14 days
1318889Ferrari Front Wheel 9Jx20 - 318889$1,834.30Special order, ships in 7-14 days
170006935Ferrari LH Front Wheel - 70006935$15,406.20Special order, ships in 7-14 days
1861242Ferrari LH Front Wheel 9J x 20 - 861242$5,782.25Special order, ships in 7-14 days
1861244Ferrari LH Front Wheel 9Jx20 - 861244$5,261.14Special order, ships in 7-14 days
1861246Ferrari LH Front Wheel 9Jx20 - 861246$6,149.12Special order, ships in 7-14 days
170006938Ferrari LH Rear Wheel - 70006938$16,279.58Special order, ships in 7-14 days
1861251Ferrari LH Rear Wheel 11Jx20 - 861251$6,386.75Special order, ships in 7-14 days
1861253Ferrari LH Rear Wheel 11Jx20 - 861253$5,817.69Special order, ships in 7-14 days
1861255Ferrari LH Rear Wheel 11Jx20 - 861255$6,586.85Special order, ships in 7-14 days
170006937Ferrari Rear Wheel - 70006937$11,368.61Special order, ships in 7-14 days
1866268Ferrari Rear Wheel 11J X 20 - 866268$17,242.61Special order, ships in 7-14 days
1315898Ferrari Rear Wheel 11Jx20 - 315898$2,668.07Special order, ships in 7-14 days
1317175Ferrari Rear Wheel 11Jx20 - 317175$2,707.68Special order, ships in 7-14 days
1318890Ferrari Rear Wheel 11Jx20 - 318890$1,875.98Special order, ships in 7-14 days
170006936Ferrari RH Front Wheel - 70006936$15,589.64Special order, ships in 7-14 days
1861243Ferrari RH Front Wheel 9Jx20 - 861243$5,782.25Special order, ships in 7-14 days
1861245Ferrari RH Front Wheel 9Jx20 - 861245$5,261.14Special order, ships in 7-14 days
1861247Ferrari RH Front Wheel 9Jx20 - 861247$6,149.12Special order, ships in 7-14 days
170006939Ferrari RH Rear Wheel - 70006939$16,279.58Special order, ships in 7-14 days
1861252Ferrari RH Rear Wheel 11Jx20 - 861252$6,386.75Special order, ships in 7-14 days
1861254Ferrari RH Rear Wheel 11Jx20 - 861254$5,817.69Special order, ships in 7-14 days
1861256Ferrari RH Rear Wheel 11Jx20 - 861256$6,586.85Special order, ships in 7-14 days
2744579Ferrari Hub Cap - 744579$58.05Available, ships in 3-6 days
2889561Ferrari Hub Cap - 889561$442.56Special order, ships in 7-14 days
2340066Ferrari Wheel Center Cap Set - 55059092/4SupersededOrder 55059092 instead
255059092Ferrari Wheel Centre Cap - 55059092$44.11Available, ships in 3-6 days
311096693Ferrari Adhesive Wheel Balancer Weight - 11096693$24.32Special order, ships in 7-14 days
3308296Ferrari Adhesive Wheel Balancer Weight - 308296$24.32Special order, ships in 7-14 days
4314818Ferrari Tpms Wheel Sensor Gen 3.8 - 314818SupersededOrder 777770 instead
4314821Ferrari Tyre Pressure Monitoring System - 314821SupersededOrder 777804 instead
4777804Ferrari Tyre Pressure Monitoring System - 777804$327.81Available, ships in 3-6 days
4777770Ferrari Tyre Pressure Monitoring System Wheel Sensor - 777770$327.81Available, ships in 3-6 days
5248171Ferrari Tyre Valve - 248171$100.51Special order, ships in 7-14 days
5913102Ferrari Tyre Valve - 913102$30.57Available, ships in 3-6 days
5913104Ferrari Tyre Valve - 913104$37.13Special order, ships in 7-14 days
5185328Ferrari/Maserati Tire Valve - 185328$26.75In stock
6803384Ferrari Wheel Bolt L50.5-26 - 803384$24.47Available, ships in 3-6 days
655031812Ferrari Wheel Bolt L50.5-26.5 - 55031812$63.90Available, ships in 3-6 days
6206274Ferrari Wheel Bolt -Titanium M14x1.5x16 - 206274$348.38Available, ships in 3-6 days
7248736Ferrari 20" Spare Wheel Rim - 248736$3,353.87Special order, ships in 7-14 days
8317250104Ferrari Tyre Valve - 317250104$30.57Special order, ships in 7-14 days
9153815Ferrari Spare Wheel Label - 153815$29.48Available, ships in 3-6 days
1070005124Ferrari Kit Sostit. Sede Colonn. Cer - 70005124$573.70Special order, ships in 7-14 days
1170005123Ferrari Kit Sostit.Parti In All. Cer - 70005123$2,393.73Special order, ships in 7-14 days
13254075Ferrari Ruota Cpl Di Scorta 20 Pneu. - 254075$3,761.38Special order, ships in 7-14 days
