Ferrari F8 Spider — [MECHANICAL SYSTEM] - D.38 - TOOLS PROVIDED WITH VEHICLE (diagram 0093)
Exploded view of the [mechanical system] - d.38 - tools provided with vehicle on the Ferrari F8 Spider, with 25 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

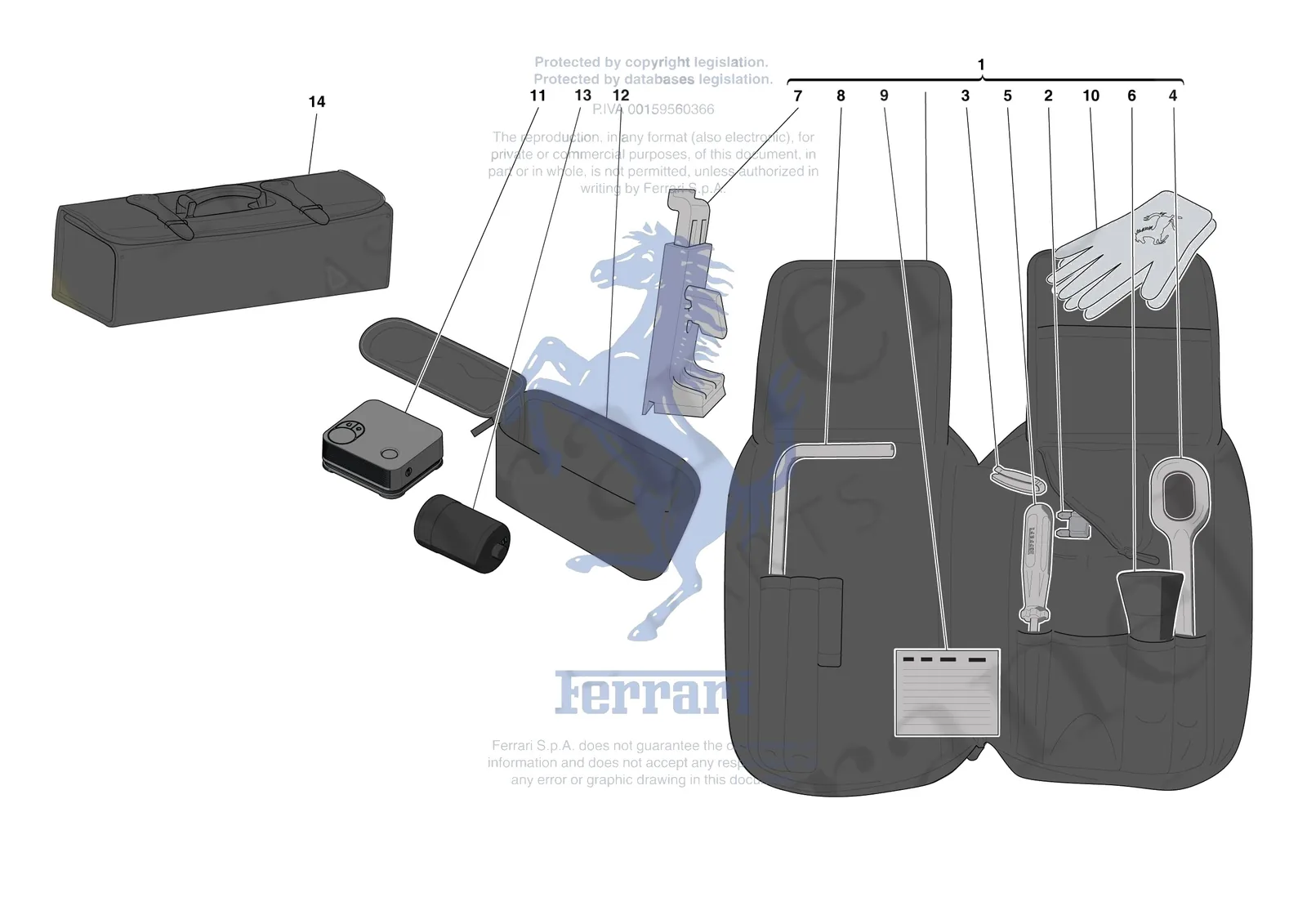

![Ferrari F8 Spider [MECHANICAL SYSTEM] - D.38 - TOOLS PROVIDED WITH VEHICLE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0093.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 280164 | Ferrari Tyre Repair Kit Complete - 280164 | Superseded | Order 336277 instead | |
| 1 | 876887 | Ferrari Borsa Attrezzi Cpl - 876887 | $886.38 | Special order, ships in 7-14 days |
| 2 | 169438 | Ferrari Maxi Fuse 20A - 169438 | $26.24 | Available, ships in 3-6 days |
| 2 | 170093 | Ferrari Maxi Fuse 30A - 170093 | $28.39 | Available, ships in 3-6 days |
| 2 | 166835 | Ferrari Maxi Fuse 40A - 166835 | $17.46 | Available, ships in 3-6 days |
| 2 | 170061 | Ferrari Maxi Fuse 50A - 170061 | $8.05 | Available, ships in 3-6 days |
| 2 | 172872 | Ferrari Maxi Fuse 70A - 172872 | $39.14 | Available, ships in 3-6 days |
| 2 | 172877 | Ferrari Mini Fuse 10A - 172877 | $17.23 | Available, ships in 3-6 days |
| 2 | 172878 | Ferrari Mini Fuse 15Amp - 172878 | $12.00 | Available, ships in 3-6 days |
| 2 | 172879 | Ferrari Mini Fuse 20A - 172879 | $13.95 | Available, ships in 3-6 days |
| 2 | 172880 | Ferrari Mini Fuse 25Amp - 172880 | $13.95 | Available, ships in 3-6 days |
| 2 | 172881 | Ferrari Mini Fuse 30Amp - 172881 | $17.02 | Available, ships in 3-6 days |
| 2 | 172876 | Ferrari Mini Fuse 7.5A - 172876 | $17.02 | Available, ships in 3-6 days |
| 3 | 178659 | Ferrari Fuse Pliers - 178659 | $4.89 | Special order, ships in 7-14 days |
| 4 | 155838 | Ferrari Tow Hook - 155838 | $98.87 | In stock |
| 5 | 225020 | Ferrari Screwdriver - 225020 | $56.52 | Special order, ships in 7-14 days |
| 6 | 260763 | Ferrari Emergency Refuelling Funnel - 260763 | $61.99 | Available, ships in 3-6 days |
| 7 | 287593 | Ferrari Roof Locking Tool - 287593 | $31.30 | Special order, ships in 7-14 days |
| 8 | 313812 | Ferrari DCT Gearbox Park Lock Release Tool - 313812 | $566.30 | Special order, ships in 7-14 days |
| 9 | 921221 | Ferrari Targh. Restrizione Sblocco - 921221 | $44.29 | Special order, ships in 7-14 days |
| 10 | 65253300 | Ferrari White Gloves - 65253300 | $49.28 | In stock |
| 11 | 336277 | Ferrari Tyre Repair Kit Complete - 336277 | $319.62 | Special order, ships in 7-14 days |
| 12 | 280165 | Ferrari Case - 280165 | $113.24 | Special order, ships in 7-14 days |
| 13 | 322481 | Ferrari Repair Kit Refill Bottle - 322481 | $204.05 | Available, ships in 3-6 days |
| 14 | 261348 | Ferrari Emergency Tool Kit - 261348 | $1,895.91 | Special order, ships in 7-14 days |
