Ferrari F8 Spider — [VEHICLE TRIM] - E.2 - LATERAL OUTER BODYSHELL (diagram 0098)

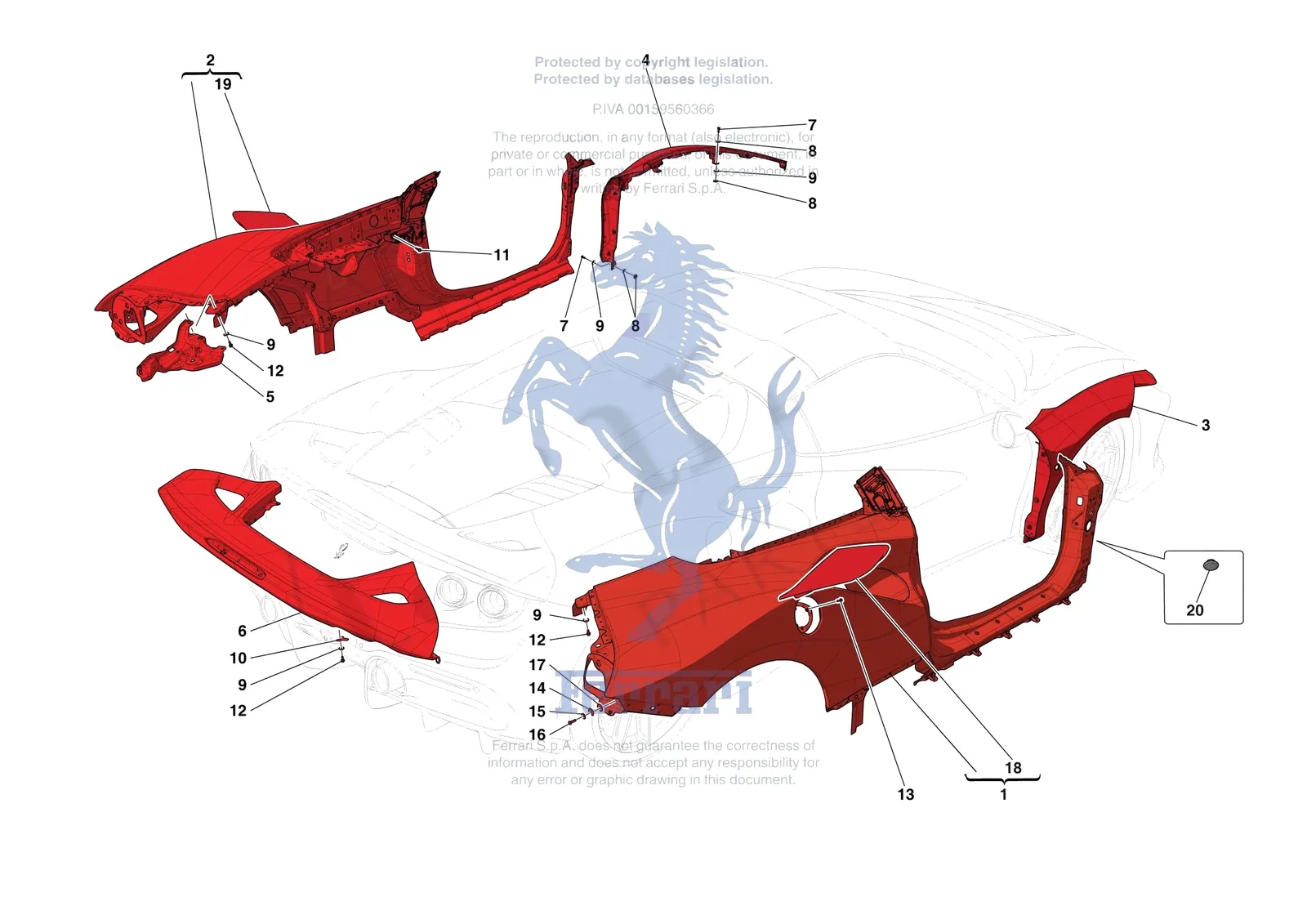

Exploded view of the [vehicle trim] - e.2 - lateral outer bodyshell on the Ferrari F8 Spider, with 36 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Spider [VEHICLE TRIM] - E.2 - LATERAL OUTER BODYSHELL exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0098.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 900885 | Ferrari Adjustment Shim - 900885 | Superseded | Order 87583800 instead | |
| 900889 | Ferrari Adjustment Shim - 900889 | Superseded | Order 87583700 instead | |
| 10902426 | Ferrari Bolt - 10902426 | Superseded | Order 10902424 instead | |
| 10902421 | Ferrari Bolt M6 - 10902421 | $0.25 | Available, ships in 3-6 days | |
| 921747 | Ferrari Spess.Curvo Di Regolaz.A For - 921747 | Superseded | Order 87583800 instead | |
| 921748 | Ferrari Spess.Curvo Di Regolaz.A For - 921748 | $12.29 | Special order, ships in 7-14 days | |
| 12643707 | Ferrari Washer - 12643707 | Superseded | Order 12643778 instead | |
| 12643777 | Ferrari Washer - 12643777 | Superseded | Order 12643778 instead | |
| 1 | 985911569 | Ferrari RH Flank - 985911569 | $28,087.18 | Contact us to order |
| 1 | 985919029 | Ferrari RH Flank - 985919029 | $29,581.92 | Contact us to order |
| 2 | 985911567 | Ferrari LH Flank - 985911567 | $28,087.18 | Contact us to order |
| 2 | 985919027 | Ferrari LH Flank - 985919027 | $29,581.92 | Contact us to order |
| 3 | 985852654 | Ferrari Front RH Fender - 985852654 | $10,568.17 | Contact us to order |
| 3 | 985866159 | Ferrari Front RH Fender - 985866159 | $7,506.10 | Contact us to order |
| 4 | 985852648 | Ferrari Front LH Fender - 985852648 | $10,568.17 | Contact us to order |
| 4 | 985866156 | Ferrari Front LH Fender - 985866156 | $7,506.10 | Contact us to order |
| 5 | 985911935 | Ferrari Compl. LH Side Connection Ex - 985911935 | $443.17 | Special order, ships in 7-14 days |
| 5 | 985911932 | Ferrari Compl. RH Side Connection Ex - 985911932 | $443.17 | Special order, ships in 7-14 days |
| 6 | 940592 | Ferrari Compl. Rear Spoiler - 940592 | $10,737.79 | Contact us to order |
| 7 | 10902424 | Ferrari Bolt M6 x 20 - 10902424 | $0.27 | Available, ships in 3-6 days |
| 8 | 68040000 | Ferrari Washer 6X20x2 - 68040000 | $0.27 | Available, ships in 3-6 days |
| 9 | 12647724 | Ferrari Washer - 12647724 | $0.31 | Available, ships in 3-6 days |
| 10 | 87583800 | Ferrari Adjuster Shim 1.0mm - 87583800 | $3.68 | Special order, ships in 7-14 days |
| 10 | 87583700 | Ferrari Fork Adjuster Shim - 87583700 | $3.91 | Special order, ships in 7-14 days |
| 11 | 16286224 | Ferrari Screw M6x25 - 16286224 | $4.77 | Special order, ships in 7-14 days |
| 12 | 16286121 | Ferrari Screw M6 x 20 - 16286121 | $1.23 | Available, ships in 3-6 days |
| 13 | 10977621 | Ferrari Bolt - 10977621 | Superseded | Order 10977624 instead |
| 13 | 10977624 | Ferrari Screw TE M5 x 12 - 10977624 | $0.12 | Available, ships in 3-6 days |
| 14 | 298365 | Ferrari Split Washer - 298365 | $14.62 | Special order, ships in 7-14 days |
| 15 | 10523478 | Ferrari Flat Washer D. 6.15-18 X - 10523478 | $0.92 | Special order, ships in 7-14 days |
| 15 | 12643778 | Ferrari Washer 6-18 x 1.5 - 12643778 | $0.54 | Available, ships in 3-6 days |
| 16 | 10902487 | Ferrari Screw - 10902487 | $1.80 | Special order, ships in 7-14 days |
| 17 | 308416 | Ferrari Split Washer - 308416 | $5.88 | Special order, ships in 7-14 days |
| 18 | 862245 | Ferrari Compl. RH Lateral Wing - 862245 | $577.55 | Available, ships in 3-6 days |
| 19 | 862230 | Ferrari Compl. LH Lateral Wing - 862230 | $577.55 | Available, ships in 3-6 days |
| 20 | 85492800 | Ferrari Acoustic Closure Cap 28 x 22 - 85492800 | $3.41 | Special order, ships in 7-14 days |
