Ferrari F8 Spider — [VEHICLE TRIM] - E.3 - ROOF PANEL (diagram 0099)
Exploded view of the [vehicle trim] - e.3 - roof panel on the Ferrari F8 Spider, with 9 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

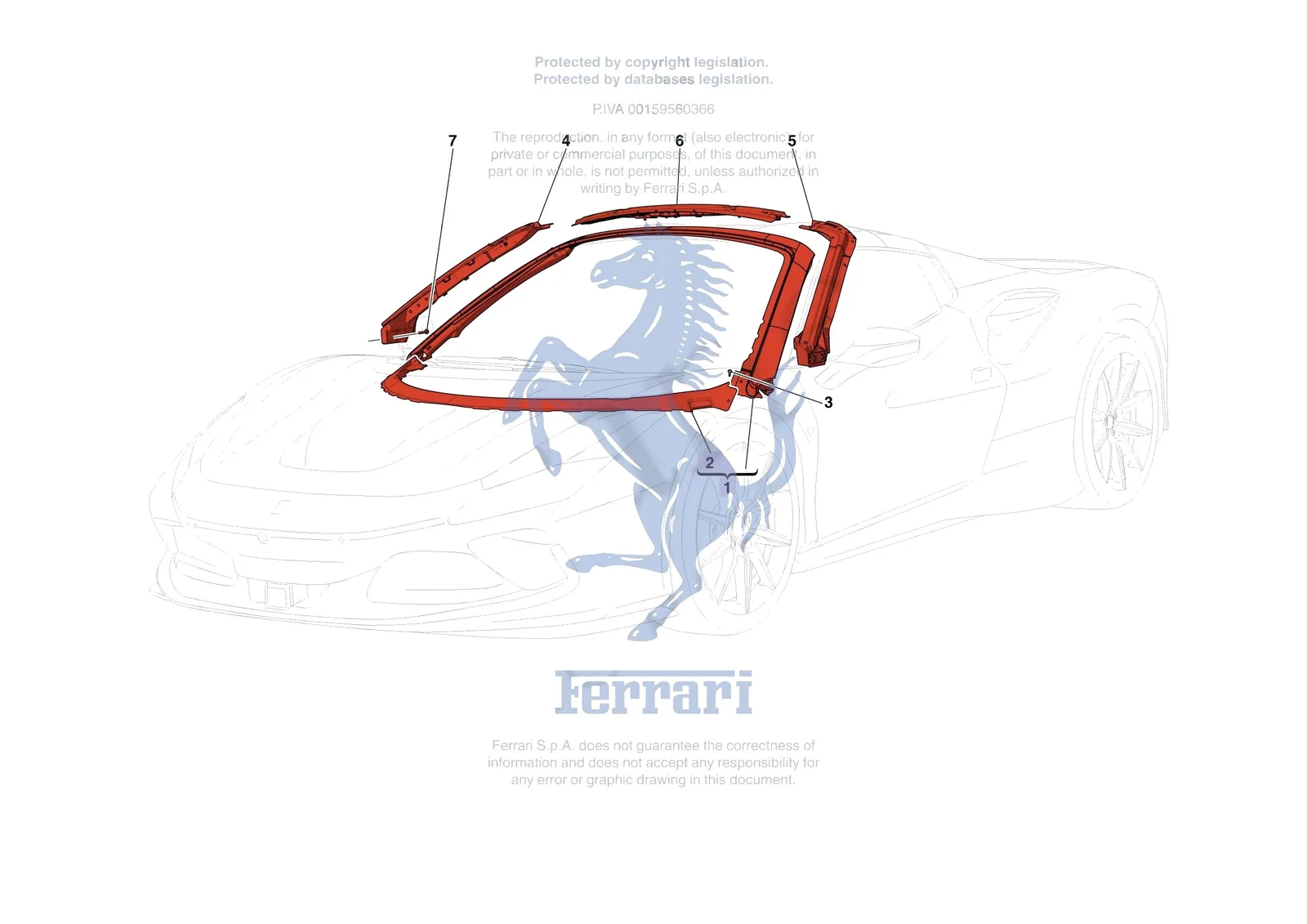

![Ferrari F8 Spider [VEHICLE TRIM] - E.3 - ROOF PANEL exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0099.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 264617 | Ferrari LH Upper Pillar - 264617 | Superseded | Order 985264617 instead | |
| 264618 | Ferrari RH Upper Pillar - 264618 | Superseded | Order 985264618 instead | |
| 1 | 87640911 | Ferrari Windscreen Surround - 87640911 | $4,743.93 | Special order, ships in 7-14 days |
| 2 | 87286711 | Ferrari Windscreen Cross-Member Upper Cover - 87286711 | $4,131.90 | Special order, ships in 7-14 days |
| 3 | 14639791 | Ferrari Rivet D. 6.4X 14.1 - 14639791 | $2.59 | Special order, ships in 7-14 days |
| 4 | 985264618 | Ferrari RH Upper Pillar - 985264618 | $2,703.78 | Special order, ships in 7-14 days |
| 5 | 985264617 | Ferrari LH Upper Pillar - 985264617 | $2,703.78 | Special order, ships in 7-14 days |
| 6 | 985907236 | Ferrari Compl. Upper Windscreen Cros - 985907236 | $984.88 | Special order, ships in 7-14 days |
| 7 | 18753234 | Ferrari Screw 8x55 - 18753234 | $4.12 | Special order, ships in 7-14 days |
