Ferrari F8 Spider — [VEHICLE TRIM] - E.5 - FRONT SUBSTRUCTURE (diagram 0101)

Exploded view of the [vehicle trim] - e.5 - front substructure on the Ferrari F8 Spider, with 60 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

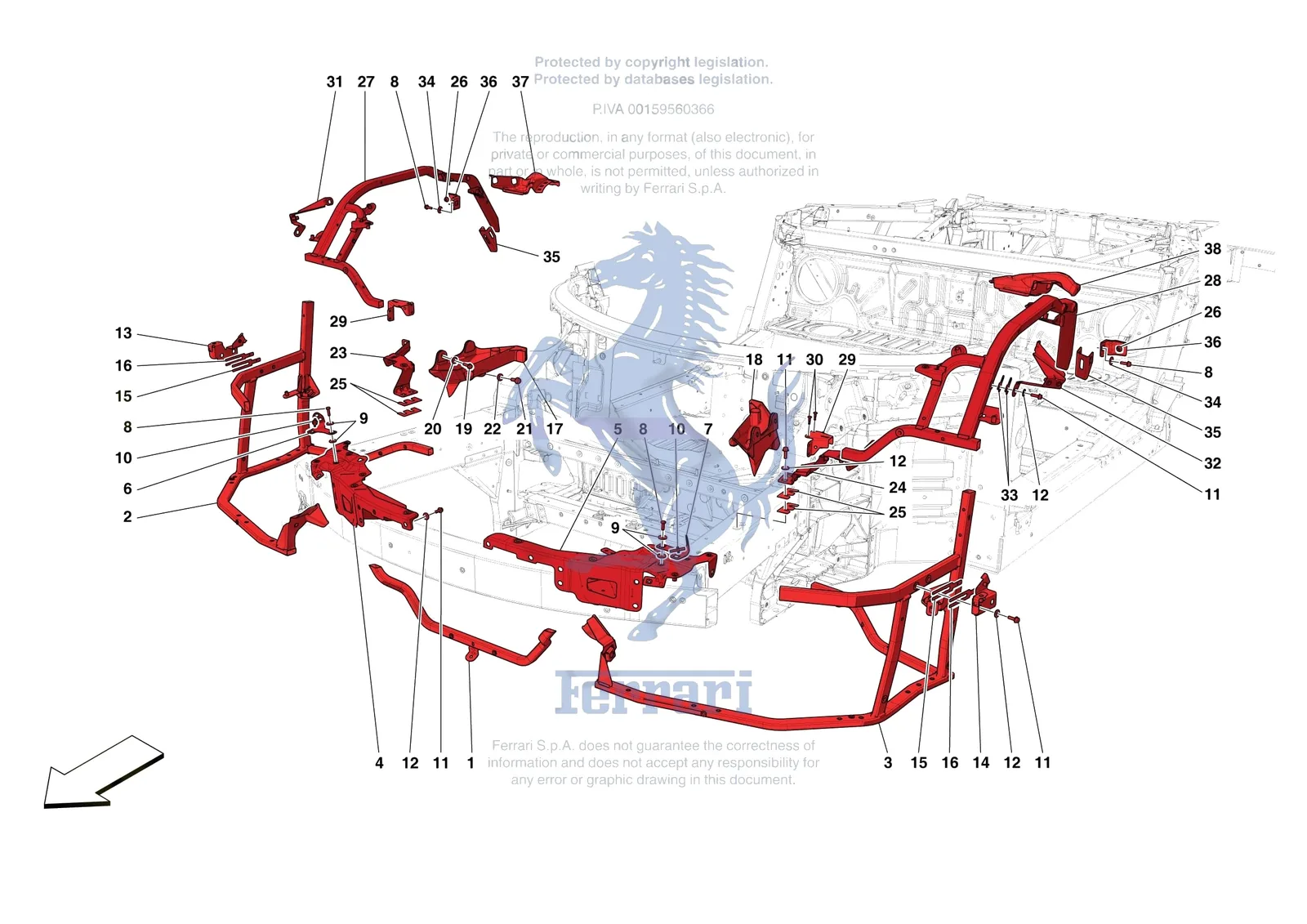

Ferrari F8 Spider [VEHICLE TRIM] - E.5 - FRONT SUBSTRUCTURE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
900885Ferrari Adjustment Shim - 900885SupersededOrder 87583800 instead
900889Ferrari Adjustment Shim - 900889SupersededOrder 87583700 instead
10413870Ferrari Belleville Washer - 10413870SupersededOrder 12646724 instead
10902426Ferrari Bolt - 10902426SupersededOrder 10902424 instead
10902421Ferrari Bolt M6 - 10902421$0.25Available, ships in 3-6 days
876330Ferrari LH Fender Bracket Extension - 876330$29.34Special order, ships in 7-14 days
86674700Ferrari LH Lower Fastener Bracket For Front Bumper - 86674700SupersededOrder 86674711 instead
876329Ferrari RH Fender Bracket Extension - 876329$29.34Special order, ships in 7-14 days
87295100Ferrari RH Underwindscreen Trim Box Element - 87295100SupersededOrder 87295111 instead
80415900Ferrari Screw - 80415900$32.60Available, ships in 3-6 days
921747Ferrari Spess.Curvo Di Regolaz.A For - 921747SupersededOrder 87583800 instead
921748Ferrari Spess.Curvo Di Regolaz.A For - 921748$12.29Special order, ships in 7-14 days
86766800Ferrari Trellis Mounting Bracket - 86766800SupersededOrder 86766811 instead
12601570Ferrari Washer - 12601570SupersededOrder 12646724 instead
12601571Ferrari Washer - 12601571SupersededOrder 12646724 instead
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12646721Ferrari Washer - 12646721SupersededOrder 12646724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
189295511Ferrari Compl. Front Bumper Carrier - 89295511$517.04Special order, ships in 7-14 days
2985854837Ferrari Complete RH Front Subframe - 985854837$1,501.96Special order, ships in 7-14 days
3985854846Ferrari Compl. LH Front Subframe - 985854846$1,501.96Special order, ships in 7-14 days
4985854845Ferrari RH Fender Bracket Extension - 985854845$787.90Special order, ships in 7-14 days
5985854860Ferrari LH Fender Bracket Extension - 985854860$787.90Special order, ships in 7-14 days
6936101Ferrari RH Fender Bracket Extension - 936101$34.44Special order, ships in 7-14 days
7936102Ferrari LH Fender Bracket Extension - 936102$34.44Special order, ships in 7-14 days
810902424Ferrari Bolt M6 x 20 - 10902424$0.27Available, ships in 3-6 days
968040000Ferrari Washer 6X20x2 - 68040000$0.27Available, ships in 3-6 days
10878810Ferrari Screw - 878810$41.55Special order, ships in 7-14 days
1116286121Ferrari Screw M6 x 20 - 16286121$1.23Available, ships in 3-6 days
1212643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
1212643724Ferrari/Maserati Washer - 12643724$0.20In stock
13985854823Ferrari Compl. RH Headlight Fastener - 985854823$142.79Special order, ships in 7-14 days
14985854824Ferrari Compl. LH Headlight Fastener - 985854824$142.79Available, ships in 3-6 days
1587549700Ferrari Shim - 87549700$6.96Special order, ships in 7-14 days
1687549900Ferrari Shim - 87549900$6.98Special order, ships in 7-14 days
1789244811Ferrari RH BRACE - 89244811$2,040.14Special order, ships in 7-14 days
1889244711Ferrari LH Brace - 89244711$2,040.14Special order, ships in 7-14 days
1916286224Ferrari Screw M6x25 - 16286224$4.77Special order, ships in 7-14 days
2010523424Ferrari Washer D 6.15-18x2 - 10523424$0.92Available, ships in 3-6 days
2111617624Ferrari Screw - 11617624SupersededOrder 16287224 instead
2116287224Ferrari Screw M8x25 - 16287224$0.82Available, ships in 3-6 days
2212646724Ferrari Washer 8.45-20x2 - 12646724$0.19Available, ships in 3-6 days
23854821Ferrari Compl. Inner Fastener Bracket for RH Headlight - 854821$128.01Special order, ships in 7-14 days
24854841Ferrari Compl. Inner Fastener Bracket for LH Headlight - 854841$128.01Available, ships in 3-6 days
2580709900Ferrari Spacer 1.0mm - 80709900$8.11Special order, ships in 7-14 days
2580712500Ferrari Spacer 1.5mm - 80712500$9.33Special order, ships in 7-14 days
2613046114Ferrari Flanged Nut - 13046114$0.31Available, ships in 3-6 days
27985854843Ferrari Compl. RH Fender Mounting - 985854843$1,181.86Special order, ships in 7-14 days
28985854850Ferrari Compl. LH Fender Mounting - 985854850$1,157.24Special order, ships in 7-14 days
2986766811Ferrari Trellis Mounting Bracket - 86766811$216.66Special order, ships in 7-14 days
3014639591Ferrari Rivet - 14639591$3.03Available, ships in 3-6 days
31985854855Ferrari Compl. External RH Fender Fastener Bracket - 985854855$1,157.24Special order, ships in 7-14 days
32985854833Ferrari Compl. External LH Fender Fastener Bracket - 985854833$1,157.24Special order, ships in 7-14 days
3387583800Ferrari Adjuster Shim 1.0mm - 87583800$3.68Special order, ships in 7-14 days
3387583700Ferrari Fork Adjuster Shim - 87583700$3.91Special order, ships in 7-14 days
3412647724Ferrari Washer - 12647724$0.31Available, ships in 3-6 days
3585455811Ferrari Bracket For Adjuster - 85455811$204.34Available, ships in 3-6 days
3686674711Ferrari LH Lower Fastener Bracket For Front Bumper - 86674711$204.34Special order, ships in 7-14 days
3787295111Ferrari RH Underwindscreen Trim Box Element - 87295111$418.56Special order, ships in 7-14 days
3887295011Ferrari LH Underwindscreen Trim Box Element - 87295011$418.56Available, ships in 3-6 days
