Ferrari F8 Spider — [VEHICLE TRIM] - E.10 - REAR LID SUBSTRUCTURE (diagram 0106)

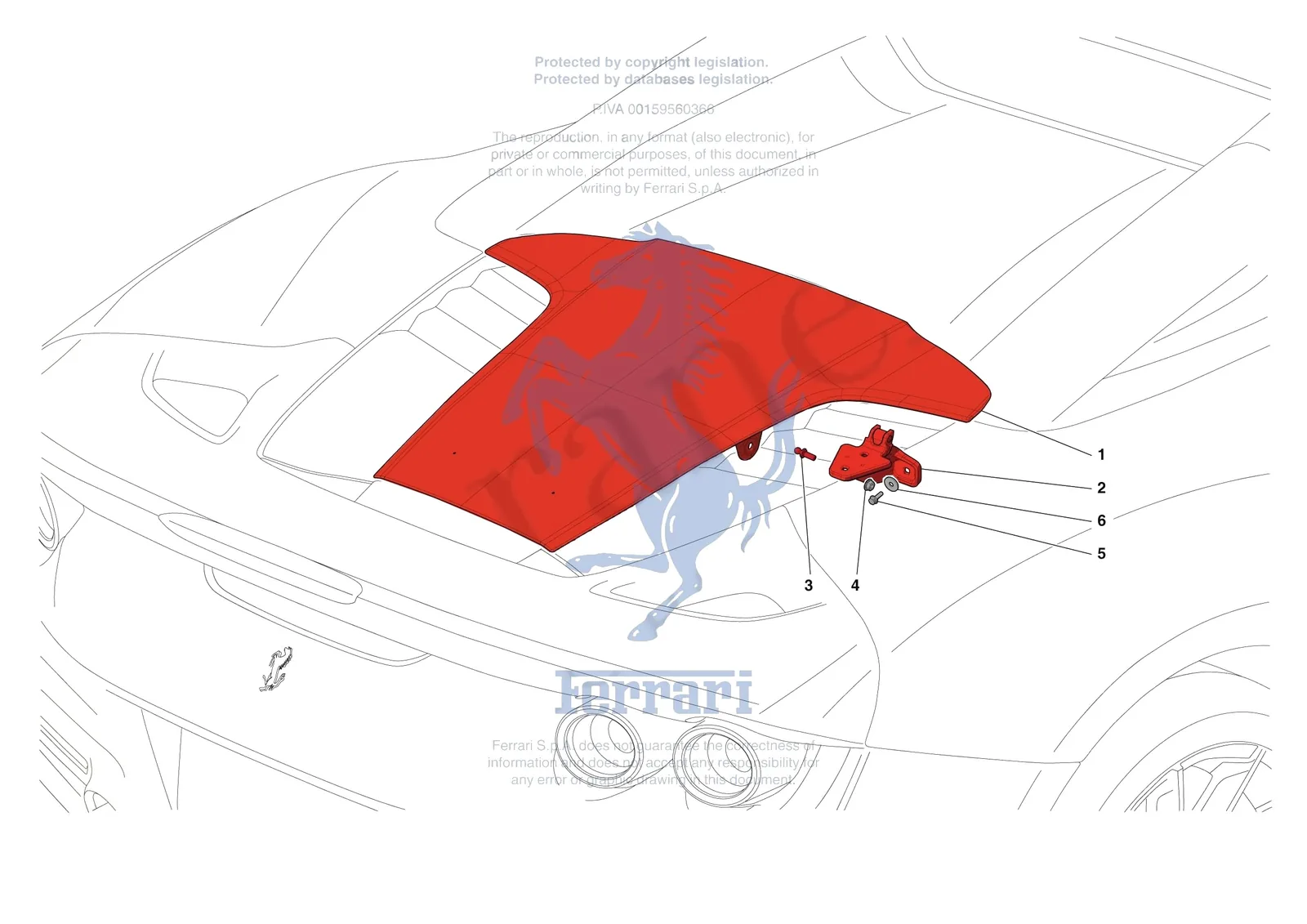

Exploded view of the [vehicle trim] - e.10 - rear lid substructure on the Ferrari F8 Spider, with 8 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Spider [VEHICLE TRIM] - E.10 - REAR LID SUBSTRUCTURE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0106.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 12647001 | Ferrari Washer - 12647001 | Superseded | Order 12647021 instead | |
| 1 | 985905453 | Ferrari Compl. Rear Lid - 985905453 | $7,966.76 | Contact us to order |
| 1 | 985919098 | Ferrari Compl. Rear Lid - 985919098 | $7,230.96 | Contact us to order |
| 2 | 87624800 | Ferrari Engine Compartment Lid Hinge - 87624800 | $443.17 | Special order, ships in 7-14 days |
| 3 | 67251200 | Ferrari Pin - 67251200 | $4.56 | Special order, ships in 7-14 days |
| 4 | 13046224 | Ferrari Nut - 13046224 | $0.73 | Available, ships in 3-6 days |
| 5 | 16286121 | Ferrari Screw M6 x 20 - 16286121 | $1.23 | Available, ships in 3-6 days |
| 6 | 12647021 | Ferrari Washer - 12647021 | $0.57 | Special order, ships in 7-14 days |
