Ferrari F8 Spider — [VEHICLE TRIM] - E.12 - ROLLBAR (diagram 0108)

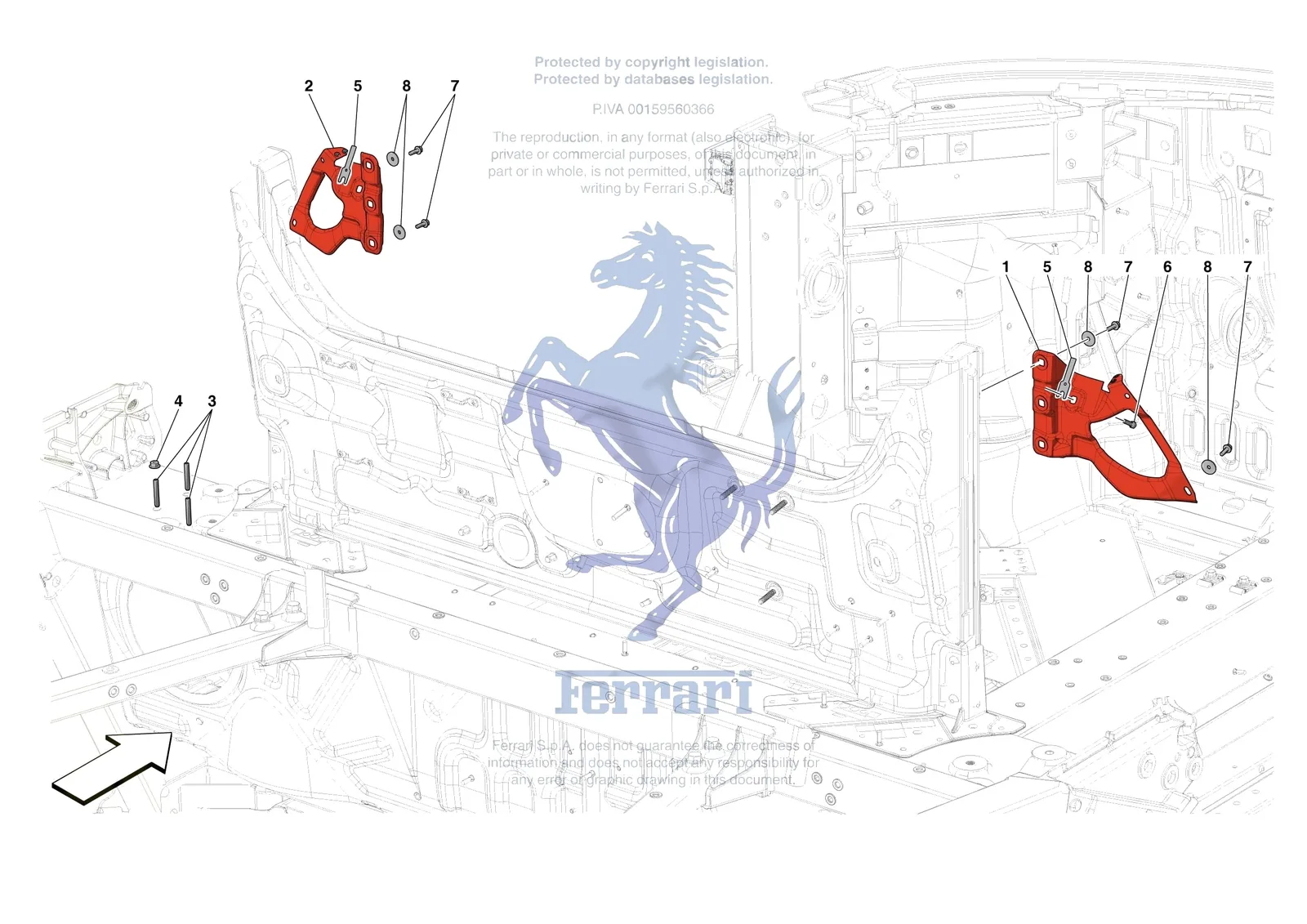

Exploded view of the [vehicle trim] - e.12 - rollbar on the Ferrari F8 Spider, with 13 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Spider [VEHICLE TRIM] - E.12 - ROLLBAR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0108.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 12640606 | Ferrari Washer - 12640606 | Superseded | Order 12640678 instead | |
| 12640608 | Ferrari Washer - 12640608 | Superseded | Order 12640678 instead | |
| 12640677 | Ferrari Washer - 12640677 | Superseded | Order 12640678 instead | |
| 1 | 83959000 | Ferrari RH Pillar Connector Reinforcement - 83959000 | $78.76 | Special order, ships in 7-14 days |
| 2 | 83959100 | Ferrari LH Pillar Connector Reinforcement - 83959100 | $78.76 | Special order, ships in 7-14 days |
| 3 | 13791321 | Ferrari Screw - 13791321 | $1.92 | Special order, ships in 7-14 days |
| 4 | 13046224 | Ferrari Nut - 13046224 | $0.73 | Available, ships in 3-6 days |
| 5 | 84446700 | Ferrari Shim 0.5mm - 84446700 | $27.06 | Special order, ships in 7-14 days |
| 5 | 84615100 | Ferrari Shim 1.0mm - 84615100 | $27.06 | Special order, ships in 7-14 days |
| 5 | 84615400 | Ferrari Shim 1.5mm - 84615400 | Price on request | Contact us for price and availability |
| 6 | 205370 | Ferrari Screw M6 x 25 - 205370 | $0.96 | Special order, ships in 7-14 days |
| 7 | 84487600 | Ferrari Screw - 84487600 | $1.34 | Special order, ships in 7-14 days |
| 8 | 12640678 | Ferrari Washer 6.15x25x2 - 12640678 | $3.47 | Available, ships in 3-6 days |
