Ferrari F8 Spider — [VEHICLE TRIM] - E.13.04 - ROOF - HYDRAULICS (diagram 0112)

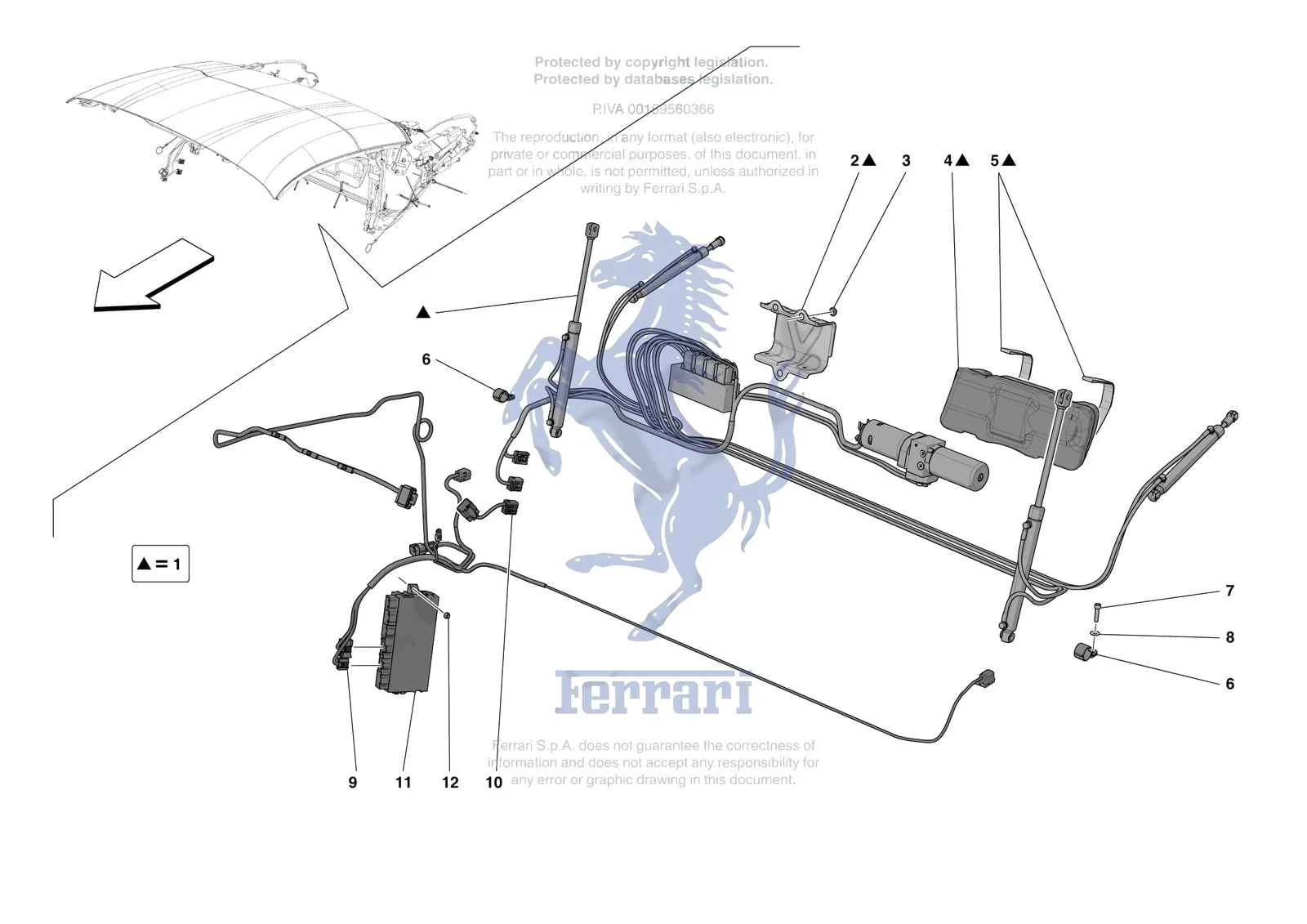

Exploded view of the [vehicle trim] - e.13.04 - roof - hydraulics on the Ferrari F8 Spider, with 18 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Spider [VEHICLE TRIM] - E.13.04 - ROOF - HYDRAULICS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0112.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 13046011 | Ferrari Flanged Nut - 13046011 | $0.73 | Available, ships in 3-6 days | |
| 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead | |
| 1 | 903686 | Ferrari Complete Hydraulic System Kit - 903686 | $18,044.06 | Special order, ships in 7-14 days |
| 1 | 84603300 | Ferrari Hydraulic System Kit Complete - 84603300 | $16,039.87 | Special order, ships in 7-14 days |
| 3 | 13832101 | Ferrari Flanged Nut M6 - 13832101 | $0.27 | Available, ships in 3-6 days |
| 3 | 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days |
| 4 | 84697900 | Ferrari Hydraulic System Soundproofing Kit - 84697900 | $664.78 | Special order, ships in 7-14 days |
| 5 | 84603200 | Ferrari Hydraulic System Fastener Kit - 84603200 | $115.54 | Special order, ships in 7-14 days |
| 6 | 244223 | Ferrari Clip - 244223 | $8.93 | Special order, ships in 7-14 days |
| 7 | 14305477 | Ferrari Screw - 14305477 | $2.01 | Special order, ships in 7-14 days |
| 8 | 12644425 | Ferrari Washer - 12644425 | $0.52 | Special order, ships in 7-14 days |
| 9 | 805141 | Ferrari Roof Wiring Harness - 805141 | $837.14 | Special order, ships in 7-14 days |
| 9 | 903676 | Ferrari Roof Wiring Harness - 903676 | $1,032.68 | Special order, ships in 7-14 days |
| 9 | 83979000 | Ferrari Wire Harnesses - 83979000 | $714.03 | Special order, ships in 7-14 days |
| 10 | 939844 | Ferrari Adapter Cable For Hydraulic - 939844 | $566.30 | Special order, ships in 7-14 days |
| 11 | 851160 | Ferrari Roof Ecu - 851160 | $1,846.67 | Special order, ships in 7-14 days |
| 11 | 892985 | Ferrari Roof ECU F142M F8 Spider - 892985 | $1,698.93 | Special order, ships in 7-14 days |
| 12 | 14040514 | Ferrari Flanged Nut - 14040514 | Superseded | Order 13046011 instead |
