Ferrari F8 Spider — [VEHICLE TRIM] - E.17 - FRONT WHEELHOUSE (diagram 0116)

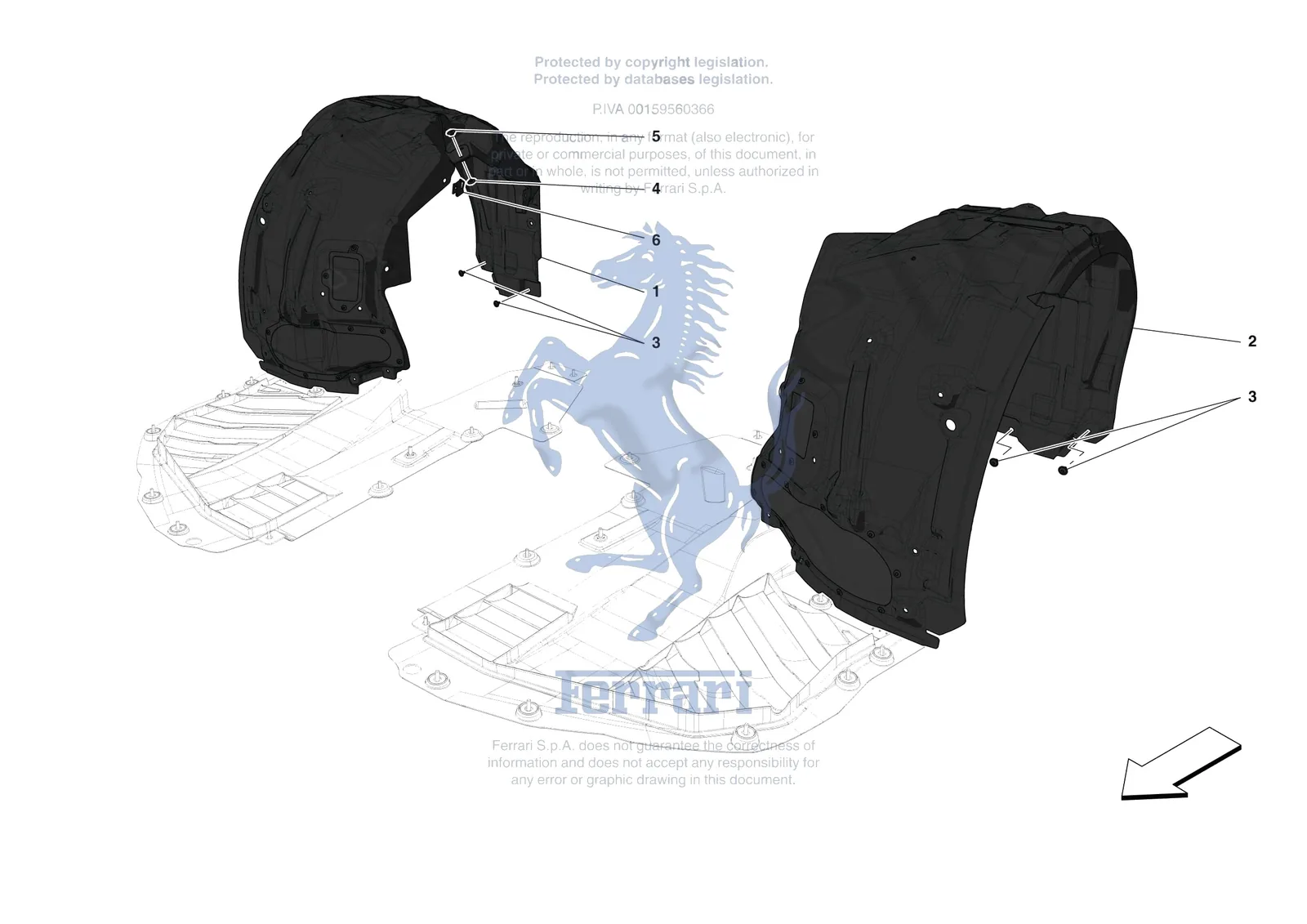

Exploded view of the [vehicle trim] - e.17 - front wheelhouse on the Ferrari F8 Spider, with 8 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Spider [VEHICLE TRIM] - E.17 - FRONT WHEELHOUSE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0116.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 879212 | Ferrari RH Front Wheel Arch - USA - 879212 | $853.55 | Special order, ships in 7-14 days |
| 1 | 862050 | Ferrari RH Front WheeLHouse - 862050 | $853.55 | Special order, ships in 7-14 days |
| 2 | 862017 | Ferrari Left Front Wheel Arch - 862017 | $853.55 | Special order, ships in 7-14 days |
| 2 | 879210 | Ferrari LH Front Wheel Arch - USA - 879210 | $848.53 | Special order, ships in 7-14 days |
| 3 | 82115900 | Ferrari Screw M6 x 14 With Washer - 82115900 | $1.23 | Available, ships in 3-6 days |
| 4 | 84247300 | Ferrari Male Clip - 84247300 | $2.82 | Available, ships in 3-6 days |
| 5 | 84247400 | Ferrari Female Clip - 84247400 | $2.59 | Available, ships in 3-6 days |
| 6 | 14189071 | Ferrari M6 x 1Screw clip - 14189071 | $1.36 | Available, ships in 3-6 days |
