Ferrari F8 Spider — [VEHICLE TRIM] - E.24 - REAR AIR INTAKES (diagram 0123)

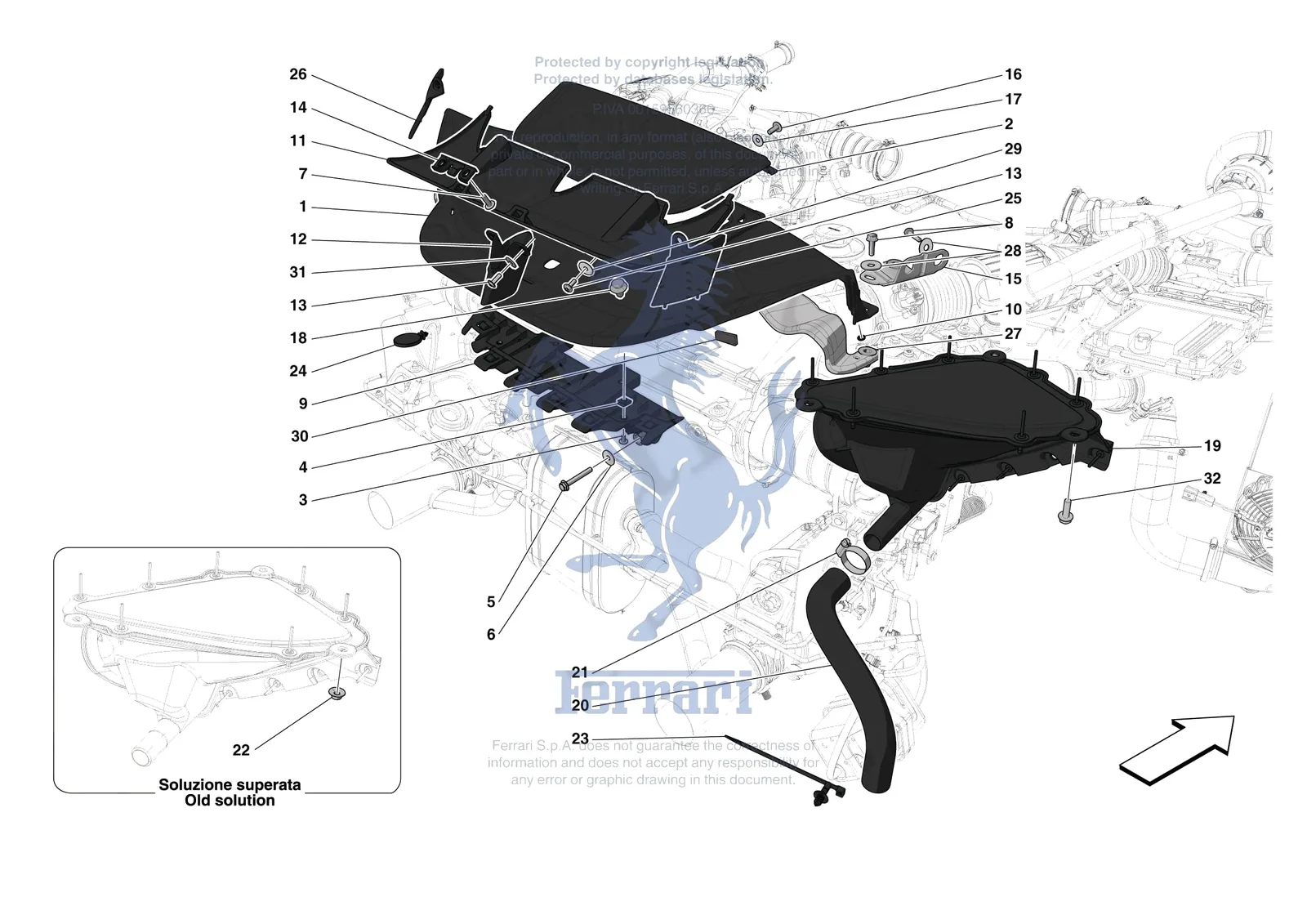

Exploded view of the [vehicle trim] - e.24 - rear air intakes on the Ferrari F8 Spider, with 51 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Spider [VEHICLE TRIM] - E.24 - REAR AIR INTAKES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0123.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 306631 | Ferrari Clip - 306631 | $7.59 | Special order, ships in 7-14 days | |
| 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead | |
| 73607886 | Ferrari Rear Spoiler Inspection Cover - 73607886 | $807.74 | Special order, ships in 7-14 days | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 12638108 | Ferrari Washer - 12638108 | Superseded | Order 12638178 instead | |
| 12638177 | Ferrari Washer - 12638177 | Superseded | Order 12638178 instead | |
| 12643707 | Ferrari Washer - 12643707 | Superseded | Order 12643778 instead | |
| 12643777 | Ferrari Washer - 12643777 | Superseded | Order 12643778 instead | |
| 61276300 | Ferrari Washer - 61276300 | Superseded | Order 12638178 instead | |
| 1 | 958436 | Ferrari Piatto Inf.Cond.Spoiler Post - 958436 | $7,283.59 | Special order, ships in 7-14 days |
| 1 | 70006757 | Ferrari Rear Spoiler Duct Lower Plat - 70006757 | $29,134.37 | Contact us to order |
| 1 | 897470 | Ferrari Rear Spoiler Duct Lower Plat - 897470 | $1,649.69 | Special order, ships in 7-14 days |
| 2 | 985906723 | Ferrari Piatto Sup.Condotto Spoiler - 985906723 | $1,846.67 | Special order, ships in 7-14 days |
| 2 | 985977276 | Ferrari Rear Spoiler Duct Upper Plat - 985977276 | $1,649.69 | Special order, ships in 7-14 days |
| 3 | 85692000 | Ferrari SCREW - 85692000 | $0.65 | Available, ships in 3-6 days |
| 4 | 14370874 | Ferrari Bracket - 14370874 | $1.17 | Special order, ships in 7-14 days |
| 5 | 13832611 | Ferrari Screw 6X45 - 13832611 | $1.94 | Available, ships in 3-6 days |
| 6 | 12647778 | Ferrari Cup Washer - 12647778 | $0.82 | Available, ships in 3-6 days |
| 7 | 85833800 | Ferrari Screw M5 x 14 TBFTX - 85833800 | $0.90 | Available, ships in 3-6 days |
| 8 | 16286127 | Ferrari Screw 6x20 - 16286127 | $0.82 | Available, ships in 3-6 days |
| 8 | 11626124 | Ferrari Screw 6x25 - 11626124 | Superseded | Order 11612826 instead |
| 8 | 11612826 | Ferrari Screw M6 x 25 - 11612826 | $6.75 | Available, ships in 3-6 days |
| 9 | 908888 | Ferrari Complete Centre Bracket - Rear Spoiler Duct - 908888 | $344.69 | Special order, ships in 7-14 days |
| 10 | 88074800 | Ferrari Emblem Mounting Clip - 88074800 | $1.10 | In stock |
| 11 | 862385 | Ferrari Rear Spoiler Inspection Cover - 862385 | Superseded | Order 73607886 instead |
| 12 | 906719 | Ferrari Central Rear Spoiler Partiti - 906719 | $179.73 | Special order, ships in 7-14 days |
| 12 | 778355 | Ferrari Setto Centrale Spoiler Poste - 778355 | $179.73 | Special order, ships in 7-14 days |
| 13 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 14 | 867200 | Ferrari Bracket Coperchio Ispez. Spo - 867200 | $17.71 | Special order, ships in 7-14 days |
| 15 | 917966 | Ferrari Compl. LH Spoiler Duct Mount - 917966 | $51.67 | Special order, ships in 7-14 days |
| 15 | 917963 | Ferrari Compl. RH Spoiler Duct Mount - 917963 | $51.67 | Special order, ships in 7-14 days |
| 16 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 17 | 12638178 | Ferrari Washer 5.45-14x1 - 12638178 | $0.13 | Available, ships in 3-6 days |
| 18 | 82672700 | Ferrari Fixing Clip - 82672700 | $1.67 | Available, ships in 3-6 days |
| 19 | 912592 | Ferrari Compl. LH Engine Intake Duct - 912592 | $443.17 | Special order, ships in 7-14 days |
| 19 | 912590 | Ferrari Compl. RH Engine Intake Duct - 912590 | $443.17 | Special order, ships in 7-14 days |
| 20 | 815003 | Ferrari Corrugated Pipe - 815003 | $4.91 | Special order, ships in 7-14 days |
| 21 | 178053 | Ferrari Clip - 178053 | $2.64 | In stock |
| 21 | 296779 | Ferrari Hose Clamp 20 to 32mm - 296779 | Superseded | Order 178053 instead |
| 22 | 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days |
| 23 | 306756 | Ferrari Clip - 306756 | $1.59 | Special order, ships in 7-14 days |
| 24 | 217854 | Ferrari CLAMP - 217854 | $0.52 | Available, ships in 3-6 days |
| 25 | 906717 | Ferrari RH Lateral Rear Spoiler Part - 906717 | $164.95 | Special order, ships in 7-14 days |
| 25 | 778354 | Ferrari Setto Lat.Dx Spoiler Posteri - 778354 | $164.95 | Special order, ships in 7-14 days |
| 26 | 906721 | Ferrari LH Lateral Rear Spoiler Part - 906721 | $164.95 | Special order, ships in 7-14 days |
| 26 | 778356 | Ferrari Setto Lat. Sx Spoiler Poster - 778356 | $164.95 | Special order, ships in 7-14 days |
| 27 | 922365 | Ferrari Compl. Spoiler Duct Lower Pl - 922365 | $226.49 | Special order, ships in 7-14 days |
| 28 | 12643778 | Ferrari Washer 6-18 x 1.5 - 12643778 | $0.54 | Available, ships in 3-6 days |
| 29 | 12644478 | Ferrari Washer D. 6.45 - 15 x 1 - 12644478 | Superseded | Order 85882600 instead |
| 30 | 985849 | Ferrari Rubber Pad For Spoiler Duct - 985849 | $328.27 | Special order, ships in 7-14 days |
| 32 | 81591700 | Ferrari Screw TE M6 x 18 with washer - 81591700 | $4.12 | Available, ships in 3-6 days |
