Ferrari F8 Spider — [VEHICLE TRIM] - E.32 - DOOR SEALS (diagram 0133)
Exploded view of the [vehicle trim] - e.32 - door seals on the Ferrari F8 Spider, with 26 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

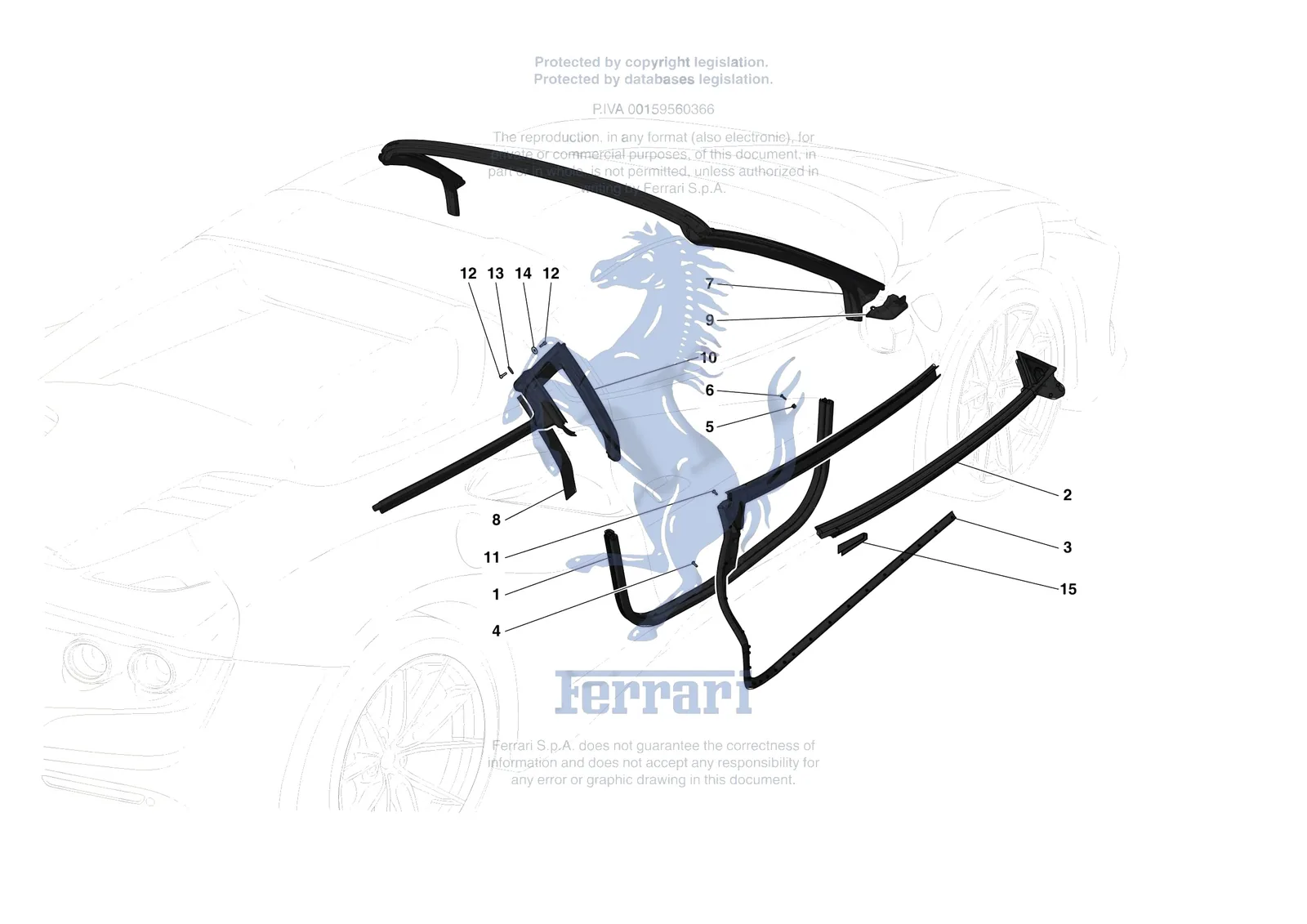

![Ferrari F8 Spider [VEHICLE TRIM] - E.32 - DOOR SEALS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0133.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 65841900 | Ferrari Gasket - 65841900 | $1.80 | Special order, ships in 7-14 days | |
| 67934100 | Ferrari Gasket - 67934100 | $2.13 | Special order, ships in 7-14 days | |
| 82243600 | Ferrari Lower Seal - 82243600 | Superseded | Order 83987400 instead | |
| 12647729 | Ferrari Washer 6.45-21X - 12647729 | $0.13 | Special order, ships in 7-14 days | |
| 1 | 83987400 | Ferrari Lower Seal - 83987400 | $243.74 | Special order, ships in 7-14 days |
| 2 | 86742800 | Ferrari LH Door Outer Perimeter Seal - 86742800 | $503.37 | Special order, ships in 7-14 days |
| 2 | 86742900 | Ferrari RH Door Outer Perimeter Seal - 86742900 | $503.37 | Special order, ships in 7-14 days |
| 3 | 86743000 | Ferrari LH Door Inner Perimeter Seal - 86743000 | $590.91 | Special order, ships in 7-14 days |
| 3 | 87627100 | Ferrari LH Door Inner Perimeter Seal - 87627100 | $766.01 | Special order, ships in 7-14 days |
| 3 | 86743100 | Ferrari RH Door Inner Perimeter Seal - 86743100 | $590.91 | Special order, ships in 7-14 days |
| 3 | 87627000 | Ferrari RH Door Inner Perimeter Seal - 87627000 | $766.01 | Special order, ships in 7-14 days |
| 4 | 63343400 | Ferrari Screw 4x15 - 63343400 | $5.02 | Available, ships in 3-6 days |
| 5 | 14115885 | Ferrari Fixing Block - 14115885 | $0.31 | Available, ships in 3-6 days |
| 6 | 15689801 | Ferrari Screw - 15689801 | $0.17 | Available, ships in 3-6 days |
| 6 | 15689809 | Ferrari Screw D. 4.2 x 19 TBFIC - 15689809 | $0.27 | Available, ships in 3-6 days |
| 7 | 959307 | Ferrari Windscreen Perimeter Seal - 959307 | $1,532.05 | Special order, ships in 7-14 days |
| 8 | 815292 | Ferrari Adhesive Strip - 815292 | $10.83 | Special order, ships in 7-14 days |
| 9 | 84456000 | Ferrari LH Door Cosmetic Seal - 84456000 | $59.07 | Special order, ships in 7-14 days |
| 9 | 84455900 | Ferrari RH Door Cosmetic Seal - 84455900 | $64.00 | Special order, ships in 7-14 days |
| 10 | 86805500 | Ferrari LH Door Perimeter Seal - 86805500 | $722.24 | Special order, ships in 7-14 days |
| 10 | 86805300 | Ferrari RH Door Perimeter Seal - 86805300 | $722.24 | Special order, ships in 7-14 days |
| 11 | 826584 | Ferrari Screw - 826584 | $1.49 | Available, ships in 3-6 days |
| 12 | 14304287 | Ferrari Screw 5x16 - 14304287 | $0.71 | Special order, ships in 7-14 days |
| 13 | 12624178 | Ferrari Washer D. 5.45 - 22 x 2 - 12624178 | $0.71 | Available, ships in 3-6 days |
| 14 | 12647727 | Ferrari Washer 6X21 - 12647727 | $0.12 | Special order, ships in 7-14 days |
| 15 | 83332100 | Ferrari Gasket - 83332100 | $3.91 | Special order, ships in 7-14 days |
