Ferrari F8 Spider — [VEHICLE TRIM] - E.34 - FRONT LID LOCK (diagram 0135)

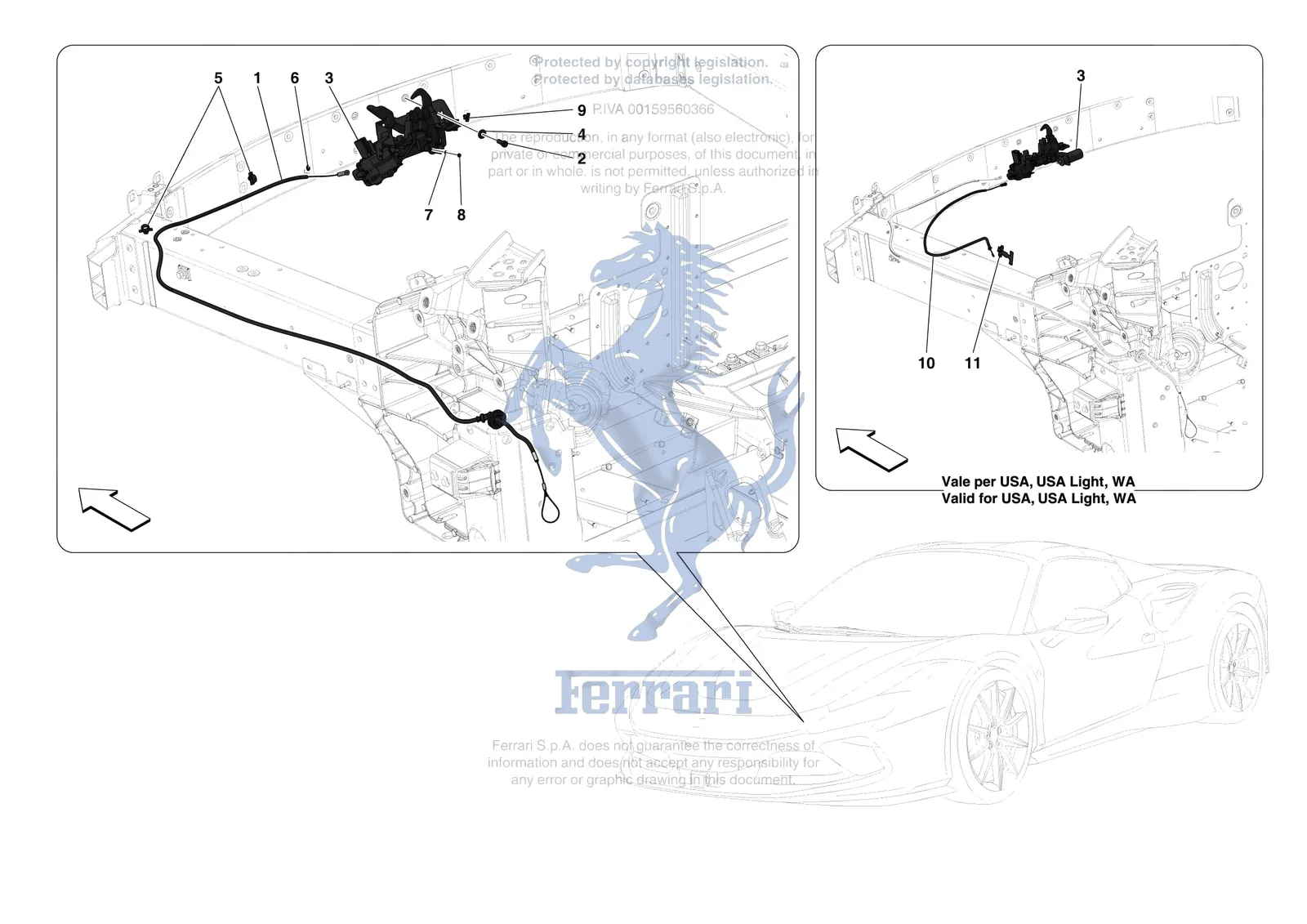

Exploded view of the [vehicle trim] - e.34 - front lid lock on the Ferrari F8 Spider, with 20 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Spider [VEHICLE TRIM] - E.34 - FRONT LID LOCK exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0135.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 12486580 | Ferrari Botton - 12486580 | Superseded | Order 204781 instead | |
| 11087675 | Ferrari Circlip - 11087675 | Superseded | Order 11087676 instead | |
| 175871 | Ferrari Clip - 175871 | Superseded | Order 204781 instead | |
| 248061 | Ferrari Clip - 248061 | $4.12 | Available, ships in 3-6 days | |
| 323365 | Ferrari Connector Fastener Clip - 323365 | Superseded | Order 204781 instead | |
| 20035903 | Ferrari Door Lock Circlips - 20035903 | Superseded | Order 11087676 instead | |
| 81509300 | Ferrari Front Bonnet Lock - 81509300 | Superseded | Order 83679100 instead | |
| 83172400 | Ferrari Lid Lock Complete - 83172400 | Superseded | Order 83678900 instead | |
| 1 | 750805 | Ferrari Front Lid Lock Release Bowde - 750805 | $118.16 | Special order, ships in 7-14 days |
| 2 | 13027026 | Ferrari Screw M6 x 16 TCEI - 13027026 | $2.01 | Available, ships in 3-6 days |
| 3 | 83678900 | Ferrari Bonnet Lock Complete - 83678900 | $935.64 | Special order, ships in 7-14 days |
| 3 | 83679100 | Ferrari Lid Lock Complete - 83679100 | $787.90 | Special order, ships in 7-14 days |
| 4 | 11194674 | Ferrari Washer - 11194674 | $0.92 | Available, ships in 3-6 days |
| 5 | 14569480 | Ferrari Clip 10x3.8 Black - 14569480 | $0.54 | Available, ships in 3-6 days |
| 6 | 11087676 | Ferrari Circlip - 11087676 | $0.27 | Available, ships in 3-6 days |
| 7 | 11087476 | Ferrari Circlip - 11087476 | $11.35 | Available, ships in 3-6 days |
| 8 | 14496101 | Ferrari Washer - 14496101 | $0.12 | Available, ships in 3-6 days |
| 9 | 204781 | Ferrari Clip - 204781 | $1.67 | Available, ships in 3-6 days |
| 10 | 836020 | Ferrari Child Safety Release Bowden - 836020 | $88.61 | Special order, ships in 7-14 days |
| 11 | 67053000 | Ferrari Boot Safety Handle - 67053000 | $66.35 | Special order, ships in 7-14 days |
