Ferrari F8 Spider — [VEHICLE TRIM] - E.36 - REAR LID TRIM (diagram 0137)

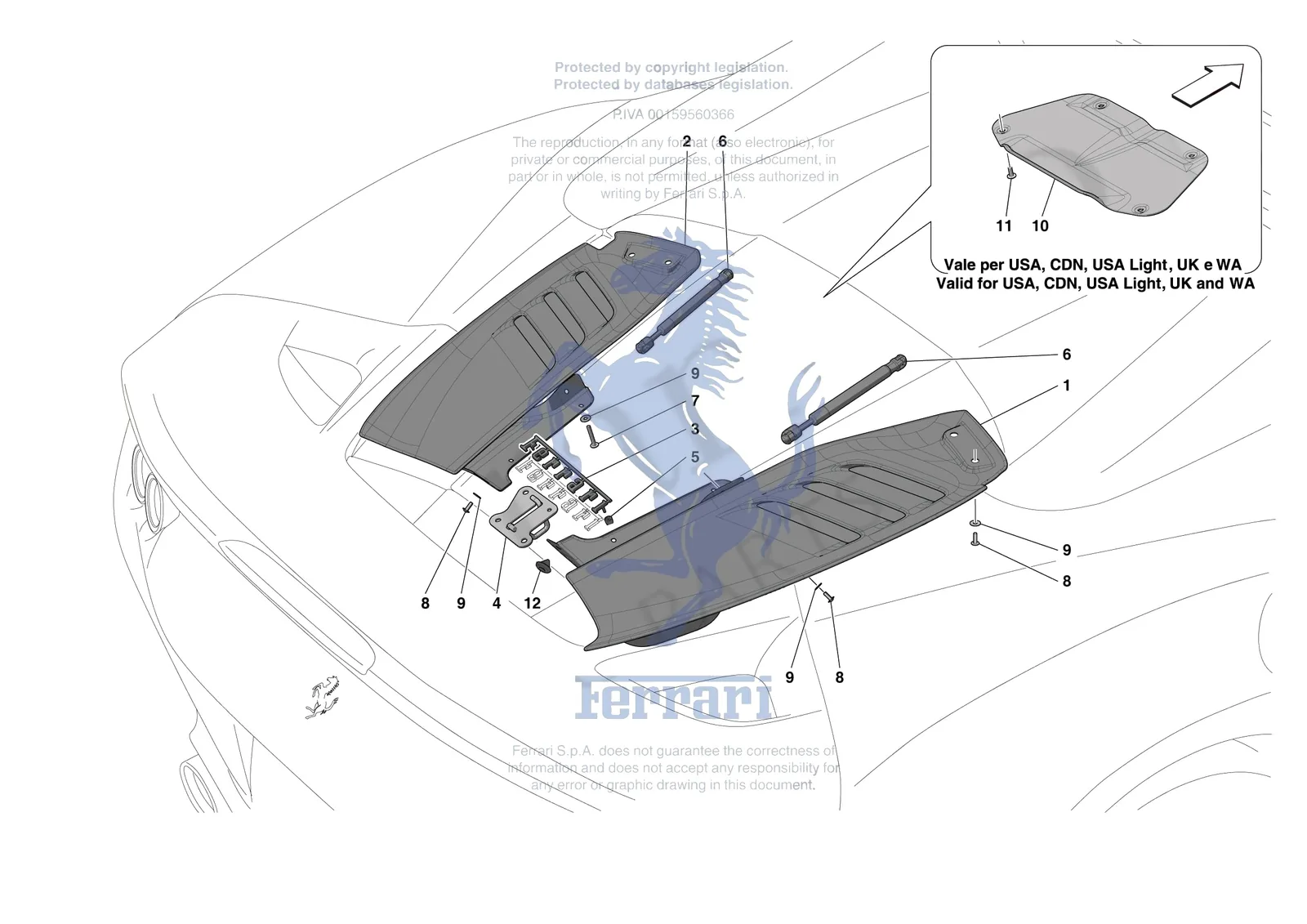

Exploded view of the [vehicle trim] - e.36 - rear lid trim on the Ferrari F8 Spider, with 21 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Spider [VEHICLE TRIM] - E.36 - REAR LID TRIM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0137.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 12638108 | Ferrari Washer - 12638108 | Superseded | Order 12638178 instead | |
| 12638177 | Ferrari Washer - 12638177 | Superseded | Order 12638178 instead | |
| 61276300 | Ferrari Washer - 61276300 | Superseded | Order 12638178 instead | |
| 1 | 70006758 | Ferrari Compl. RH Engine Compartment - 70006758 | $24,390.89 | Contact us to order |
| 1 | 958397 | Ferrari Grigl.Usc.Aria Cof.Mot.Dx Cp - 958397 | $11,556.20 | Contact us to order |
| 1 | 913718 | Ferrari Griglia Uscita Aria Cof.Mot. - 913718 | $1,510.16 | Special order, ships in 7-14 days |
| 2 | 70006759 | Ferrari Compl. LH Engine Compartment - 70006759 | $24,390.89 | Contact us to order |
| 2 | 958423 | Ferrari Grigl.Usc.Aria Cof.Mot.Sx Cp - 958423 | $11,556.20 | Contact us to order |
| 2 | 913719 | Ferrari Griglia Uscita Aria Cof.Mot. - 913719 | $1,510.16 | Special order, ships in 7-14 days |
| 3 | 61025000 | Ferrari Motif Badge - 61025000 | $96.80 | In stock |
| 4 | 83467200 | Ferrari Lock Striker - 83467200 | $78.76 | Special order, ships in 7-14 days |
| 5 | 84952000 | Ferrari Cosmetic Cap - 84952000 | $16.45 | Available, ships in 3-6 days |
| 6 | 923648 | Ferrari Gas Strut - 923648 | $65.63 | Special order, ships in 7-14 days |
| 7 | 925745 | Ferrari Screw M5 x 35 TBFTX - 925745 | $3.03 | Special order, ships in 7-14 days |
| 8 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 8 | 907300 | Ferrari Screw M5 x 14 TBFTX Nerinox - 907300 | $0.98 | Special order, ships in 7-14 days |
| 9 | 12638178 | Ferrari Washer 5.45-14x1 - 12638178 | $0.13 | Available, ships in 3-6 days |
| 10 | 286674 | Ferrari SDARS Antenna Heat Shield - 286674 | $108.31 | Special order, ships in 7-14 days |
| 11 | 65752800 | Ferrari Screw M4 x 10 TBEI - 65752800 | $4.12 | Available, ships in 3-6 days |
| 12 | 14621887 | Ferrari Cover - 14621887 | $3.26 | Special order, ships in 7-14 days |
