Ferrari F8 Spider — [VEHICLE TRIM] - E.42 - REAR BUMPER (diagram 0143)

Exploded view of the [vehicle trim] - e.42 - rear bumper on the Ferrari F8 Spider, with 135 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

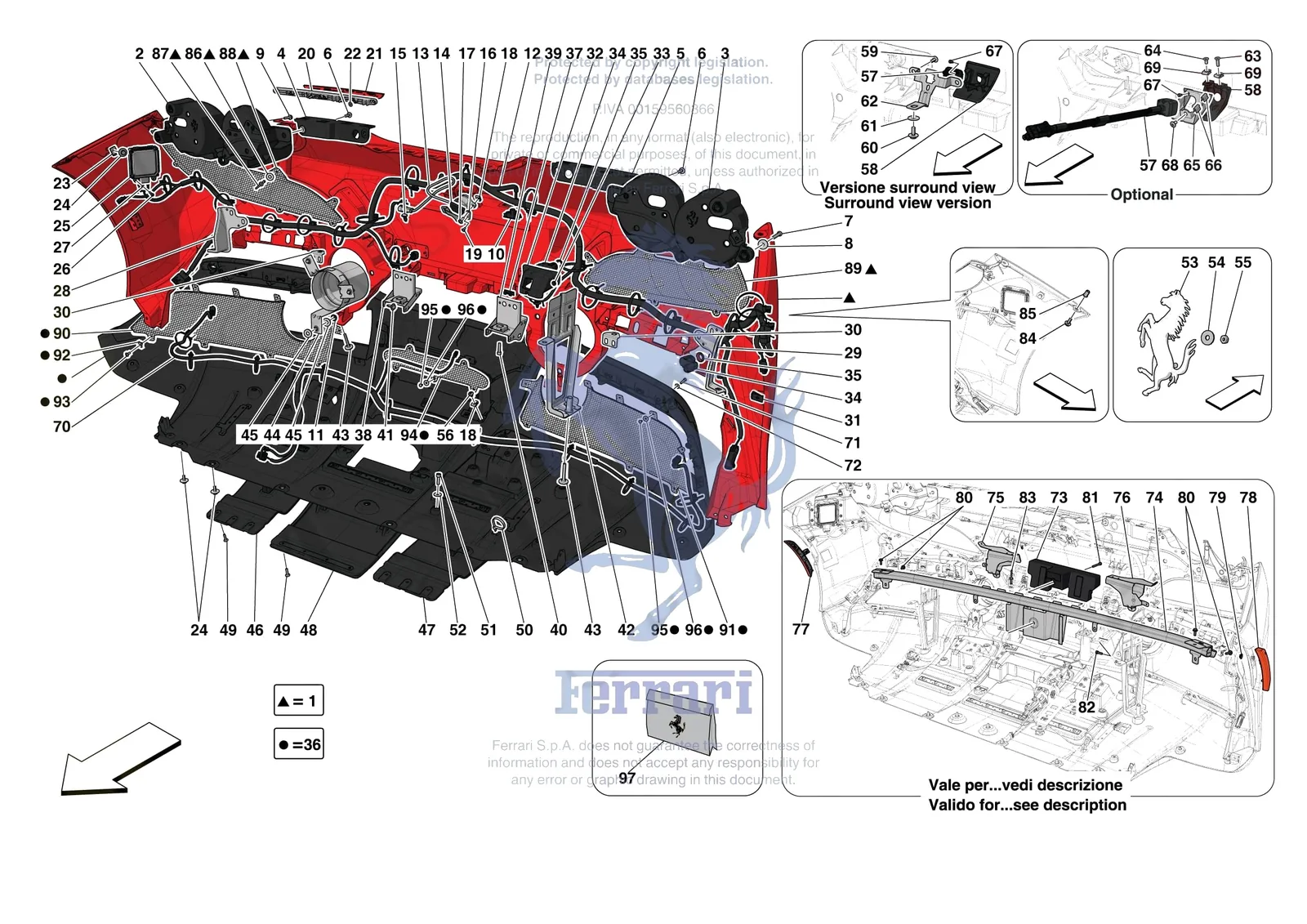

Ferrari F8 Spider [VEHICLE TRIM] - E.42 - REAR BUMPER exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
86367200Ferrari Compl. LH Aerodynamic Floor Bracket Complete - 86367200SupersededOrder 86844100 instead
985984431Ferrari Complete Rear Bumper - 985984431SupersededOrder 985984432 instead
87295200Ferrari Floor Bracket And Vacuum Tank Complete - 87295200SupersededOrder 86843900 instead
15624411Ferrari Rivet 6mm - 15624411$1.92Available, ships in 3-6 days
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
85675300Ferrari Screw - 85675300SupersededOrder 14305387 instead
290589Ferrari Screw 4x8 - 290589SupersededOrder 309629 instead
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
1985834573Ferrari Compl. Rear Mesh - 985834573$19,546.74Contact us to order
1985879069Ferrari Complete Rear Bumper - 985879069$19,431.58Contact us to order
1985984432Ferrari Complete Rear Bumper - 985984432$23,214.07Contact us to order
1985863517Ferrari Complete Rear Mesh - 985863517SupersededOrder 985879069 instead
2908798Ferrari Compl. RH Light Unit Carrier - 908798$137.87Special order, ships in 7-14 days
3908875Ferrari Carrier Fanale Sx Cpl - 908875$137.87Special order, ships in 7-14 days
4866358Ferrari Complete RH Bracket for Rear Bumper - 866358$39.37Special order, ships in 7-14 days
5866357Ferrari Complete LH Bracket for Rear Bumper - 866357$39.37Special order, ships in 7-14 days
611626124Ferrari Screw 6x25 - 11626124SupersededOrder 11612826 instead
611612826Ferrari Screw M6 x 25 - 11612826$6.75Available, ships in 3-6 days
786495500Ferrari Screw M6 x 40 Torx T30 TBTX - 86495500$0.86Available, ships in 3-6 days
868040000Ferrari Washer 6X20x2 - 68040000$0.27Available, ships in 3-6 days
981591700Ferrari Screw TE M6 x 18 with washer - 81591700$4.12Available, ships in 3-6 days
10318015Ferrari License Plate Light/Puddle Light - 318015$34.94Available, ships in 3-6 days
1113046112Ferrari Nut - 13046112$0.46Available, ships in 3-6 days
1113046124Ferrari Nut - 13046124Price on requestContact us for price and availability
12917287Ferrari Rear Bumper Cable - 917287$1,969.79Special order, ships in 7-14 days
12917288Ferrari Rear Bumper Cable - 917288$2,645.15Special order, ships in 7-14 days
12916625Ferrari Rear Bumper Wiring Loom - 916625$566.30Special order, ships in 7-14 days
12916626Ferrari Rear Bumper Wiring Loom - 916626$984.88Special order, ships in 7-14 days
12916627Ferrari Rear Bumper Wiring Loom - 916627$1,477.33Special order, ships in 7-14 days
12916628Ferrari Rear Bumper Wiring Loom - 916628$2,063.59Special order, ships in 7-14 days
12917284Ferrari Rear Bumper Wiring Loom - 917284$837.14Special order, ships in 7-14 days
12917286Ferrari Rear Bumper Wiring Loom - 917286$1,280.35Special order, ships in 7-14 days
13314630Ferrari Magnetic Battery Conditioner Sealed Socket - 314630$688.45Available, ships in 3-6 days
13343200Ferrari Magnetic Battery Conditioner Sealed Socket - 343200$1,253.96Special order, ships in 7-14 days
14849069Ferrari Foam - 849069$7.84Special order, ships in 7-14 days
1584487000Ferrari CLIP - 84487000$6.96Special order, ships in 7-14 days
16798987Ferrari Battery Conditioner Bracket - 798987$467.15Special order, ships in 7-14 days
1785833800Ferrari Screw M5 x 14 TBFTX - 85833800$0.90Available, ships in 3-6 days
1814370874Ferrari Bracket - 14370874$1.17Special order, ships in 7-14 days
19309629Ferrari Screw 4x8 - 309629$4.77Special order, ships in 7-14 days
20813796Ferrari Bracket For LH Reflector - 813796$44.29Special order, ships in 7-14 days
20813788Ferrari Bracket For RH Reflector - 813788$44.29Special order, ships in 7-14 days
2184806900Ferrari Left Rear Reflector - 84806900$29.75In stock
2184806800Ferrari Right Rear Reflector - 84806800$29.40In stock
2213550278Ferrari Washer D.6x13x1 - 13550278$1.80Available, ships in 3-6 days
2387546600Ferrari Clip - 87546600$1.74Available, ships in 3-6 days
2481290900Ferrari Screw With Double Washer - 81290900$1.42In stock
25783725Ferrari Rear Radar - 783725$1,524.44Special order, ships in 7-14 days
25833141Ferrari Rear Radar - 833141$2,915.43Special order, ships in 7-14 days
2714497724Ferrari Washer - 14497724$2.59Special order, ships in 7-14 days
28865113Ferrari RH Outer Bracket - Rear Bumper - 865113$61.52Special order, ships in 7-14 days
29865114Ferrari LH Outer Bracket - Rear Bumper - 865114$61.52Special order, ships in 7-14 days
30865115Ferrari Inner Bracket - Exhaust Tailpipe - 865115$31.99Special order, ships in 7-14 days
3184583500Ferrari Fastener clip - 84583500$2.59Available, ships in 3-6 days
32874472Ferrari Riparo Calore Sens.Park.Cent - 874472$393.93Special order, ships in 7-14 days
32874473Ferrari Riparo Calore Sens.Park.Cent - 874473$393.93Special order, ships in 7-14 days
3384784600Ferrari Washer For Pin - 84784600$43.68Special order, ships in 7-14 days
34295361Ferrari Parking Sensor - 295361$80.91In stock
3581544800Ferrari/Maserati Parking Sensor Ring - 81544800$11.59In stock
36906929Ferrari Compl. Diffuser - 906929$17,022.20Contact us to order
36924477Ferrari Complete Diffuser - 924477$17,500.16Contact us to order
36877913Ferrari Complete Rear Diffuser - 877913$7,539.20Contact us to order
36863539Ferrari Scivolo Estrattore Cpl Base - 863539$7,454.77Special order, ships in 7-14 days
3768700200Ferrari Fixing Clip - 68700200$10.68Special order, ships in 7-14 days
38866273Ferrari Compl. RH Internal Bracket - Rear Bumper - 866273$147.72Special order, ships in 7-14 days
39866278Ferrari Complete LH Internal Bracket - Rear Bumper - 866278$147.72Special order, ships in 7-14 days
4014305424Ferrari Allen Screw M6 x 25mm - 14305424$0.12Available, ships in 3-6 days
4181045300Ferrari Screw 6x16 - 81045300$1.36Special order, ships in 7-14 days
4286844100Ferrari Compl. LH Aerodynamic Floor Bracket - 86844100$216.66Special order, ships in 7-14 days
4286843900Ferrari Compl. RH Aerodynamic Floor Bracket - 86843900$211.73Special order, ships in 7-14 days
4385687400Ferrari 488 Rear Bumper Screw - 85687400$4.16In stock
44898719Ferrari Compl. LH Cosmetic Tailpipe - 898719$1,291.30Special order, ships in 7-14 days
44898716Ferrari Compl. RH Cosmetic Tailpipe - 898716$1,291.30Special order, ships in 7-14 days
44899339Ferrari LH Tail Exhaust - 899339$3,045.36Special order, ships in 7-14 days
44899335Ferrari RH Tail Exhaust - 899335$3,045.36Special order, ships in 7-14 days
44899345Ferrari Tail Exhaust Tita - 899345$4,633.72Special order, ships in 7-14 days
44899353Ferrari Tail Exhaust Tita - 899353$4,633.72Special order, ships in 7-14 days
4587547900Ferrari Washer - 87547900$1.99Special order, ships in 7-14 days
46890932Ferrari Portella Laterale Dx - 890932$590.91Special order, ships in 7-14 days
46786906Ferrari RH Lateral Hatch - 786906$3,517.50Special order, ships in 7-14 days
47786905Ferrari LH Lateral Hatch - 786905$3,517.50Special order, ships in 7-14 days
47890930Ferrari Portella Laterale Sx - 890930$590.91Special order, ships in 7-14 days
48863540Ferrari Portella Centrale - 863540$886.38Special order, ships in 7-14 days
48899283Ferrari Portella Centrale In Carboni - 899283$5,154.32Special order, ships in 7-14 days
4985692300Ferrari Screw M5 x 20 TBFTX - 85692300$0.65Available, ships in 3-6 days
5010815787Ferrari Clamp - 10815787$0.31Available, ships in 3-6 days
5114305324Ferrari Screw M6 x 20mm - 14305324$0.17Available, ships in 3-6 days
5212643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
5370007066Ferrari Cavallino Rampante Badge - 70007066$150.17Special order, ships in 7-14 days
53895800Ferrari Cavallino Rampante Badge - 895800$270.83Special order, ships in 7-14 days
5412642878Ferrari Washer - 12642878$0.19Available, ships in 3-6 days
5516101711Ferrari Nut M3 x 2.4 - 16101711$0.17Available, ships in 3-6 days
5685692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
5685691900Ferrari Screw M5 x 8 TBFTX - 85691900$0.65Available, ships in 3-6 days
57862500Ferrari Analogue Rear Camera - 862500$2,485.70Special order, ships in 7-14 days
57818615Ferrari Surround Camera - 818615$1,967.03Special order, ships in 7-14 days
58877914Ferrari Cosmetic Cover - 877914SupersededOrder 961308 instead
58877939Ferrari Cosmetic Cover - 877939$98.46Special order, ships in 7-14 days
58961308Ferrari Cosmetic Cover - 961308$115.69Special order, ships in 7-14 days
5985833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
6112647778Ferrari Cup Washer - 12647778$0.82Available, ships in 3-6 days
62922542Ferrari Surround Camera Mounting Bracket - 922542$194.48Special order, ships in 7-14 days
6314440724Ferrari Screw M5 x 16 TSEI - 14440724$0.65Available, ships in 3-6 days
6414440524Ferrari Screw - 14440524$2.13Special order, ships in 7-14 days
65877917Ferrari Analogue Rear Camera Bezel Mount - 877917$17.46Special order, ships in 7-14 days
66878137Ferrari Retaining Clip - 878137$2.61Available, ships in 3-6 days
6714417921Ferrari Screw M3 x 6 - 14417921$4.54Available, ships in 3-6 days
6864460500Ferrari Screw M5 x 0.8 x 10 - 64460500$2.13Available, ships in 3-6 days
70916629Ferrari Cavo Estrattore Base - 916629$344.69Special order, ships in 7-14 days
70916630Ferrari Diffuser Cable - 916630$393.93Special order, ships in 7-14 days
7114433124Ferrari Screw 6x18 - 14433124$0.34Available, ships in 3-6 days
73879228Ferrari Assorbitore Posteriore - 879228$320.06Special order, ships in 7-14 days
74905126Ferrari Traversa Post Urto Usa Cpl - 905126$1,600.44Special order, ships in 7-14 days
75967349Ferrari Rinforzo Scatolato Cpl Dx - 967349$664.78Special order, ships in 7-14 days
76967350Ferrari Rinforzo Scatolato Cpl Sx - 967350$664.78Special order, ships in 7-14 days
7787329800Ferrari RH Rear Side Marker - 87329800$122.36Special order, ships in 7-14 days
7887329700Ferrari LH Rear Side Marker - 87329700$122.36Special order, ships in 7-14 days
7989241300Ferrari Nut - 89241300$32.76Special order, ships in 7-14 days
8011625824Ferrari Screw 6x18 - 11625824$0.71Available, ships in 3-6 days
8114305974Ferrari Allen Screw - 14305974$0.55In stock
8214305387Ferrari Screw - 14305387$1.04Special order, ships in 7-14 days
8314642294Ferrari Rivet - 14642294$1.36Available, ships in 3-6 days
85248146Ferrari Rivet M6 x 16mm - 248146$1.97Available, ships in 3-6 days
88863524Ferrari RH Rear Bumper Grille - 863524$415.82Special order, ships in 7-14 days
89863533Ferrari LH Rear Bumper Grille - 863533$415.82Special order, ships in 7-14 days
90809287Ferrari RH Tailpipe Grille - 809287$306.38Special order, ships in 7-14 days
91809296Ferrari LH Tailpipe Mesh - 809296$306.38Special order, ships in 7-14 days
9262764200Ferrari Spire Clip - 62764200$0.82Available, ships in 3-6 days
94809284Ferrari Centre Rear Bumper Grille - 809284$61.26Special order, ships in 7-14 days
94869760Ferrari Centre Rear Bumper Grille - 869760$61.26Special order, ships in 7-14 days
9514643294Ferrari Ribattino Tt Fi D. 39X 9 - 14643294$12.44Special order, ships in 7-14 days
9613577778Ferrari Washer - 13577778$0.57Special order, ships in 7-14 days
9770006736Ferrari Compl. Diffuser - 70006736$56,965.20Contact us to order
9770006735Ferrari DIFFUSER KIT - 70006735Price on requestContact us for price and availability

All F8 Spider diagrams
