Ferrari F8 Spider — [VEHICLE TRIM] - E.45 - LUGGAGE COMPARTMENT MATS (diagram 0147)

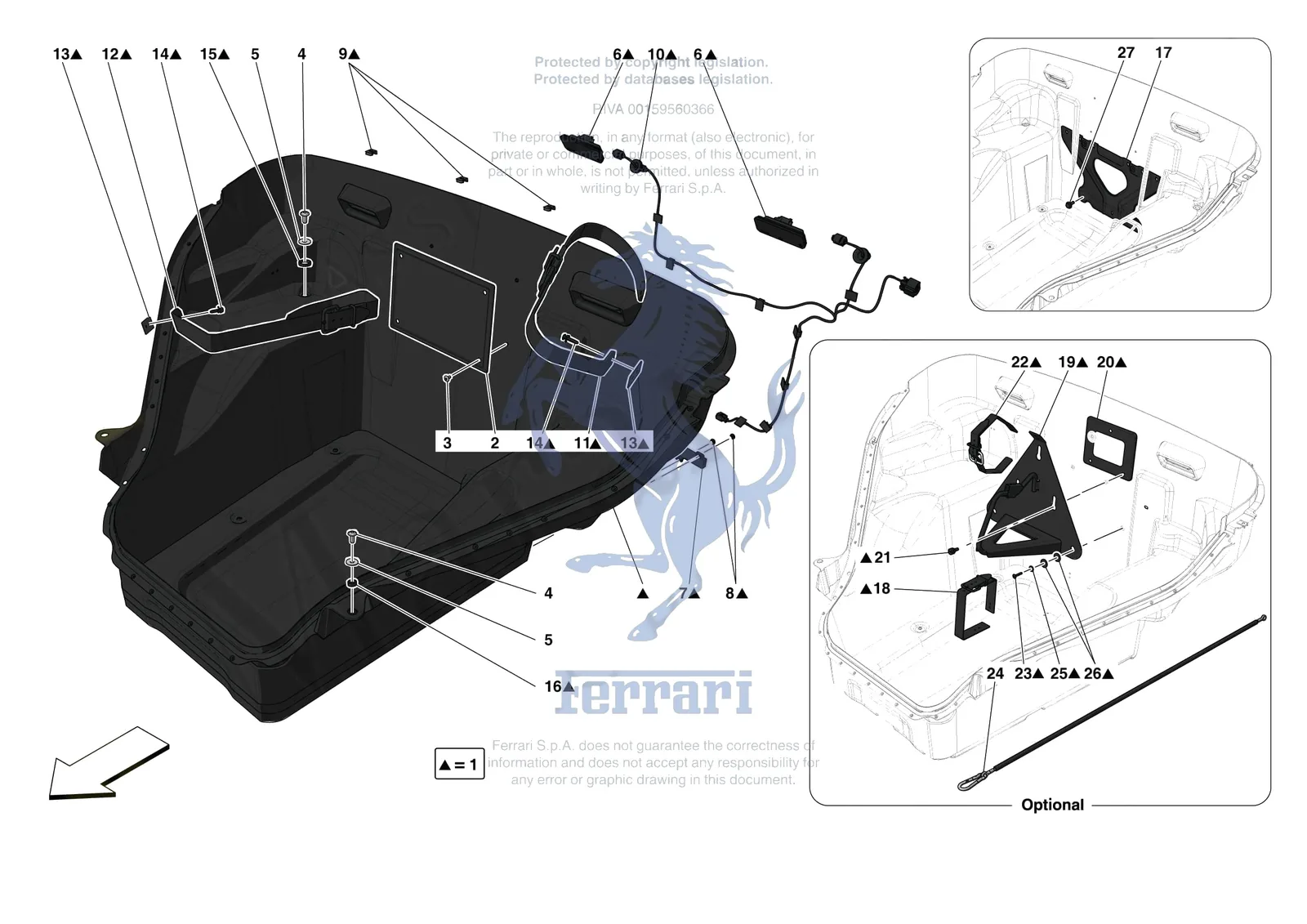

Exploded view of the [vehicle trim] - e.45 - luggage compartment mats on the Ferrari F8 Spider, with 34 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Spider [VEHICLE TRIM] - E.45 - LUGGAGE COMPARTMENT MATS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0147.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 86543300 | Ferrari Threaded Pin - 86543300 | Superseded | Order 83559100 instead | |
| 12643707 | Ferrari Washer - 12643707 | Superseded | Order 12643778 instead | |
| 12643777 | Ferrari Washer - 12643777 | Superseded | Order 12643778 instead | |
| 1 | 881636 | Ferrari COMPL. LUGGAGE COMPARTMENT TUB - 881636 | Price on request | Contact us for price and availability |
| 1 | 881536 | Ferrari Cs. Vasca Baule Opt Ruotino - 881536 | $7,532.15 | Special order, ships in 7-14 days |
| 1 | 896623 | Ferrari Cs. Vasca Baule Opt Ruotino - 896623 | $7,675.21 | Special order, ships in 7-14 days |
| 1 | 862060 | Ferrari Vasca Baule Cs - 862060 | $6,043.07 | Special order, ships in 7-14 days |
| 1 | 896642 | Ferrari Vasca Baule Cs Usa - 896642 | $6,186.12 | Special order, ships in 7-14 days |
| 2 | 87731010 | Ferrari Vehicle Opt. List Holder - 87731010 | $614.67 | Special order, ships in 7-14 days |
| 3 | 87736500 | Ferrari Screw - 87736500 | $7.19 | Special order, ships in 7-14 days |
| 4 | 65864100 | Ferrari Allen Head Screw M6 x 15 TBFEI - 65864100 | $2.82 | Available, ships in 3-6 days |
| 5 | 12643778 | Ferrari Washer 6-18 x 1.5 - 12643778 | $0.54 | Available, ships in 3-6 days |
| 6 | 307799 | Ferrari Light - 307799 | $87.40 | Special order, ships in 7-14 days |
| 7 | 311310 | Ferrari Passive Start Antenna - 311310 | $24.02 | Special order, ships in 7-14 days |
| 8 | 853181 | Ferrari Starlock - 853181 | $7.86 | Special order, ships in 7-14 days |
| 9 | 67278400 | Ferrari BRACKET - 67278400 | $21.60 | Special order, ships in 7-14 days |
| 10 | 905334 | Ferrari Luggage Compartment Cable Fo - 905334 | $86.15 | Special order, ships in 7-14 days |
| 11 | 863022 | Ferrari Retainer Strap - 863022 | $393.93 | Special order, ships in 7-14 days |
| 12 | 863040 | Ferrari Complete Tool Kit Strap - 863040 | $393.93 | Special order, ships in 7-14 days |
| 13 | 81516000 | Ferrari Plate - 81516000 | $110.78 | Special order, ships in 7-14 days |
| 14 | 14415690 | Ferrari Rivet - 14415690 | $1.80 | Available, ships in 3-6 days |
| 15 | 835984 | Ferrari Bushing - 835984 | $7.86 | Special order, ships in 7-14 days |
| 16 | 835987 | Ferrari Bushing - 835987 | $7.86 | Special order, ships in 7-14 days |
| 17 | 86833100 | Ferrari Front Reinforcement Plate Complete - 86833100 | $1,181.86 | Special order, ships in 7-14 days |
| 18 | 863489 | Ferrari Toolkit Bag Fastener Strap - 863489 | $393.93 | Special order, ships in 7-14 days |
| 19 | 785874 | Ferrari Hinged Bracket - Optional Space Saver Wheel - 785874 | $393.93 | Special order, ships in 7-14 days |
| 20 | 82758200 | Ferrari Bracket Reinforcement - 82758200 | $1,181.86 | Special order, ships in 7-14 days |
| 21 | 83559100 | Ferrari Threaded Pin - 83559100 | $125.54 | Special order, ships in 7-14 days |
| 22 | 863558 | Ferrari Upper Retainer Strap For Spa - 863558 | $393.93 | Special order, ships in 7-14 days |
| 23 | 262934 | Ferrari Screw 5x20 - 262934 | $0.84 | Special order, ships in 7-14 days |
| 24 | 83606300 | Ferrari Space Saver Spare Wheel Retainer Cable - 83606300 | $147.72 | Special order, ships in 7-14 days |
| 25 | 14447078 | Ferrari Washer D. 5.5 - 15 x 1 - 14447078 | $0.54 | Special order, ships in 7-14 days |
| 26 | 12624178 | Ferrari Washer D. 5.45 - 22 x 2 - 12624178 | $0.71 | Available, ships in 3-6 days |
| 27 | 317168 | Ferrari Screw - 317168 | $2.18 | Special order, ships in 7-14 days |
