Ferrari F8 Spider — [VEHICLE TRIM] - E.47.05 - DASHBOARD - DUCTS -Not for RHD- (diagram 0153)

Exploded view of the [vehicle trim] - e.47.05 - dashboard - ducts -not for rhd- on the Ferrari F8 Spider, with 13 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

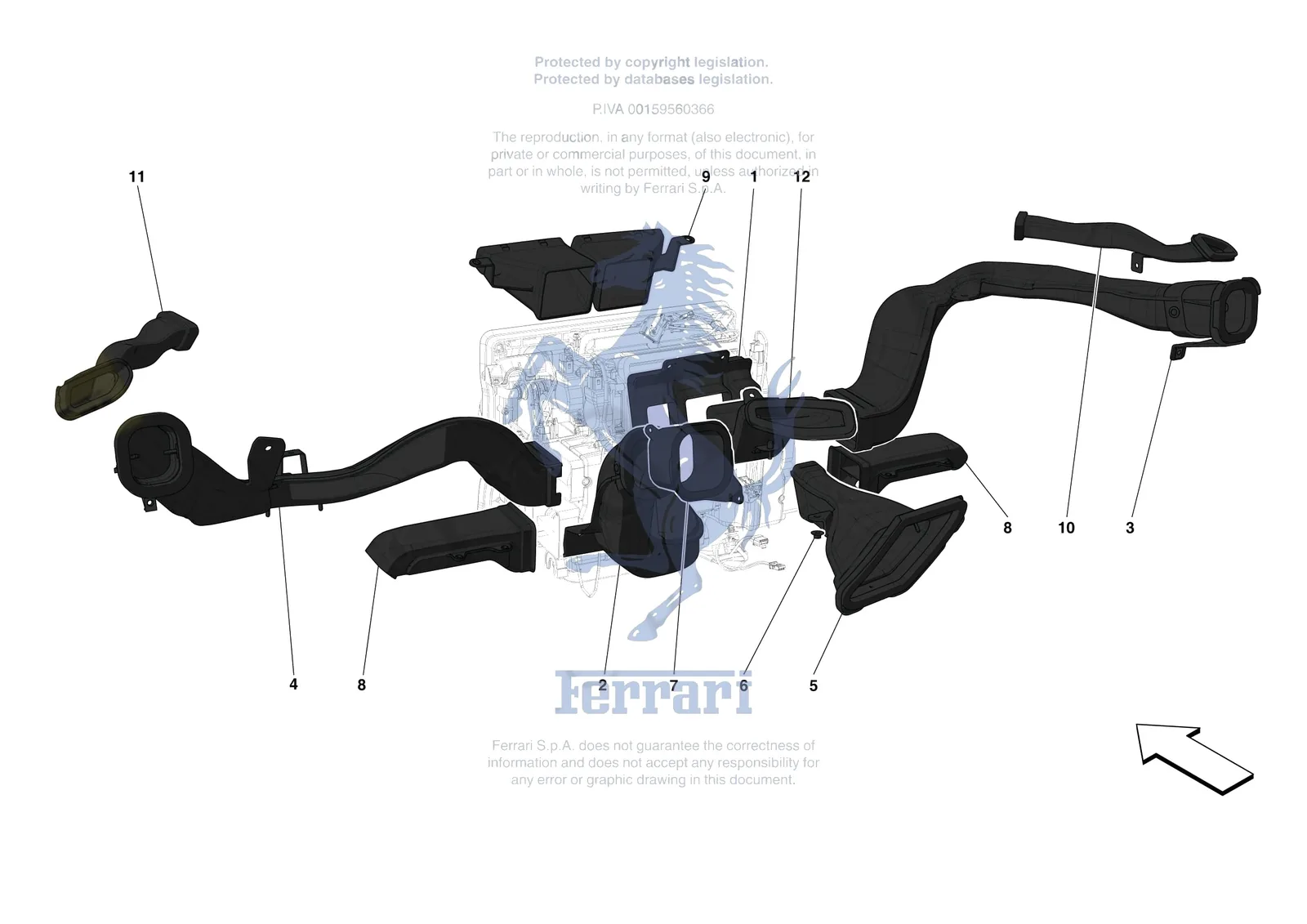

Ferrari F8 Spider [VEHICLE TRIM] - E.47.05 - DASHBOARD - DUCTS -Not for RHD- exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
81371100Ferrari Footwell Duct - 81371100SupersededOrder 84497100 instead
1842505Ferrari Centre Air Duct Connector - 842505$31.80Special order, ships in 7-14 days
2820959Ferrari Condotto Vent. Dx Guidatore - 820959$188.45Special order, ships in 7-14 days
3820956Ferrari Condotto Vent. Dx Passeggero - 820956$232.51Special order, ships in 7-14 days
4820955Ferrari Condotto Vent. Sx Guidatore - 820955$318.19Special order, ships in 7-14 days
5864356Ferrari Condotto Vent. Sx Passeggero - 864356$149.29Special order, ships in 7-14 days
614039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days
7864723Ferrari Prolunga Condotto Vent Dx Cp - 864723$51.37Special order, ships in 7-14 days
884497100Ferrari Footwell Duct - 84497100$100.34Special order, ships in 7-14 days
986166200Ferrari Hvac Defroster Connector LHD - 86166200$151.74Special order, ships in 7-14 days
10843042Ferrari Compl. Passenger Side Demist - 843042$168.88Special order, ships in 7-14 days
11842965Ferrari Compl. Driver Side Demister - 842965$166.42Special order, ships in 7-14 days
12842392Ferrari Compl. Centre Diffuser - 842392$391.61Special order, ships in 7-14 days

All F8 Spider diagrams
