Ferrari F8 Spider — [VEHICLE TRIM] - E.56 - FUEL FILLER SEAT (diagram 0168)

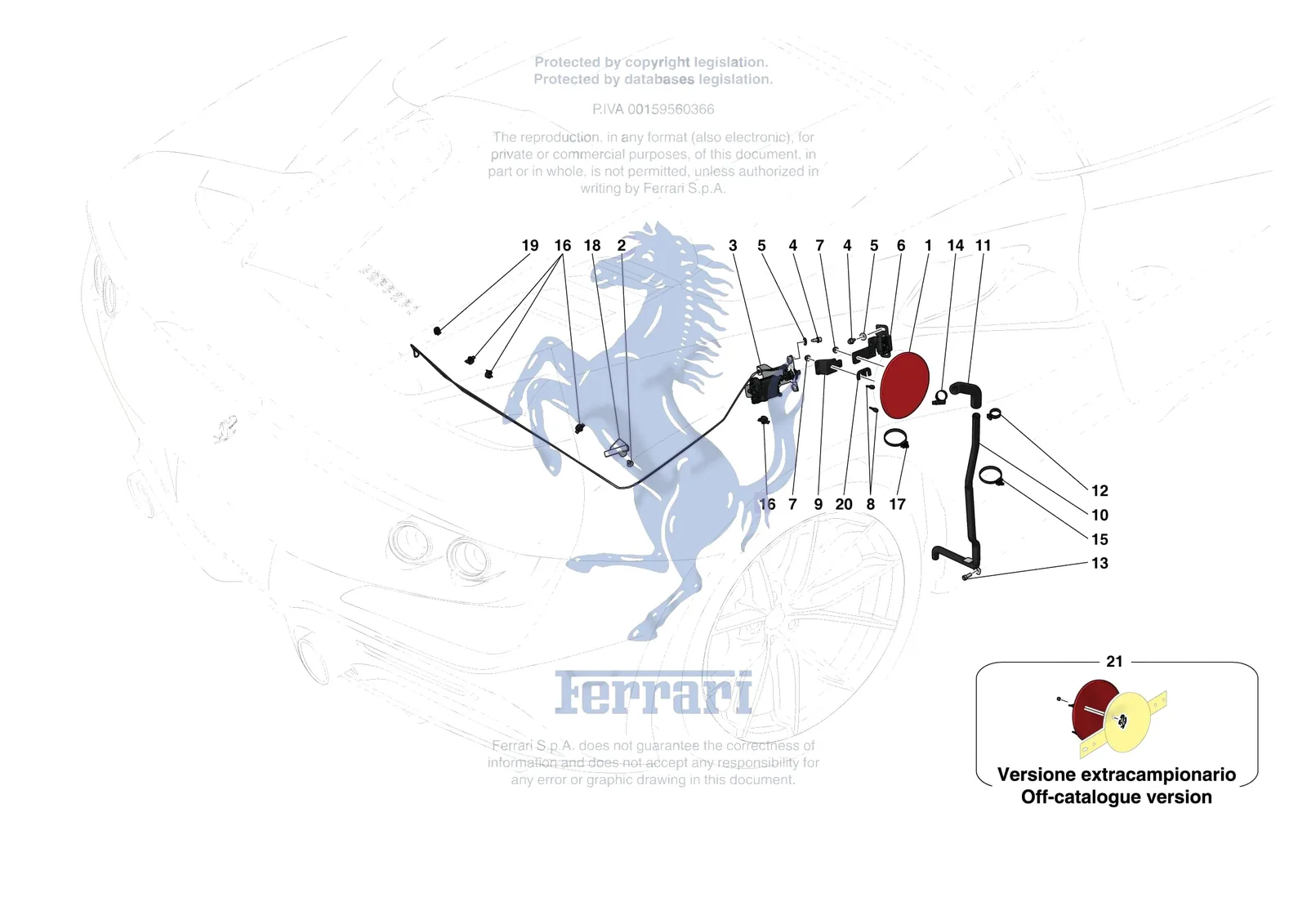

Exploded view of the [vehicle trim] - e.56 - fuel filler seat on the Ferrari F8 Spider, with 29 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Spider [VEHICLE TRIM] - E.56 - FUEL FILLER SEAT exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0168.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 248061 | Ferrari Clip - 248061 | $4.12 | Available, ships in 3-6 days | |
| 86621411 | Ferrari Fuel Filler Flap - 86621411 | Superseded | Order 985807846 instead | |
| 87337300 | Ferrari Fuel Filler Flap Bowden Cable Bracket - 87337300 | Superseded | Order 87950100 instead | |
| 86478900 | Ferrari Hinge Complete - 86478900 | Superseded | Order 807848 instead | |
| 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days | |
| 840252 | Ferrari RH Injection Cable Fastener - 840252 | Superseded | Order 786671 instead | |
| 1 | 985807846 | Ferrari Fuel Filler Flap - 985807846 | $566.30 | Special order, ships in 7-14 days |
| 2 | 85692000 | Ferrari SCREW - 85692000 | $0.65 | Available, ships in 3-6 days |
| 3 | 980119 | Ferrari Compl. Fuel Filler Flap Actu - 980119 | $172.88 | Special order, ships in 7-14 days |
| 4 | 85158100 | Ferrari Screw - 85158100 | $2.59 | Special order, ships in 7-14 days |
| 5 | 12638124 | Ferrari Washer - 12638124 | $0.08 | Available, ships in 3-6 days |
| 6 | 807848 | Ferrari Hinge Complete - 807848 | $155.10 | Special order, ships in 7-14 days |
| 7 | 14059111 | Ferrari Flanged Nut M5 - 14059111 | $0.08 | Available, ships in 3-6 days |
| 7 | 14039511 | Ferrari Nut - 14039511 | $0.54 | Available, ships in 3-6 days |
| 8 | 81802300 | Ferrari Rubber Pad - 81802300 | $1.78 | Available, ships in 3-6 days |
| 9 | 82249400 | Ferrari Striker Plate - 82249400 | $12.99 | Special order, ships in 7-14 days |
| 10 | 87550700 | Ferrari Rigid Fuel Drain Pipe - 87550700 | $640.17 | Special order, ships in 7-14 days |
| 11 | 87550800 | Ferrari Rubber Hose Union D20.25Xd1 - 87550800 | $216.66 | Special order, ships in 7-14 days |
| 12 | 13433570 | Ferrari Hose Clip - 13433570 | $1.40 | Special order, ships in 7-14 days |
| 13 | 13027024 | Ferrari Screw TCEI M6 x 16 - 13027024 | $0.38 | Special order, ships in 7-14 days |
| 14 | 161490 | Ferrari Hose Clip 12 - 20 x 9 - 161490 | $3.91 | Available, ships in 3-6 days |
| 15 | 217854 | Ferrari CLAMP - 217854 | $0.52 | Available, ships in 3-6 days |
| 16 | 14569480 | Ferrari Clip 10x3.8 Black - 14569480 | $0.54 | Available, ships in 3-6 days |
| 17 | 786671 | Ferrari Clip - 786671 | $2.59 | Special order, ships in 7-14 days |
| 18 | 87950100 | Ferrari Actuator Chord Cable Grommet - 87950100 | $12.44 | Special order, ships in 7-14 days |
| 19 | 64215300 | Ferrari Door Rod Clip - 64215300 | $0.82 | Available, ships in 3-6 days |
| 20 | 81619400 | Ferrari Spacer - 81619400 | $8.59 | Special order, ships in 7-14 days |
| 21 | 70006832 | Ferrari Fuel Filler Flap Kit With Ch - 70006832 | $1,083.38 | Special order, ships in 7-14 days |
| 21 | 70006824 | Ferrari FUEL FILLER FLAP KIT, BRUSHED FINISH CAVALLINO EMBLEM - 70006824 | Price on request | Contact us for price and availability |
