Ferrari F8 Spider — [ELECTRICAL SYSTEM] - F.11 - ANTI-THEFT SYSTEM (diagram 0186)

Exploded view of the [electrical system] - f.11 - anti-theft system on the Ferrari F8 Spider, with 49 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

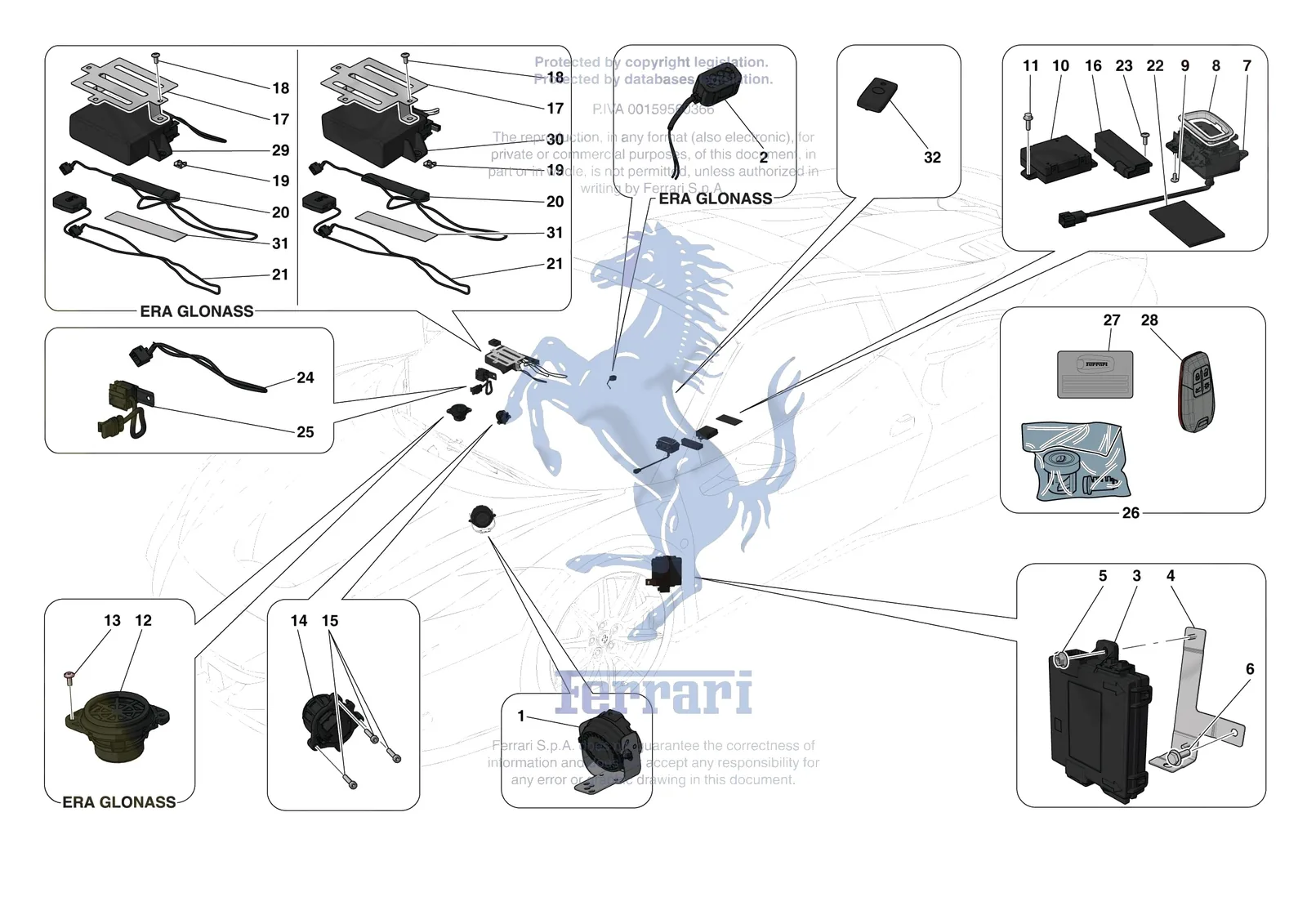

Ferrari F8 Spider [ELECTRICAL SYSTEM] - F.11 - ANTI-THEFT SYSTEM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
310779Ferrari Passive Start Control Unit - 310779SupersededOrder 328097 instead
317012Ferrari Passive Start ECU - 317012SupersededOrder 328098 instead
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
14303224Ferrari Screw 4x16 - 14303224$1.15Special order, ships in 7-14 days
309629Ferrari Screw 4x8 - 309629$4.77Special order, ships in 7-14 days
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
909564Ferrari Start Disable Wiring Harness - 909564SupersededOrder 982069 instead
1336779Ferrari Compl. Anti-Theft System Siren - 336779$262.24Special order, ships in 7-14 days
2333337Ferrari Gsm Microphone - 333337$319.62Special order, ships in 7-14 days
3328097Ferrari Passive Start ECU - 328097$614.67Special order, ships in 7-14 days
3328098Ferrari Passive Start ECU - 328098$614.67Special order, ships in 7-14 days
4315027Ferrari Passive Start Ecu Mounting Bracket - 315027$41.82Special order, ships in 7-14 days
514059111Ferrari Flanged Nut M5 - 14059111$0.08Available, ships in 3-6 days
514039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days
611625824Ferrari Screw 6x18 - 11625824$0.71Available, ships in 3-6 days
7343201Ferrari Switch Glonass 142M Vs - 343201$2,905.45Special order, ships in 7-14 days
8792528Ferrari Era Glonass Switch Surround - 792528$110.78Special order, ships in 7-14 days
9290589Ferrari Screw 4x8 - 290589SupersededOrder 309629 instead
10293416Ferrari Master Dipole Anti-Lift Sensor - 293416$721.22Special order, ships in 7-14 days
1116285127Ferrari Screw M5 x 16 - 16285127$1.05Special order, ships in 7-14 days
12332825Ferrari Glonass Speaker - 332825$78.66Special order, ships in 7-14 days
1365752800Ferrari Screw M4 x 10 TBEI - 65752800$4.12Available, ships in 3-6 days
14310781Ferrari Kin For Passive Start System - 310781SupersededOrder 900756 instead
14900756Ferrari Kin For Passive Start System - 900756$270.44Special order, ships in 7-14 days
1514303324Ferrari/Maserati Screw - 14303324$0.29In stock
16310778Ferrari Passive Start Antenna - 310778$26.20Available, ships in 3-6 days
16322184Ferrari Passive Start Antenna - 322184$102.69Special order, ships in 7-14 days
17334966Ferrari Era Glonass ECU Bracket - 334966$320.06Special order, ships in 7-14 days
1885692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
1967278400Ferrari BRACKET - 67278400$21.60Special order, ships in 7-14 days
20332824Ferrari Glonass Gsm Antenna - 332824$102.85Special order, ships in 7-14 days
21332823Ferrari Glonass Gps Antenna - 332823$102.85Special order, ships in 7-14 days
22179309Ferrari ADHESIVE FOAM - 179309$8.28Available, ships in 3-6 days
2385833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
24824398Ferrari RF Antenna For Svr - 824398$72.10Special order, ships in 7-14 days
25982069Ferrari Start Disable Wiring Harness - 982069$58.98Special order, ships in 7-14 days
26328976Ferrari Key And Block Kit - 328976$2,177.79Special order, ships in 7-14 days
26329045Ferrari Key And Block Kit - 329045$2,177.79Special order, ships in 7-14 days
276326163Ferrari Secret Card Label For Keys - 6326163$4.39Special order, ships in 7-14 days
28328404Ferrari Keyless Key Kit - 328404$1,549.03Special order, ships in 7-14 days
29330644Ferrari GLONASS ECU - 330644$5,109.76Special order, ships in 7-14 days
29818431Ferrari GLONASS ECU - 818431Price on requestContact us for price and availability
29908023Ferrari Glonass Ecu - 908023$5,173.08Special order, ships in 7-14 days
29960231Ferrari Glonass Ecu - 960231Price on requestContact us for price and availability
30824396Ferrari TCU Ecall / Svr - 824396$3,514.91Special order, ships in 7-14 days
3184801200Ferrari Adhesive Strip - 84801200$13.99Special order, ships in 7-14 days
32824397Ferrari Driver Card For Svr - 824397$491.74Special order, ships in 7-14 days
