Ferrari F8 Tributo — [ENGINE] - B.03 - ENGINE COVERS (diagram 0006)

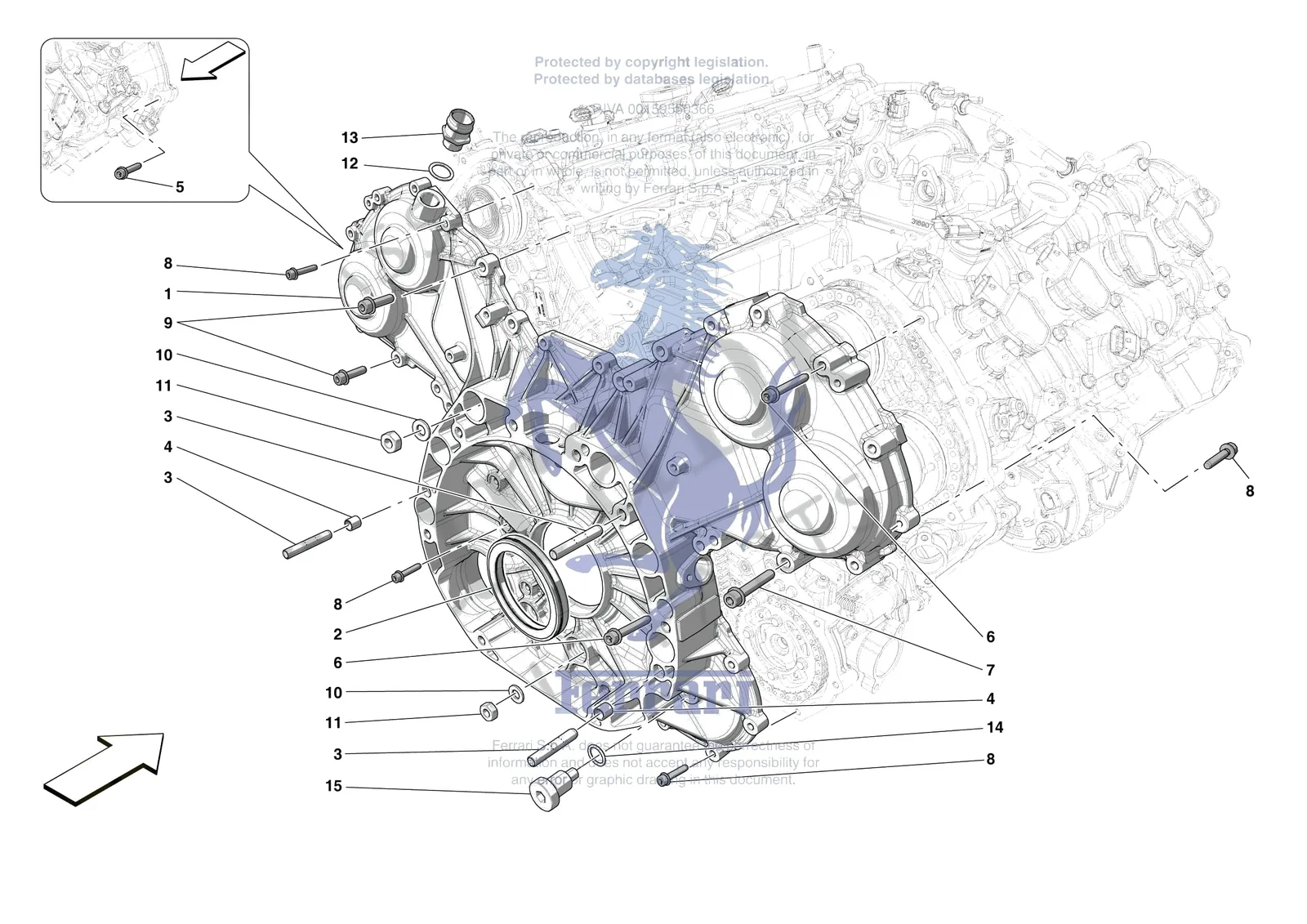

Exploded view of the [engine] - b.03 - engine covers on the Ferrari F8 Tributo, with 18 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Tributo [ENGINE] - B.03 - ENGINE COVERS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-tributo/0006.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14306824 | Ferrari Bolt M8 x 45 TCEI - 14306824 | $1.04 | Available, ships in 3-6 days | |
| 242269 | Ferrari Rear Main Oil Seal - 242269 | $104.41 | Available, ships in 3-6 days | |
| 216568 | Ferrari Screw 6x30 - 216568 | Superseded | Order 231621 instead | |
| 1 | 782004 | Ferrari Timing Cover - 782004 | $2,110.49 | Special order, ships in 7-14 days |
| 2 | 240214 | Ferrari/Maserati Rear Main Crankshaft Oil Seal - 240214 | Superseded | Order 242269 instead |
| 3 | 13546734 | Ferrari Stud 40mm - 13546734 | $2.82 | Available, ships in 3-6 days |
| 4 | 100052 | Ferrari Centering Dowel - 100052 | $4.35 | Available, ships in 3-6 days |
| 5 | 231623 | Ferrari Screw M6 x 40 TCEI - 231623 | $1.02 | Available, ships in 3-6 days |
| 6 | 231624 | Ferrari Allen Screw M6 x 45 - 231624 | Superseded | Order 14305924 instead |
| 7 | 285494 | Ferrari Screw 8x50 - 285494 | $1.99 | Available, ships in 3-6 days |
| 8 | 231621 | Ferrari Allen Screw M6 x 30 TCEI - 231621 | $0.73 | Available, ships in 3-6 days |
| 9 | 231629 | Ferrari Allen Screw M8 x 30 TCEI - 231629 | $1.15 | Available, ships in 3-6 days |
| 10 | 178348 | Ferrari Washer - 178348 | $1.40 | Available, ships in 3-6 days |
| 11 | 133988 | Ferrari Plain Nut M10 x 1.25 x 8 - 133988 | $0.38 | Available, ships in 3-6 days |
| 12 | 10263160 | Ferrari Washer D. 18-24 x 1 - 10263160 | $0.54 | Available, ships in 3-6 days |
| 13 | 309101 | Ferrari Connector - 309101 | $34.44 | Special order, ships in 7-14 days |
| 14 | 302618 | Ferrari Gasket - 302618 | $2.38 | Available, ships in 3-6 days |
| 15 | 307936 | Ferrari Cover - 307936 | $34.44 | Special order, ships in 7-14 days |
