Ferrari F8 Tributo — [ENGINE] - B.05 - PISTONS AND CONNECTING RODS (diagram 0008)

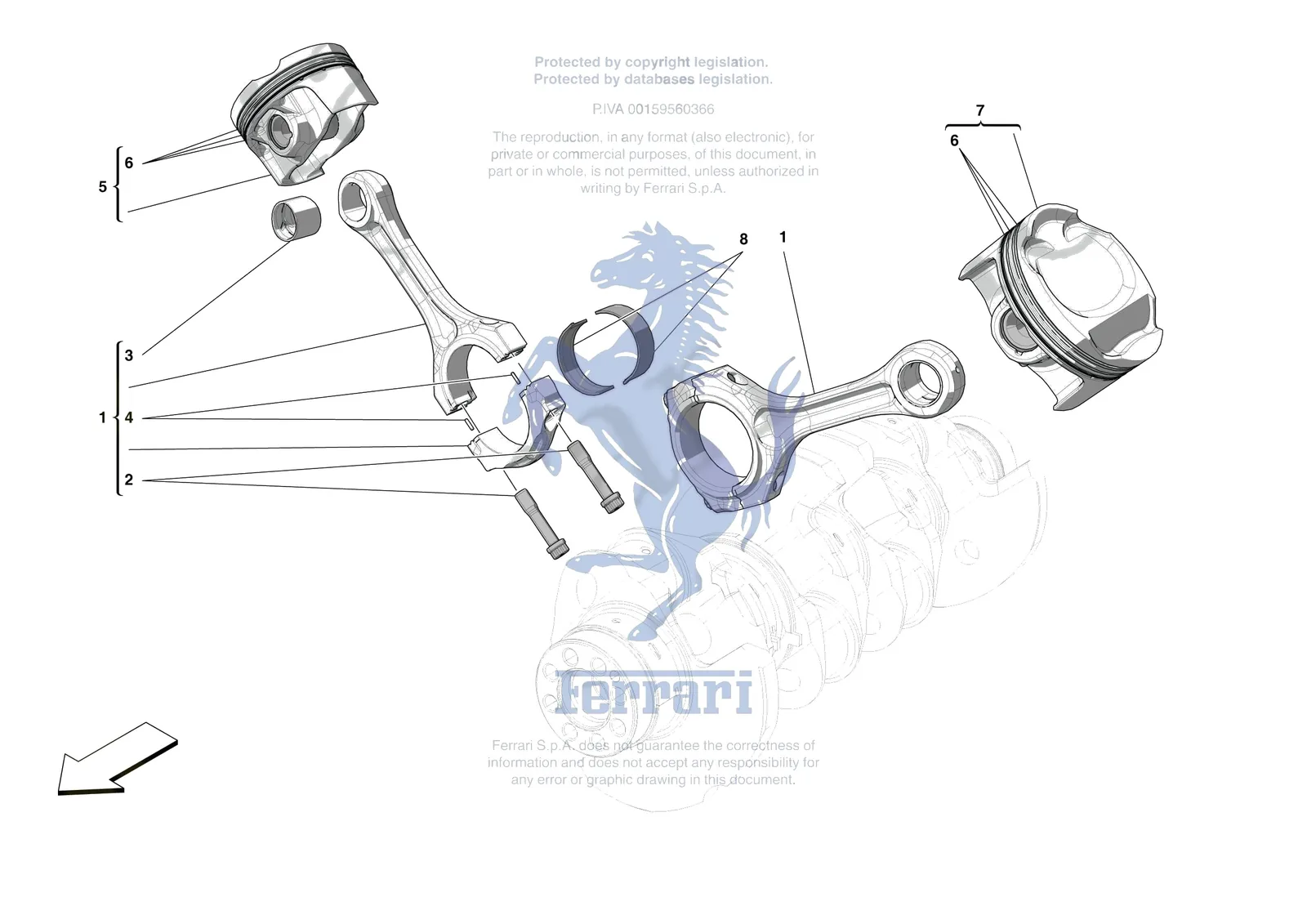

Exploded view of the [engine] - b.05 - pistons and connecting rods on the Ferrari F8 Tributo, with 11 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Tributo [ENGINE] - B.05 - PISTONS AND CONNECTING RODS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-tributo/0008.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 270251 | Ferrari Bushing - 270251 | $115.02 | Special order, ships in 7-14 days | |
| 1 | 337446 | Ferrari Compl. Connecting Rod And Ca - 337446 | $1,831.69 | Special order, ships in 7-14 days |
| 2 | 767760 | Ferrari SCREW - 767760 | $71.28 | Special order, ships in 7-14 days |
| 3 | 301753 | Ferrari Bushing - 301753 | $88.61 | Special order, ships in 7-14 days |
| 4 | 337553 | Ferrari Alignment Pin - 337553 | $10.81 | Special order, ships in 7-14 days |
| 5 | 334885 | Ferrari Compl. RH Piston - 334885 | $1,132.62 | Special order, ships in 7-14 days |
| 6 | 343625 | Ferrari Compl. Piston Ring Set - 343625 | $295.43 | Special order, ships in 7-14 days |
| 7 | 334886 | Ferrari Compl. LH Piston - 334886 | $1,132.62 | Special order, ships in 7-14 days |
| 8 | 312691 | Ferrari Connecting Rod Half-Bearing - 312691 | $31.99 | Available, ships in 3-6 days |
| 8 | 312692 | Ferrari Connecting Rod Half-Bearing - 312692 | $31.99 | Available, ships in 3-6 days |
| 8 | 312693 | Ferrari Connecting Rod Half-Bearing - 312693 | $31.99 | Special order, ships in 7-14 days |
