Ferrari F8 Tributo — [ENGINE] - B.08.02 - CYLINDER HEADS - LH HEAD (diagram 0012)

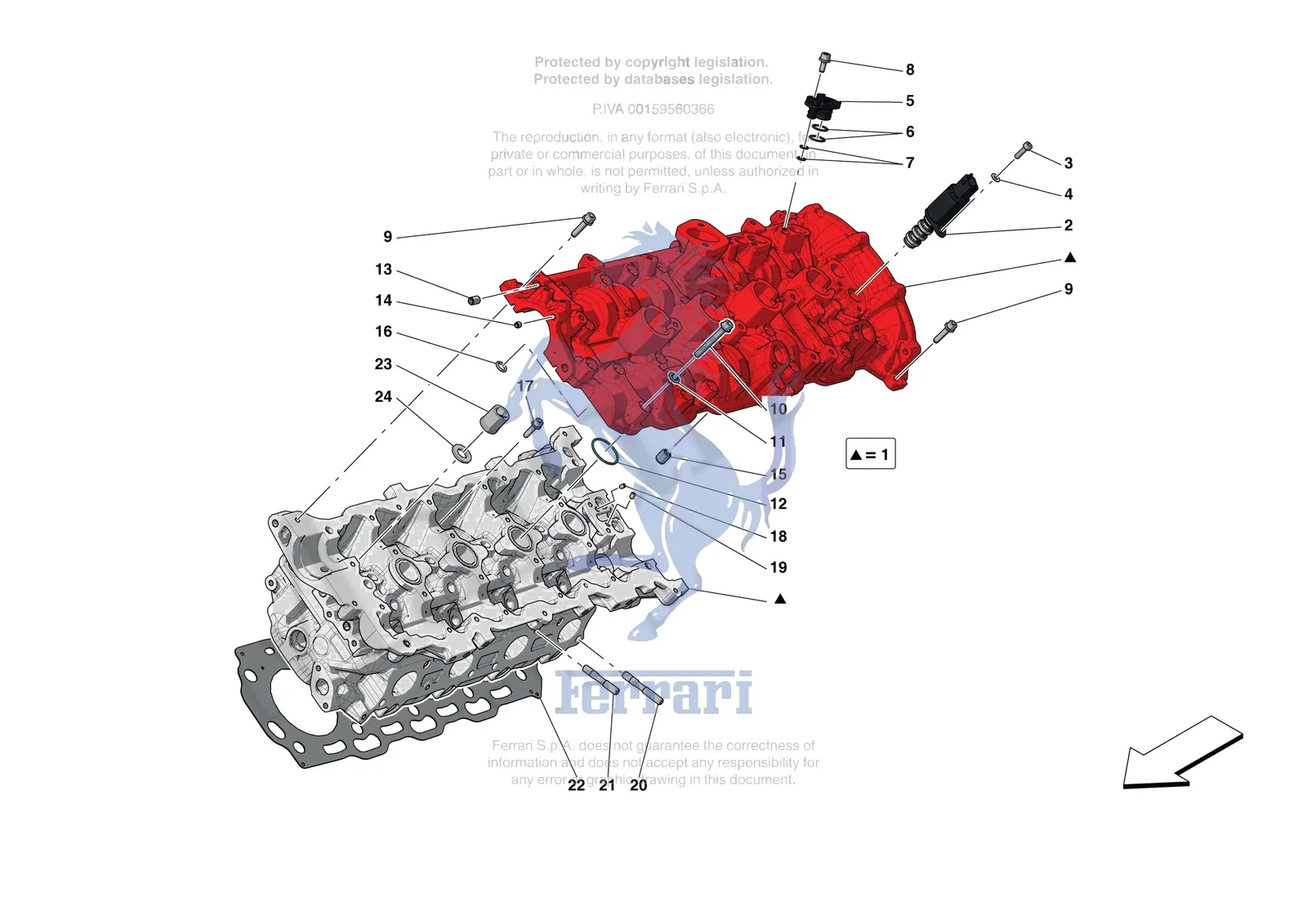

Exploded view of the [engine] - b.08.02 - cylinder heads - lh head on the Ferrari F8 Tributo, with 32 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Tributo [ENGINE] - B.08.02 - CYLINDER HEADS - LH HEAD exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-tributo/0012.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 255442 | Ferrari Oil Pressure Regulator Valve - 255442 | Superseded | Order 801187 instead | |
| 269227 | Ferrari Oil Pressure Regulator Valve - 269227 | Superseded | Order 801187 instead | |
| 14432221 | Ferrari Screw - 14432221 | Superseded | Order 231619 instead | |
| 14432224 | Ferrari Screw M6 x 22 - 14432224 | Superseded | Order 231619 instead | |
| 1 | 742679 | Ferrari Assieme Testa Sx - Coperchi - 742679 | $5,396.11 | Special order, ships in 7-14 days |
| 1 | 909431 | Ferrari Assieme Testa Sx - Coperchi - 909431 | $5,430.79 | Special order, ships in 7-14 days |
| 1 | 979085 | Ferrari Assieme Testa Sx - Coperchi - 979085 | $4,470.36 | Special order, ships in 7-14 days |
| 2 | 296017 | Ferrari Oil Pressure Regulator Valve - 296017 | Superseded | Order 801187 instead |
| 2 | 801187 | Ferrari Oil Pressure Regulator Valve - 801187 | $368.79 | Available, ships in 3-6 days |
| 3 | 14304224 | Ferrari Screw M5 x 16 - 14304224 | $0.27 | Available, ships in 3-6 days |
| 4 | 11181574 | Ferrari Washer - 11181574 | $0.06 | Available, ships in 3-6 days |
| 5 | 287024 | Ferrari Cap - 287024 | $14.20 | Special order, ships in 7-14 days |
| 5 | 806088 | Ferrari Plug - 806088 | $15.06 | Special order, ships in 7-14 days |
| 6 | 14453281 | Ferrari O-Ring Gasket - 14453281 | $2.61 | Available, ships in 3-6 days |
| 7 | 14452781 | Ferrari Gasket - 14452781 | $0.38 | Available, ships in 3-6 days |
| 8 | 13026924 | Ferrari Screw 6x14 - 13026924 | $0.57 | Available, ships in 3-6 days |
| 9 | 231620 | Ferrari/Maserati Screw - 231620 | $0.58 | In stock |
| 10 | 296759 | Ferrari Screw M6 x 1 x 45 - 296759 | $1.36 | Available, ships in 3-6 days |
| 11 | 296075 | Ferrari Washer - 296075 | $2.38 | Available, ships in 3-6 days |
| 12 | 166657 | Ferrari O-Ring D.29.87 - 166657 | $0.98 | Available, ships in 3-6 days |
| 13 | 277903 | Ferrari Cap - 277903 | $1.23 | Available, ships in 3-6 days |
| 14 | 199760 | Ferrari Threaded Plug D 6x1 - 199760 | $0.57 | Available, ships in 3-6 days |
| 15 | 342272 | Ferrari Non Return Valve - 342272 | $20.37 | Special order, ships in 7-14 days |
| 16 | 127816 | Ferrari Sealing Ring - 127816 | $6.00 | In stock |
| 17 | 231619 | Ferrari Screw M6 x 22 - 231619 | $0.54 | Available, ships in 3-6 days |
| 18 | 226414 | Ferrari Grub Screw - 226414 | $13.74 | Available, ships in 3-6 days |
| 19 | 256827 | Ferrari Dowel - 256827 | $10.91 | Available, ships in 3-6 days |
| 20 | 307168 | Ferrari Exhaust Manifold Stud - 307168 | $3.85 | In stock |
| 21 | 306320 | Ferrari Exhaust Manifold Stud - 306320 | $3.85 | In stock |
| 22 | 319512 | Ferrari LH Head-Crankcase Gasket - 319512 | $236.34 | Special order, ships in 7-14 days |
| 23 | 271125 | Ferrari Cylinder Head Nut - 271125 | $14.39 | Available, ships in 3-6 days |
| 24 | 271129 | Ferrari Washer - 271129 | $2.38 | Available, ships in 3-6 days |
