Ferrari F8 Tributo — [ENGINE] - B.14 - ENGINE INTAKE DUCT (diagram 0019)

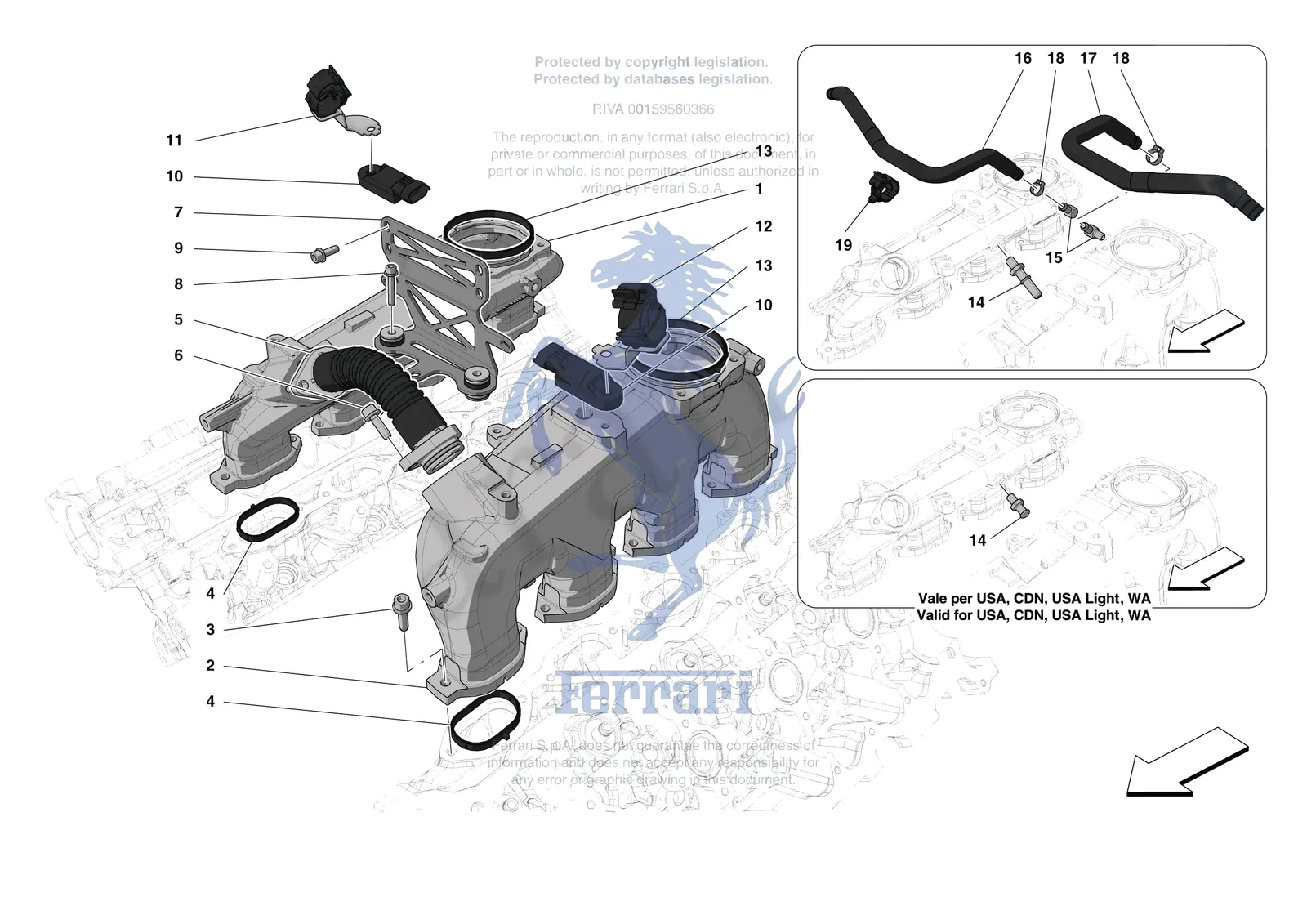

Exploded view of the [engine] - b.14 - engine intake duct on the Ferrari F8 Tributo, with 24 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Tributo [ENGINE] - B.14 - ENGINE INTAKE DUCT exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-tributo/0019.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14432221 | Ferrari Screw - 14432221 | Superseded | Order 231619 instead | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 14432224 | Ferrari Screw M6 x 22 - 14432224 | Superseded | Order 231619 instead | |
| 1 | 786157 | Ferrari RH Intake Duct - 786157 | $1,378.85 | Special order, ships in 7-14 days |
| 2 | 786158 | Ferrari LH Intake Duct - 786158 | $1,378.85 | Special order, ships in 7-14 days |
| 3 | 231619 | Ferrari Screw M6 x 22 - 231619 | $0.54 | Available, ships in 3-6 days |
| 4 | 309025 | Ferrari Gasket - 309025 | $68.92 | Available, ships in 3-6 days |
| 5 | 786094 | Ferrari Compl. Compensation Pipe - 786094 | $174.80 | Special order, ships in 7-14 days |
| 6 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 7 | 339588 | Ferrari Compl. Plenum Connection Bra - 339588 | $226.49 | Special order, ships in 7-14 days |
| 8 | 231622 | Ferrari Screw M6 x 35 - 231622 | $0.65 | Available, ships in 3-6 days |
| 9 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 10 | 283538 | Ferrari Intake Pressure Sensor - 283538 | $61.16 | Special order, ships in 7-14 days |
| 11 | 808984 | Ferrari Compl. RH Flush Pipe Bracket - 808984 | $66.45 | Special order, ships in 7-14 days |
| 12 | 808985 | Ferrari Compl. LH Flush Pipe Bracket - 808985 | $66.45 | Special order, ships in 7-14 days |
| 13 | 309026 | Ferrari Gasket - 309026 | $66.45 | Special order, ships in 7-14 days |
| 13 | 55015678 | Ferrari Gasket - 55015678 | $1,280.35 | Special order, ships in 7-14 days |
| 14 | 14326101 | Ferrari Threaded Connector - 14326101 | $2.38 | Special order, ships in 7-14 days |
| 14 | 317584 | Ferrari Threaded Connector - 317584 | $41.82 | Special order, ships in 7-14 days |
| 15 | 268877 | Ferrari Connector - 268877 | $110.61 | Special order, ships in 7-14 days |
| 16 | 338932 | Ferrari RH Flush Pipe - Engine Side - 338932 | $167.40 | Special order, ships in 7-14 days |
| 17 | 338933 | Ferrari Tubo Lavaggio Sx Lato Mot - 338933 | $167.40 | Special order, ships in 7-14 days |
| 18 | 13432070 | Ferrari/Maserati Screw Collar / Hose Clamp - 13432070 | $0.95 | In stock |
| 19 | 259508 | Ferrari Clip 15.8mm-18.5mm - 259508 | $1.25 | Special order, ships in 7-14 days |
