Ferrari F8 Tributo — [ENGINE] - B.15 - INJECTION CONTROL (diagram 0020)

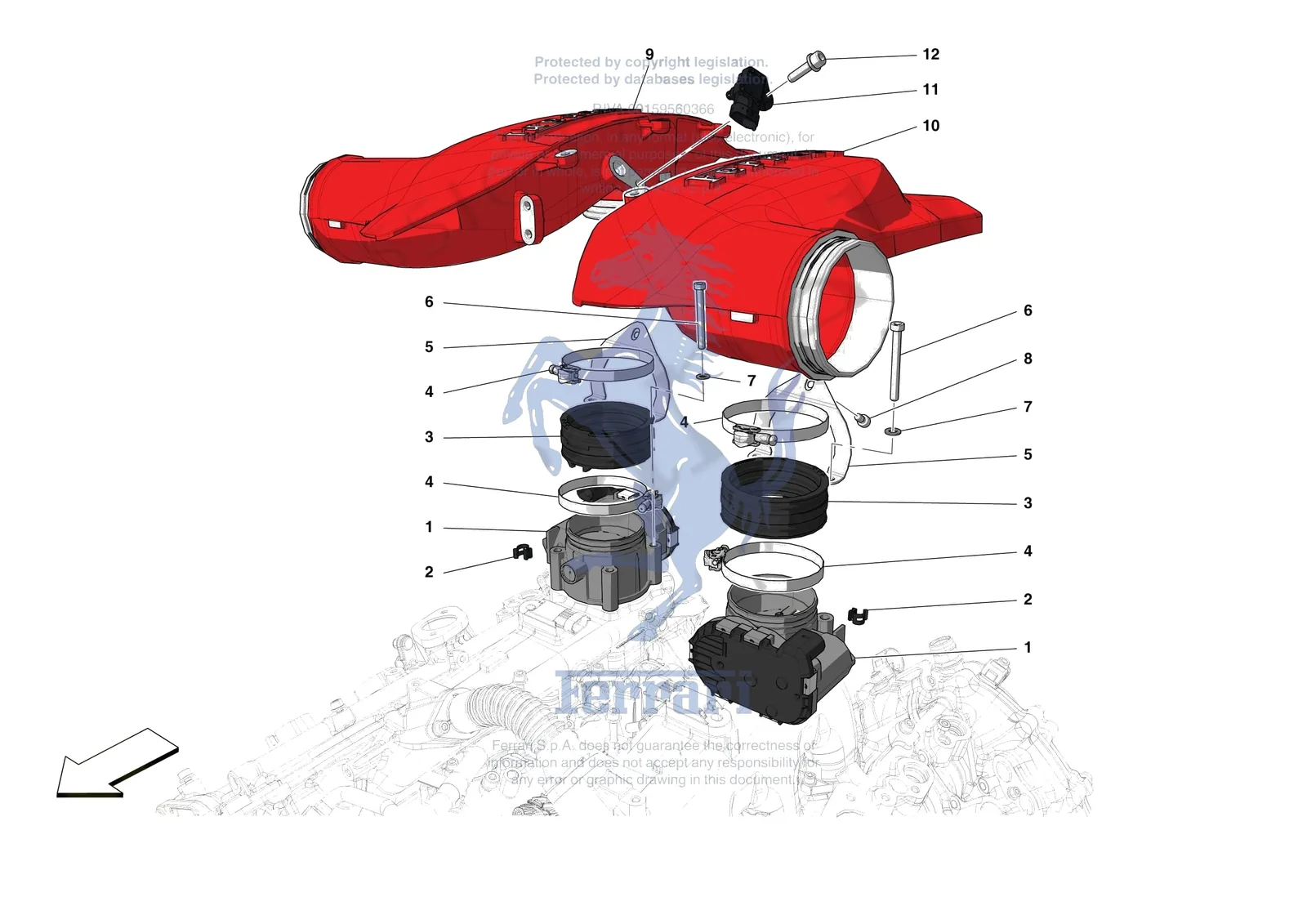

Exploded view of the [engine] - b.15 - injection control on the Ferrari F8 Tributo, with 24 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Tributo [ENGINE] - B.15 - INJECTION CONTROL exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-tributo/0020.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14432221 | Ferrari Screw - 14432221 | Superseded | Order 231619 instead | |
| 14432224 | Ferrari Screw M6 x 22 - 14432224 | Superseded | Order 231619 instead | |
| 279575 | Ferrari Throttle Body - 279575 | Superseded | Order 329966 instead | |
| 11197779 | Ferrari Washer - 11197779 | Superseded | Order 11197774 instead | |
| 1 | 329966 | Ferrari Throttle Body - 329966 | $615.54 | Special order, ships in 7-14 days |
| 2 | 818494 | Ferrari Clip - 818494 | $2.13 | Special order, ships in 7-14 days |
| 3 | 338560 | Ferrari Spacer - 338560 | $91.08 | Special order, ships in 7-14 days |
| 4 | 304446 | Ferrari Screw Collar - 304446 | $8.72 | Special order, ships in 7-14 days |
| 5 | 767488 | Ferrari Bracket - 767488 | $39.37 | Special order, ships in 7-14 days |
| 6 | 769144 | Ferrari Screw - 769144 | $1.30 | Special order, ships in 7-14 days |
| 7 | 11197774 | Ferrari Conic Washer 6.4x12x1.2 - 11197774 | $0.12 | Available, ships in 3-6 days |
| 8 | 282391 | Ferrari Screw - 282391 | $1.80 | Special order, ships in 7-14 days |
| 9 | 70006755 | Ferrari COMPL. RH INTAKE PLENUM - 70006755 | Price on request | Contact us for price and availability |
| 9 | 801738 | Ferrari Compl. RH Intake Plenum - 801738 | $2,412.99 | Special order, ships in 7-14 days |
| 9 | 878951 | Ferrari Compl. RH Intake Plenum - 878951 | Superseded | Order 801738 instead |
| 9 | 801828 | Ferrari Polmone Aspirazione Dx Cpl - 801828 | $10,104.65 | Contact us to order |
| 9 | 902970 | Ferrari Polmone Aspirazione Dx Cpl - 902970 | Superseded | Order 801828 instead |
| 10 | 70006756 | Ferrari COMPL. LH INTAKE PLENUM - 70006756 | Price on request | Contact us for price and availability |
| 10 | 801739 | Ferrari Compl. LH Intake Plenum - 801739 | $2,412.99 | Special order, ships in 7-14 days |
| 10 | 878952 | Ferrari Compl. LH Intake Plenum - 878952 | Superseded | Order 801739 instead |
| 10 | 801829 | Ferrari Polmone Aspirazione Sx Cpl - 801829 | $10,104.65 | Contact us to order |
| 10 | 902971 | Ferrari Polmone Aspirazione Sx Cpl - 902971 | Superseded | Order 801829 instead |
| 11 | 272880 | Ferrari Pressure and Temperature Sensor - 272880 | $61.26 | Available, ships in 3-6 days |
| 12 | 231619 | Ferrari Screw M6 x 22 - 231619 | $0.54 | Available, ships in 3-6 days |
