Ferrari F8 Tributo — [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION (diagram 0056)

Exploded view of the [mechanical system] - d.08.01 - exhaust system - front section on the Ferrari F8 Tributo, with 73 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

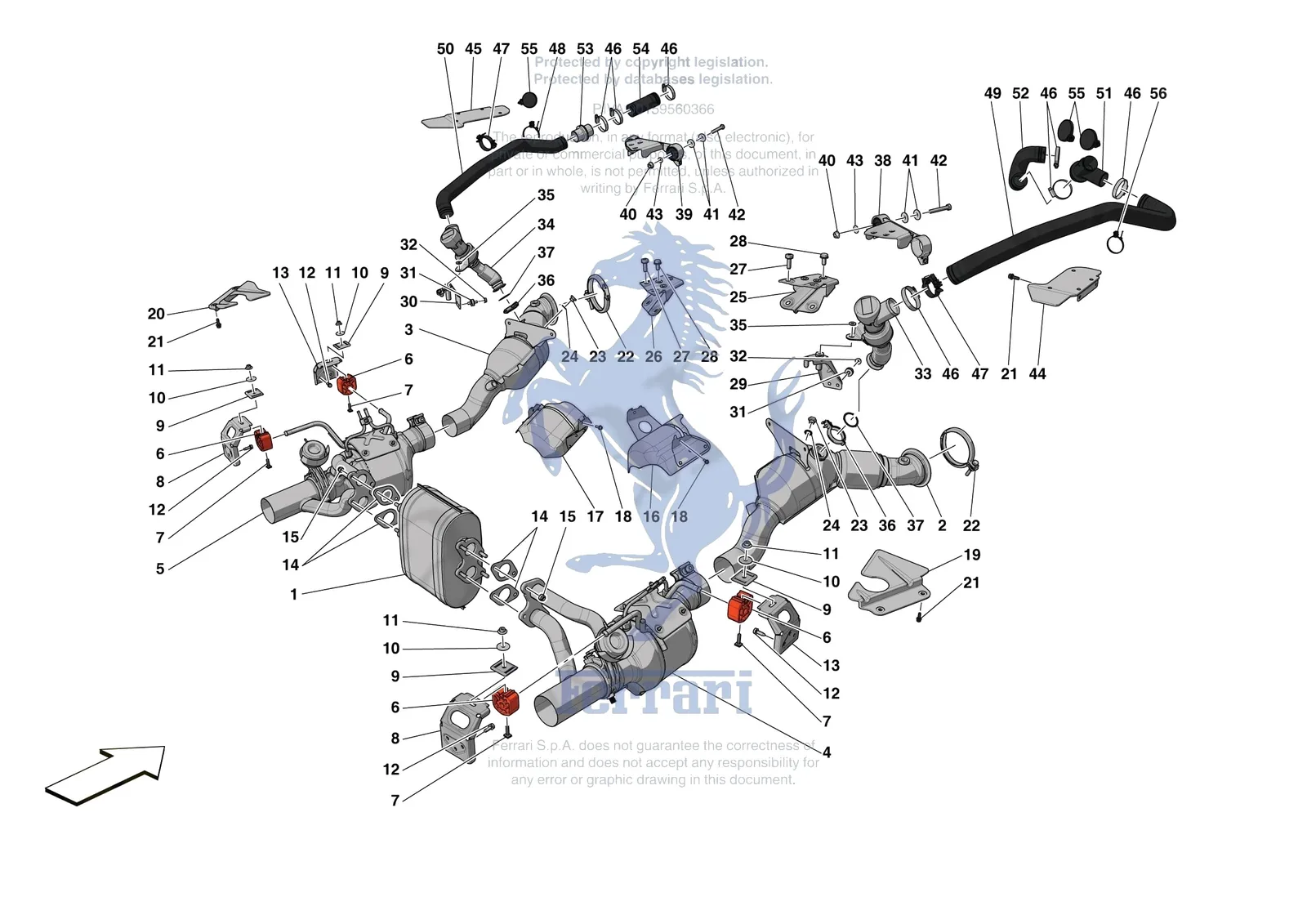

Ferrari F8 Tributo [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
15896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
10615670Ferrari Washer - 10615670SupersededOrder 12601374 instead
10615671Ferrari Washer - 10615671SupersededOrder 12601374 instead
10615674Ferrari Washer - 10615674SupersededOrder 12601374 instead
10615679Ferrari Washer - 10615679SupersededOrder 12601374 instead
12601370Ferrari Washer - 12601370SupersededOrder 12601374 instead
12601379Ferrari Washer - 12601379SupersededOrder 12601374 instead
13578311Ferrari Washer - 13578311SupersededOrder 13578324 instead
1844315Ferrari Silenziatore Centrale - 844315$1,488.27Special order, ships in 7-14 days
2876121Ferrari Catalizzatore Cpl Dx Bin50 - 876121$8,947.18Special order, ships in 7-14 days
2952043Ferrari Compl. RH Catalytic Converte - 952043$17,470.33Contact us to order
3876123Ferrari Catalizzatore Cpl Sx Bin50 - 876123$8,947.18Special order, ships in 7-14 days
3952045Ferrari Compl. LH Catalytic Converte - 952045$17,470.33Contact us to order
4900537Ferrari Compl. RH Gpf - 900537$17,817.12Contact us to order
5900538Ferrari Compl. LH Gpf - 900538$17,817.12Contact us to order
6289529Ferrari Rubber Exhaust Mount - 289529$74.30Available, ships in 3-6 days
7283425Ferrari Screw Squared Head 6x18.5 - 283425$4.79Available, ships in 3-6 days
8304317Ferrari Silencer Mounting Bracket - 304317$66.07Special order, ships in 7-14 days
8875282Ferrari Silencer Mounting Bracket - 875282$81.23Special order, ships in 7-14 days
9240598Ferrari Bracket Plate - 240598$21.60Available, ships in 3-6 days
1012648978Ferrari Washer - 12648978$1.04Available, ships in 3-6 days
1114039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
1211585024Ferrari Screw 6X20 - 11585024$0.63Available, ships in 3-6 days
13303052Ferrari Silencer Mounting Bracket - 303052$107.68Available, ships in 3-6 days
13875279Ferrari Silencer Mounting Bracket - 875279$81.23Special order, ships in 7-14 days
14342566Ferrari GPF Silencer Gasket - 342566$54.68Special order, ships in 7-14 days
15292945Ferrari Nut M8 x 1.25 - 292945$28.39Special order, ships in 7-14 days
16863888Ferrari RH Catalytic Converter Heat Shield - 863888$320.06Special order, ships in 7-14 days
17863890Ferrari LH Catalytic Converter Heat Shield - 863890$320.06Special order, ships in 7-14 days
18256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
19319366Ferrari RH Chassis Turbo Heat Shield - 319366$96.01Special order, ships in 7-14 days
20319367Ferrari LH Chassis Turbo Heat Shield - 319367$95.43Special order, ships in 7-14 days
20962333Ferrari Riparo Calore Turbo A Telaio - 962333$103.38Special order, ships in 7-14 days
21231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
22324642Ferrari Ring Clamp - 324642$74.39Available, ships in 3-6 days
23110860Ferrari Manifold Blanking Plug - 110860$25.09Available, ships in 3-6 days
2410298460Ferrari Washer - 10298460$1.10In stock
25300595Ferrari RH Catalytic Converter Bracket - 300595$155.10Special order, ships in 7-14 days
26300596Ferrari LH Catalytic Converter Bracket - 300596$155.10Special order, ships in 7-14 days
27216575Ferrari Screw - 216575$2.13Available, ships in 3-6 days
2811627826Ferrari Screw 8X18 - 11627826$1.92Available, ships in 3-6 days
29918345Ferrari Complete RH Exhaust Bracket - 918345$125.54Special order, ships in 7-14 days
30918346Ferrari Complete LH Exhuast Bracket - 918346$123.09Special order, ships in 7-14 days
31331701Ferrari Cylindrical Bushing With Scr - 331701$31.99Special order, ships in 7-14 days
3214040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
33879992Ferrari Compl. Pipe For RH Catalytic - 879992$1,639.98Special order, ships in 7-14 days
33952057Ferrari Compl. Pipe For RH Catalytic - 952057$1,762.38Special order, ships in 7-14 days
34879994Ferrari Compl. Pipe For LH Catalytic - 879994$1,639.98Special order, ships in 7-14 days
34952058Ferrari Compl. Pipe For LH Catalytic - 952058$1,762.38Special order, ships in 7-14 days
3512646624Ferrari Washer 6.15-15x1.5 - 12646624$0.40Available, ships in 3-6 days
36855141Ferrari V-Clamp - 855141$71.28Special order, ships in 7-14 days
37898288Ferrari Guarnizione Per Flangia Tubo - 898288$30.57Special order, ships in 7-14 days
38864778Ferrari Complete RH Catalytic Converter Bracket - 864778$393.93Special order, ships in 7-14 days
39864779Ferrari Complete LH Catalytic Converter Bracket - 864779$393.93Special order, ships in 7-14 days
4014059311Ferrari NUT - 14059311$0.52Available, ships in 3-6 days
4113578324Ferrari Washer 8.15-24x 2 - 13578324$0.44Available, ships in 3-6 days
4216044321Ferrari Screw M8 x 55 - 16044321$1.05Available, ships in 3-6 days
4312601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
44319368Ferrari RH Catalytic Converter Heat Shield - 319368$123.09Special order, ships in 7-14 days
45319369Ferrari LH Catalytic Converter Heat Shield - 319369$123.09Special order, ships in 7-14 days
46296781Ferrari Hose Clamp - 296781$5.59In stock
46296782Ferrari Hose Clamp 32-50mm - 296782$17.67Available, ships in 3-6 days
47292206Ferrari Pipe Retainer Clip - 292206$1.80Special order, ships in 7-14 days
48898766Ferrari Ring Clamp - 898766$6.10Special order, ships in 7-14 days
49916396Ferrari Tubo Spiralato D=38 L=900 - 916396$318.19Special order, ships in 7-14 days
50916397Ferrari Tubo Spiralato D=38 L=700 - 916397$293.71Special order, ships in 7-14 days
51893604Ferrari Tubo Porta Membrana D.38 A T - 893604Price on requestContact us for price and availability
52896497Ferrari Manicotto Da Membrana A Vole - 896497$173.76Special order, ships in 7-14 days
53786536Ferrari Membrane Holder Pipe - 786536$145.03Special order, ships in 7-14 days
54924330Ferrari Manicotto Di36.5 - 38.5 X L1 - 924330$63.61Special order, ships in 7-14 days
55217854Ferrari CLAMP - 217854$0.52Available, ships in 3-6 days
56145855Ferrari Clamp 208mm - 145855$0.98Special order, ships in 7-14 days
