Ferrari F8 Tributo — [MECHANICAL SYSTEM] - D.32 - STEERING BOX PIPES (diagram 0087)

Exploded view of the [mechanical system] - d.32 - steering box pipes on the Ferrari F8 Tributo, with 54 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

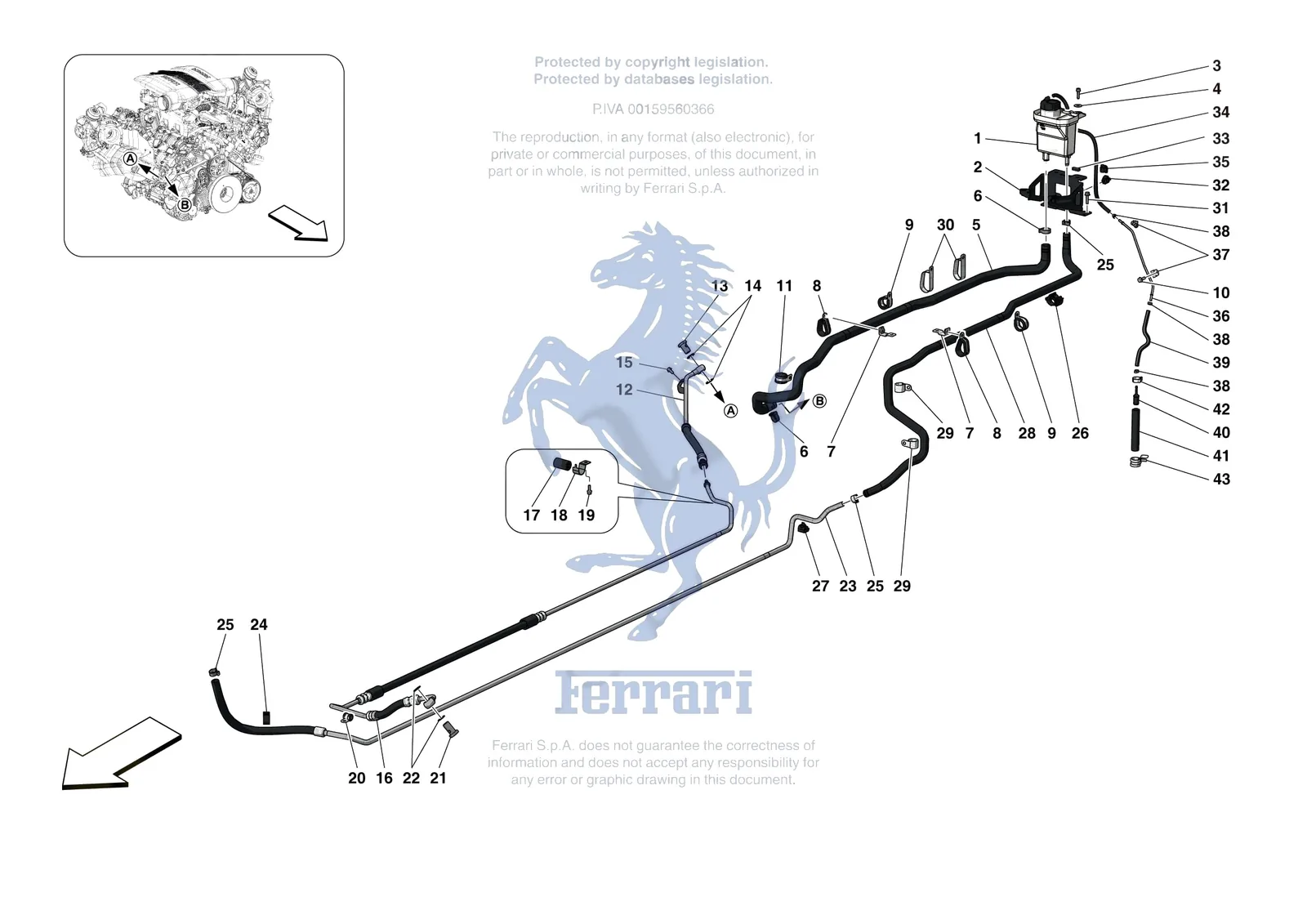

Ferrari F8 Tributo [MECHANICAL SYSTEM] - D.32 - STEERING BOX PIPES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
153419Ferrari Banjo Bolt - 153419SupersededOrder 184727 instead
228142Ferrari Clamp 20.2-22.8x9.2 - 228142SupersededOrder 13126070 instead
222826Ferrari Clip - 222826$5.44Special order, ships in 7-14 days
10261460Ferrari Copper Washer 16x24x1.5 - 10261460$0.63Available, ships in 3-6 days
307858Ferrari Pipe From Pump To Disconnector Union - 307858SupersededOrder 323703 instead
316484Ferrari Power Steering Fluid Reservoir Bracket Complete - 316484SupersededOrder 325786 instead
14432221Ferrari Screw - 14432221SupersededOrder 231619 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
14432224Ferrari Screw M6 x 22 - 14432224SupersededOrder 231619 instead
1315560Ferrari Power Steering Fluid Complete Reservoir - 315560$137.87Special order, ships in 7-14 days
2325786Ferrari Power Steering Fluid Reservoir Bracket Complete - 325786$179.73Special order, ships in 7-14 days
3231619Ferrari Screw M6 x 22 - 231619$0.54Available, ships in 3-6 days
412647704Ferrari Washer - 12647704$0.17Special order, ships in 7-14 days
5343235Ferrari Pipe From Tank To Pump - 343235$320.06Special order, ships in 7-14 days
613126370Ferrari Clamp - 13126370$2.38Available, ships in 3-6 days
7339428Ferrari Compl. Power Steering Pipe M - 339428$31.99Special order, ships in 7-14 days
8315226Ferrari Bracket With Sheath - 315226$8.07Special order, ships in 7-14 days
9338712Ferrari Bracket With Sheath - 338712$4.89Special order, ships in 7-14 days
1016296924Ferrari Screw M6 x 14 TE - 16296924$0.54Available, ships in 3-6 days
1110441990Ferrari P Clip Bracket With Sheath - 10441990$1.42Available, ships in 3-6 days
12323703Ferrari Pipe From Pump To Disconnector Union - 323703$492.43Special order, ships in 7-14 days
13245041Ferrari Union - 245041$88.61Special order, ships in 7-14 days
1410257060Ferrari/Maserati Copper Washer - 10257060$1.10In stock
15233600Ferrari/Maserati Screw - 233600$1.98In stock
16317214Ferrari Underbody Power Steering Delivery Pipe LHD - 317214$541.67Special order, ships in 7-14 days
16319930Ferrari Underbody Power Steering Delivery Pipe RHD - 319930$590.91Special order, ships in 7-14 days
17322605Ferrari Spacer - 322605$4.35Special order, ships in 7-14 days
18322054Ferrari Power Steering Pipe Mounting Bracket - 322054$12.04Special order, ships in 7-14 days
19231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
2010441290Ferrari P Clip Bracket With Sheath 28mm D.10 - 10441290$1.02Available, ships in 3-6 days
21184727Ferrari Banjo bolt For Union M16 x 1.5 - 184727$10.70Available, ships in 3-6 days
2211270360Ferrari Gasket - 11270360$0.71Available, ships in 3-6 days
23338174Ferrari Underbody Power Steering Ret - 338174$147.72Special order, ships in 7-14 days
24259508Ferrari Clip 15.8mm-18.5mm - 259508$1.25Special order, ships in 7-14 days
2513126070Ferrari Collar - 13126070$1.99Available, ships in 3-6 days
2513127070Ferrari Collar - 13127070SupersededOrder 13126070 instead
26292123Ferrari Clip D20 - 292123$0.90Special order, ships in 7-14 days
27263230Ferrari Clip - 263230$2.82Special order, ships in 7-14 days
28338768Ferrari Pipe From Underbody To Reser - 338768$344.69Special order, ships in 7-14 days
2910441790Ferrari/Maserati P Clip Bracket - 10441790$1.80In stock
30312281Ferrari Bracket - 312281$11.54Special order, ships in 7-14 days
3111612826Ferrari Screw M6 x 25 - 11612826$6.75Available, ships in 3-6 days
3284093700Ferrari Clip - 84093700$2.82Special order, ships in 7-14 days
3385180600Ferrari Zagato Seal - 85180600$3.26Special order, ships in 7-14 days
34118901Ferrari Rubber Pipe - 118901$9.31Special order, ships in 7-14 days
35262559Ferrari Clip - 262559$1.78Available, ships in 3-6 days
36314695Ferrari Power Steering Fluid Breather Pipe - 314695$51.67Special order, ships in 7-14 days
3710440890Ferrari P Clip Bracket With Sheath - 10440890$1.04Available, ships in 3-6 days
3813432570Ferrari Collar - 13432570$2.82Special order, ships in 7-14 days
39115149Ferrari Rubber Tube D. 3.5 - 8 x 150 - 115149$64.00Special order, ships in 7-14 days
40222606Ferrari Breather Pipe Union LHD - 222606$31.99Special order, ships in 7-14 days
41333724Ferrari Oil Breather Pipe - 333724$29.52Special order, ships in 7-14 days
4213126170Ferrari Clip - 13126170$2.82Available, ships in 3-6 days
43335915Ferrari Bracket With Sheath - 335915$20.41Special order, ships in 7-14 days
