Ferrari F8 Tributo — [VEHICLE TRIM] - E.01.02 - STRUCTURES AND ELEMENTS CENTRE OF VEHICLE (diagram 0096)

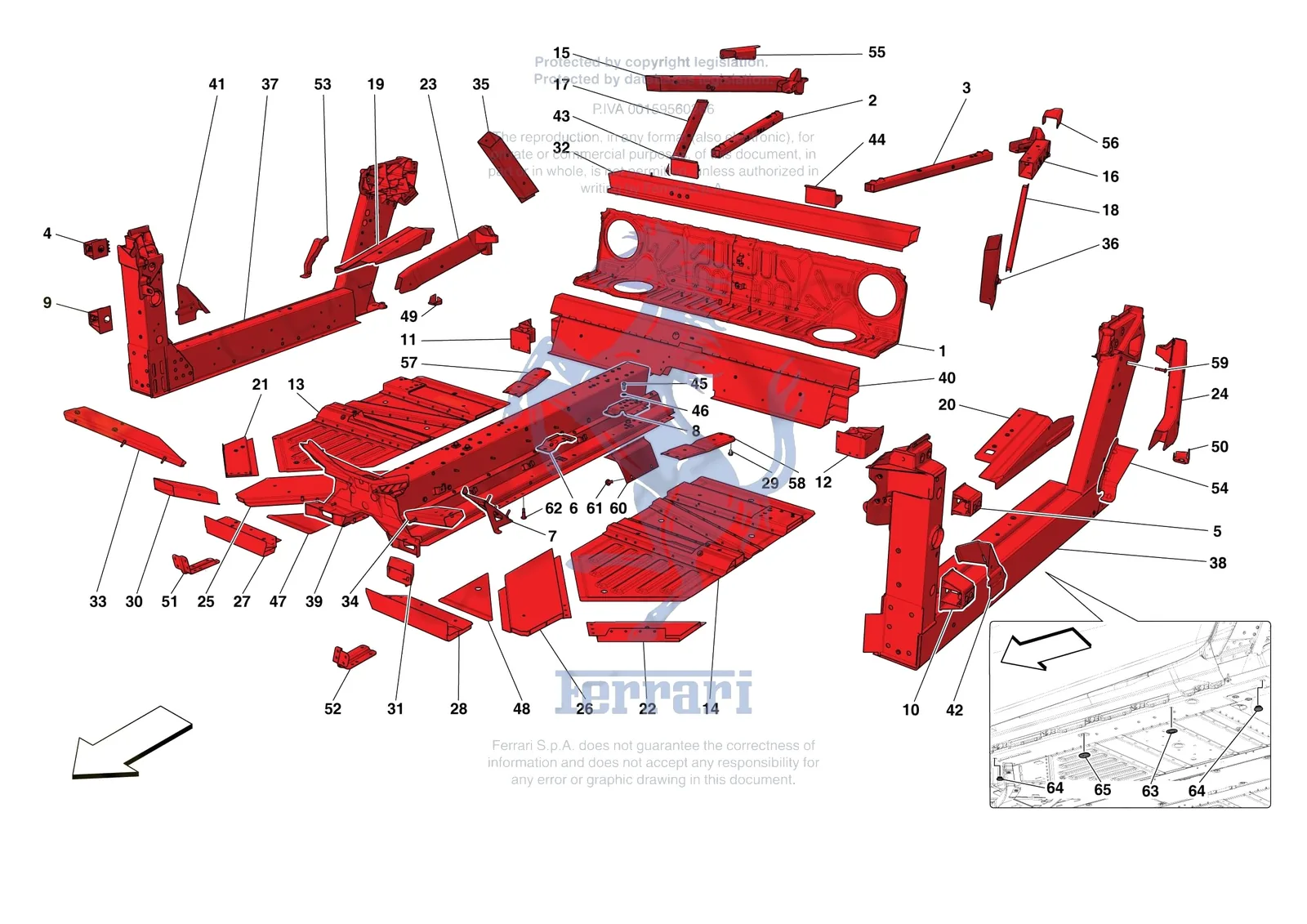

Exploded view of the [vehicle trim] - e.01.02 - structures and elements centre of vehicle on the Ferrari F8 Tributo, with 106 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari F8 Tributo [VEHICLE TRIM] - E.01.02 - STRUCTURES AND ELEMENTS CENTRE OF VEHICLE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
262621Ferrari Accelerator Pedal Fastener Bracket - 262621Price on requestContact us for price and availability
266326Ferrari Accelerator Pedal Fastener Bracket RHD - 266326$225.17Special order, ships in 7-14 days
318360Ferrari Brace Extrusion Between Torque Box And LH Tunnel RHD - 318360$783.26Special order, ships in 7-14 days
316704Ferrari Brace Extrusion Between Torque Box And RH Tunnel RHD - 316704$783.26Special order, ships in 7-14 days
318909Ferrari LH B-Pillar Truss RHD - 318909$489.54Special order, ships in 7-14 days
319016Ferrari LH Centre Sidewall RHD - 319016$15,812.61Contact us to order
301624Ferrari LH Front Casting Link Cross Member LHD - 301624$562.96Special order, ships in 7-14 days
318355Ferrari LH Front Casting Link Cross Member RHD - 318355$562.96Special order, ships in 7-14 days
255252Ferrari LH Fuel Pipe Guard Plate - 255252$293.71Special order, ships in 7-14 days
304740Ferrari LH Internal Box Member On Removable Subframe - 304740SupersededOrder 985304740 instead
985300894Ferrari LH Lower Front Suspension Cross Member Reinforcement - 985300894SupersededOrder 300894 instead
281117Ferrari LH Rear Seat Fastener Bracket - 281117$215.38Special order, ships in 7-14 days
985290920Ferrari LH Rear Seat Fastener Bracket - 985290920Price on requestContact us for price and availability
985262866Ferrari LH Seat Guide Rail Fastener Bracket - 985262866SupersededOrder 262866 instead
318913Ferrari LH Tunnel Upper Front Diagonal Brace RHD - 318913SupersededOrder 985318913 instead
272632Ferrari LH Upper Bracket Door Hinge Reinforcement Complete - 272632SupersededOrder 985272632 instead
312054Ferrari Rear Firewall - 312054$2,074.75Contact us to order
318911Ferrari RH B-Pillar Truss RHD - 318911$489.54Special order, ships in 7-14 days
319018Ferrari RH Centre Sidewall RHD - 319018$15,812.61Contact us to order
318915Ferrari RH Front Diagonal Brace RHD - 318915$416.09Special order, ships in 7-14 days
255255Ferrari RH Fuel Pipe Guard Plate - 255255$293.71Special order, ships in 7-14 days
304741Ferrari RH Internal Box Member On Removable Subframe - 304741SupersededOrder 985304741 instead
307806Ferrari RH Lower Diagonal Brace Connected To Tunnel - 307806SupersededOrder 985307802 instead
985300895Ferrari RH Lower Front Suspension Cross Member Reinforcement - 985300895SupersededOrder 300895 instead
281118Ferrari RH Rear Seat Fastener Bracket - 281118$215.38Special order, ships in 7-14 days
985290921Ferrari RH Rear Seat Fastener Bracket - 985290921Price on requestContact us for price and availability
985262867Ferrari RH Seat Guide Rail Fastener Bracket - 985262867SupersededOrder 262867 instead
272633Ferrari RH Upper Bracket Door Hinge Complete - 272633$636.39Special order, ships in 7-14 days
1985312054Ferrari Rear Firewall - 985312054$2,345.00Contact us to order
2985304741Ferrari RH Internal Box Member On Removable Subframe - 985304741$763.27Special order, ships in 7-14 days
3985304740Ferrari LH Internal Box Member On Removable Subframe - 985304740$763.27Special order, ships in 7-14 days
4985272633Ferrari RH Upper Bracket Door Hinge Complete - 985272633$787.90Special order, ships in 7-14 days
5985272632Ferrari LH Upper Bracket Door Hinge Reinforcement Complete - 985272632$837.14Special order, ships in 7-14 days
6262866Ferrari LH Seat Guide Rail Fastener Bracket - 262866$174.80Special order, ships in 7-14 days
6262867Ferrari RH Seat Guide Rail Fastener Bracket - 262867$174.80Special order, ships in 7-14 days
7985283681Ferrari Accelerator Pedal Fastener Bracket LHD - 985283681Price on requestContact us for price and availability
7985266326Ferrari Accelerator Pedal Fastener Bracket RHD - 985266326$467.80Special order, ships in 7-14 days
8290920Ferrari LH Rear Seat Fastener Bracket - 290920$192.03Special order, ships in 7-14 days
8290921Ferrari RH Rear Seat Fastener Bracket - 290921$192.03Special order, ships in 7-14 days
9985271953Ferrari RH Lower Bracket Door Hinge Reinforcement Complete - 985271953$664.78Special order, ships in 7-14 days
10985271951Ferrari LH Lower Bracket Door Hinge Reinforcement Complete - 985271951$714.03Special order, ships in 7-14 days
11985300796Ferrari RH Connector Piece Extrusion - 985300796$3,904.41Special order, ships in 7-14 days
12985300794Ferrari LH Connector Piece Extrusion - 985300794$3,904.41Special order, ships in 7-14 days
13985305372Ferrari RH Half Floor Panel Complete - 985305372$2,680.32Contact us to order
14985305368Ferrari LH Half Floor Panel Complete - 985305368$10,184.36Contact us to order
15985300646Ferrari RH Upper Rear Diagonal Brace - 985300646$5,890.96Special order, ships in 7-14 days
16985300645Ferrari LH Upper Rear Diagonal Brace - 985300645$5,587.89Special order, ships in 7-14 days
17985309294Ferrari RH Suspension Casting Brace - 985309294$664.78Special order, ships in 7-14 days
18985309293Ferrari LH Suspension Casting Brace - 985309293$566.30Special order, ships in 7-14 days
19985300903Ferrari RH B-Pillar Truss LHD - 985300903$709.82Special order, ships in 7-14 days
19985318911Ferrari RH B-Pillar Truss RHD - 985318911$636.39Special order, ships in 7-14 days
20985300901Ferrari LH B-Pillar Truss LHD - 985300901$636.39Special order, ships in 7-14 days
20985318909Ferrari LH B-Pillar Truss RHD - 985318909$709.82Special order, ships in 7-14 days
21985303064Ferrari RH Floor Lateral Extrusion - 985303064$714.03Special order, ships in 7-14 days
22985303062Ferrari LH Floor Lateral Extrusion - 985303062$714.03Special order, ships in 7-14 days
23985317833Ferrari RH Subframe Connector Crash Box - 985317833$5,163.70Special order, ships in 7-14 days
24985317829Ferrari LH Subframe Connector Crash Box - 985317829$5,163.70Special order, ships in 7-14 days
25985311870Ferrari Brace Extrusion Between Torque Box And RH Tunnel LHD - 985311870$886.38Special order, ships in 7-14 days
25985316704Ferrari Brace Extrusion Between Torque Box And RH Tunnel RHD - 985316704$1,034.12Special order, ships in 7-14 days
26985311865Ferrari Brace Extrusion Between Torque Box And LH Tunnel LHD - 985311865$886.38Special order, ships in 7-14 days
26985318360Ferrari Brace Extrusion Between Torque Box And LH Tunnel RHD - 985318360$911.01Special order, ships in 7-14 days
27985301625Ferrari RH Front Casting Link Cross Member - 985301625$763.27Special order, ships in 7-14 days
28985301624Ferrari LH Front Casting Link Cross Member LHD - 985301624$763.27Special order, ships in 7-14 days
28985318355Ferrari LH Front Casting Link Cross Member RHD - 985318355$763.27Special order, ships in 7-14 days
2916287024Ferrari Screw - 16287024$1.00In stock
30985307802Ferrari Lower RH Diagonal Brace Conn - 985307802$443.17Special order, ships in 7-14 days
31985307805Ferrari LH Lower Diagonal Brace Connected To Tunnel - 985307805$443.17Special order, ships in 7-14 days
32985304362Ferrari Traversa Serbatoio Cpl - 985304362$1,199.37Special order, ships in 7-14 days
33985307878Ferrari RH Front Diagonal Brace LHD - 985307878$714.03Special order, ships in 7-14 days
33985318915Ferrari RH Front Diagonal Brace RHD - 985318915$664.78Special order, ships in 7-14 days
34985307882Ferrari LH Tunnel Upper Front Diagonal Brace LHD - 985307882$640.17Special order, ships in 7-14 days
34985318913Ferrari LH Tunnel Upper Front Diagonal Brace RHD - 985318913$664.78Special order, ships in 7-14 days
35985308659Ferrari RH Door Rear Pillar Brace - 985308659$861.77Special order, ships in 7-14 days
36985306367Ferrari LH Door Rear Pillar Brace - 985306367$812.51Special order, ships in 7-14 days
37985300620Ferrari RH Centre Sidewall LHD - 985300620$28,446.72Contact us to order
37985319018Ferrari RH Centre Sidewall RHD - 985319018$27,908.93Contact us to order
38985300619Ferrari LH Centre Sidewall LHD - 985300619$28,446.72Contact us to order
38985319016Ferrari LH Centre Sidewall RHD - 985319016$27,908.93Contact us to order
39985852156Ferrari Compl. Tunnel - 985852156$24,954.31Contact us to order
39985894668Ferrari Compl. Tunnel - 985894668$24,954.31Contact us to order
40985300798Ferrari Sill Link Cross Member - 985300798$10,774.84Contact us to order
41985308762Ferrari Controventatura Montante - 985308762$367.14Special order, ships in 7-14 days
42985308761Ferrari Controventatura Montante - 985308761$367.14Special order, ships in 7-14 days
43985304706Ferrari RH Upper Belt Joint Casting - 985304706$1,009.51Special order, ships in 7-14 days
44985304705Ferrari LH Upper Belt Joint Casting - 985304705$1,083.38Special order, ships in 7-14 days
4584260600Ferrari Screw M8 x 20 - 84260600$344.21Special order, ships in 7-14 days
4613579421Ferrari WASHER - 13579421Price on requestContact us for price and availability
47985248977Ferrari RH Front Floor Endpiece - 985248977$393.93Special order, ships in 7-14 days
48985248976Ferrari LH Front Floor Endpiece - 985248976$393.93Special order, ships in 7-14 days
49985322620Ferrari RH Skillet Mounting Bracket - 985322620$246.20Special order, ships in 7-14 days
50985322828Ferrari LH Skillet Mounting Bracket - 985322828$270.83Special order, ships in 7-14 days
51300895Ferrari RH Lower Front Suspension Cross Member Reinforcement - 300895$78.76Special order, ships in 7-14 days
52300894Ferrari LH Lower Front Suspension Cross Member Reinforcement - 300894$78.76Special order, ships in 7-14 days
53985304405Ferrari Front Bracket Fastening RH Rear Flank To Chassis - 985304405$320.06Special order, ships in 7-14 days
54985304404Ferrari Front Bracket Fastening LH Rear Flank To Chassis - 985304404$295.43Special order, ships in 7-14 days
55985313288Ferrari RH Bodyshell Subframe Mounting - 985313288$342.66Special order, ships in 7-14 days
56985313286Ferrari LH Bodyshell Subframe Mounting - 985313286$318.19Special order, ships in 7-14 days
57985311385Ferrari RH Fuel Pipe Guard Plate - 985311385$960.25Special order, ships in 7-14 days
58985311384Ferrari LH Fuel Pipe Guard Plate - 985311384$960.25Special order, ships in 7-14 days
59204430Ferrari Rivet Tt Fi D. 6 4X19 2 - 204430$2.82Available, ships in 3-6 days
60985317392Ferrari Internal Tunnel Reinforcemen - 985317392$640.17Special order, ships in 7-14 days
6111625824Ferrari Screw 6x18 - 11625824$0.71Available, ships in 3-6 days
6214639791Ferrari Rivet D. 6.4X 14.1 - 14639791$2.59Special order, ships in 7-14 days
6385492800Ferrari Acoustic Closure Cap 28 x 22 - 85492800$3.41Special order, ships in 7-14 days
6482299600Ferrari Plug For Front Master Point - 82299600$5.00Available, ships in 3-6 days
6582882400Ferrari Cap For Slot - 82882400$7.19Special order, ships in 7-14 days

All F8 Tributo diagrams
