Ferrari F8 Tributo — [VEHICLE TRIM] - E.01.03 - STRUCTURES AND ELEMENTS REAR OF VEHICLE (diagram 0097)

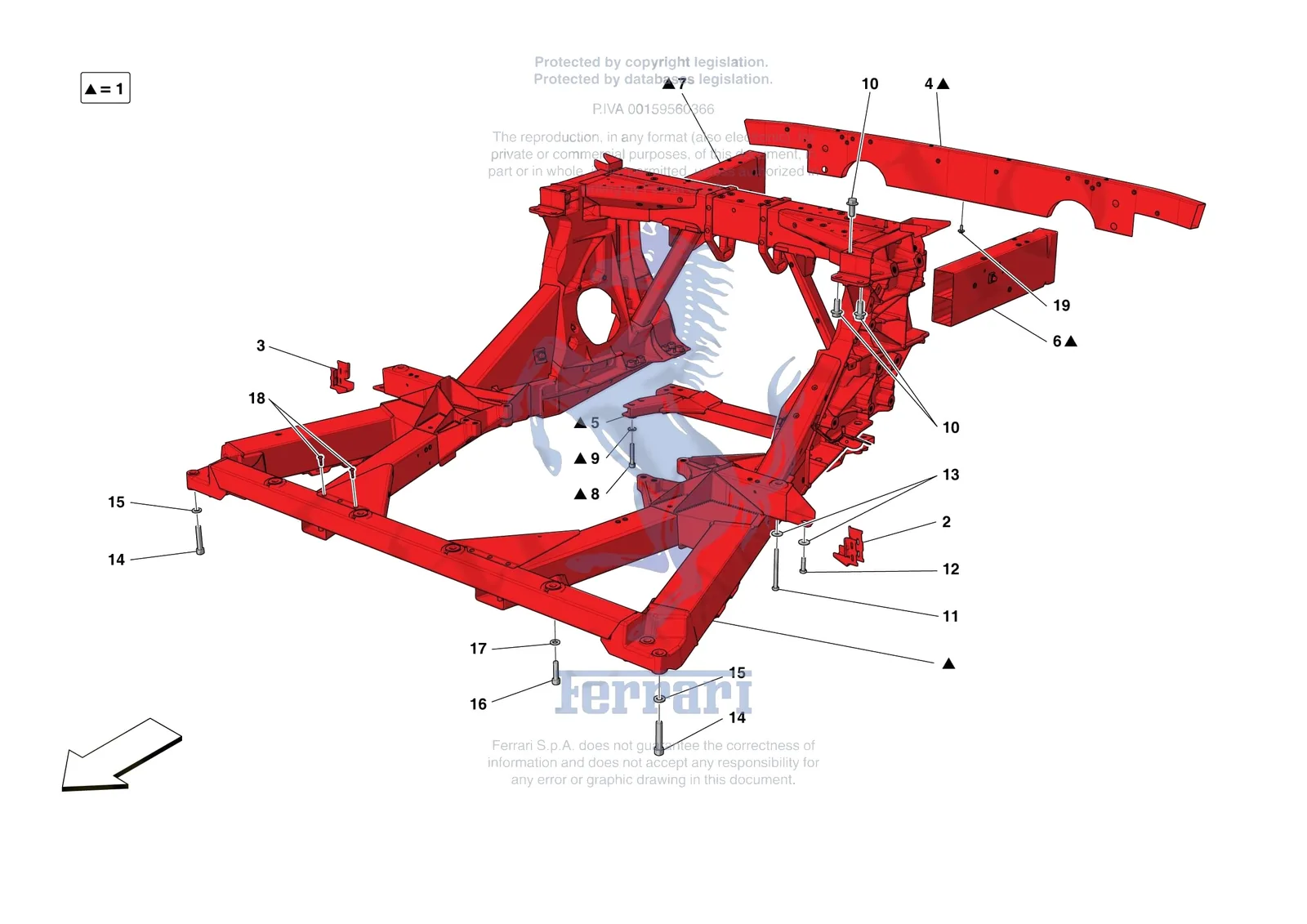

Exploded view of the [vehicle trim] - e.01.03 - structures and elements rear of vehicle on the Ferrari F8 Tributo, with 24 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Tributo [VEHICLE TRIM] - E.01.03 - STRUCTURES AND ELEMENTS REAR OF VEHICLE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-tributo/0097.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 321393 | Ferrari LH Rear Substructure Mounting Bracket - 321393 | $141.95 | Special order, ships in 7-14 days | |
| 14307721 | Ferrari Screw - 14307721 | $2.61 | Special order, ships in 7-14 days | |
| 128944 | Ferrari Washer D10.2-20 - 128944 | $3.68 | Available, ships in 3-6 days | |
| 1 | 985864411 | Ferrari Rear Subframe - 985864411 | $31,349.49 | Contact us to order |
| 2 | 985321393 | Ferrari LH Rear Substructure Mounting Bracket - 985321393 | $344.69 | Special order, ships in 7-14 days |
| 3 | 985321394 | Ferrari LH Rear Substructure Mounting Bracket - 985321394 | $344.69 | Special order, ships in 7-14 days |
| 4 | 985309018 | Ferrari Rear Bumper Fastening Cross Member - 985309018 | $2,274.65 | Special order, ships in 7-14 days |
| 5 | 985317219 | Ferrari Lower Gearbox Mounting Cross - 985317219 | $2,110.49 | Special order, ships in 7-14 days |
| 6 | 985305361 | Ferrari LH Rear Strut - 985305361 | $1,083.38 | Special order, ships in 7-14 days |
| 7 | 985305362 | Ferrari RH Rear Strut - 985305362 | $1,206.48 | Special order, ships in 7-14 days |
| 8 | 14308124 | Ferrari Screw - 14308124 | $14.41 | Special order, ships in 7-14 days |
| 9 | 12642524 | Ferrari Washer - 12642524 | $0.40 | Available, ships in 3-6 days |
| 10 | 239959 | Ferrari Screw 12x175x30 - 239959 | $15.29 | Special order, ships in 7-14 days |
| 11 | 16045124 | Ferrari Bolt M8 x 95 - 16045124 | $4.35 | Available, ships in 3-6 days |
| 12 | 16043824 | Ferrari Bolt M8 x 30 - 16043824 | $0.86 | Available, ships in 3-6 days |
| 13 | 13578305 | Ferrari Washer - 13578305 | $0.17 | Available, ships in 3-6 days |
| 14 | 239965 | Ferrari Screw M12 x 1.75 x 6 - 239965 | $83.15 | Special order, ships in 7-14 days |
| 15 | 10520004 | Ferrari Washer - 10520004 | Superseded | Order 10520024 instead |
| 15 | 10520024 | Ferrari Washer - 10520024 | $4.35 | Available, ships in 3-6 days |
| 16 | 14307724 | Ferrari Screw - 14307724 | $3.47 | Special order, ships in 7-14 days |
| 17 | 13550424 | Ferrari Washer - 13550424 | $0.31 | Available, ships in 3-6 days |
| 17 | 13550401 | Ferrari Washer 10.2-20x2 - 13550401 | $0.31 | Available, ships in 3-6 days |
| 18 | 14639591 | Ferrari Rivet - 14639591 | $3.03 | Available, ships in 3-6 days |
| 19 | 81591700 | Ferrari Screw TE M6 x 18 with washer - 81591700 | $4.12 | Available, ships in 3-6 days |
