Ferrari F8 Tributo — [VEHICLE TRIM] - E.15 - CENTRE SHIELDS (diagram 0114)

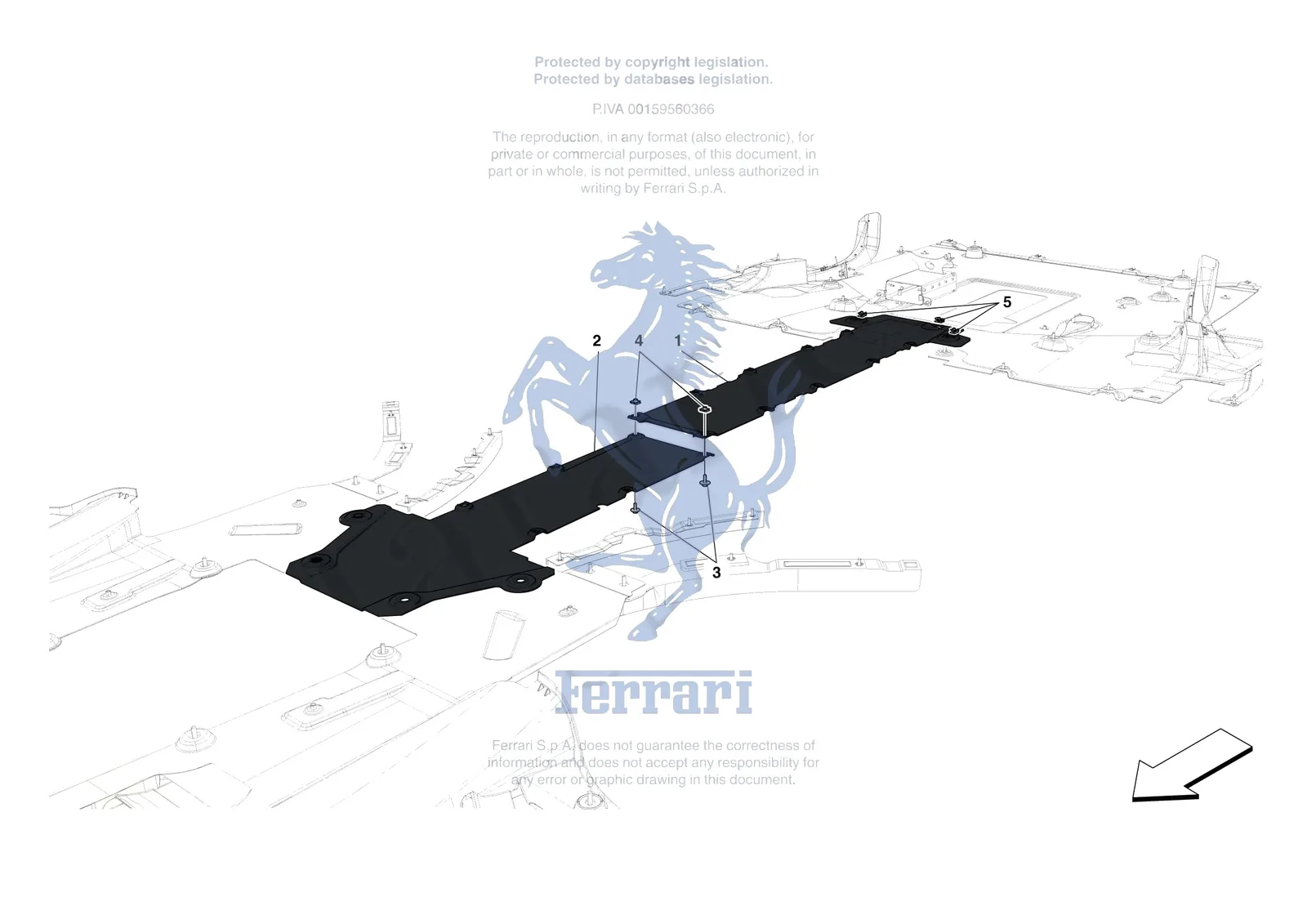

Exploded view of the [vehicle trim] - e.15 - centre shields on the Ferrari F8 Tributo, with 5 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Tributo [VEHICLE TRIM] - E.15 - CENTRE SHIELDS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-tributo/0114.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 87497100 | Ferrari Central Underbody Shield - 87497100 | $270.83 | Special order, ships in 7-14 days |
| 2 | 82955800 | Ferrari Central Underbody Shield Front Section - 82955800 | $320.06 | Special order, ships in 7-14 days |
| 3 | 81290900 | Ferrari Screw With Double Washer - 81290900 | $1.42 | In stock |
| 4 | 83792100 | Ferrari Clip - 83792100 | $1.88 | Available, ships in 3-6 days |
| 4 | 14189071 | Ferrari M6 x 1Screw clip - 14189071 | $1.36 | Available, ships in 3-6 days |
