Ferrari F8 Tributo — [VEHICLE TRIM] - E.24 - REAR AIR INTAKES (diagram 0123)

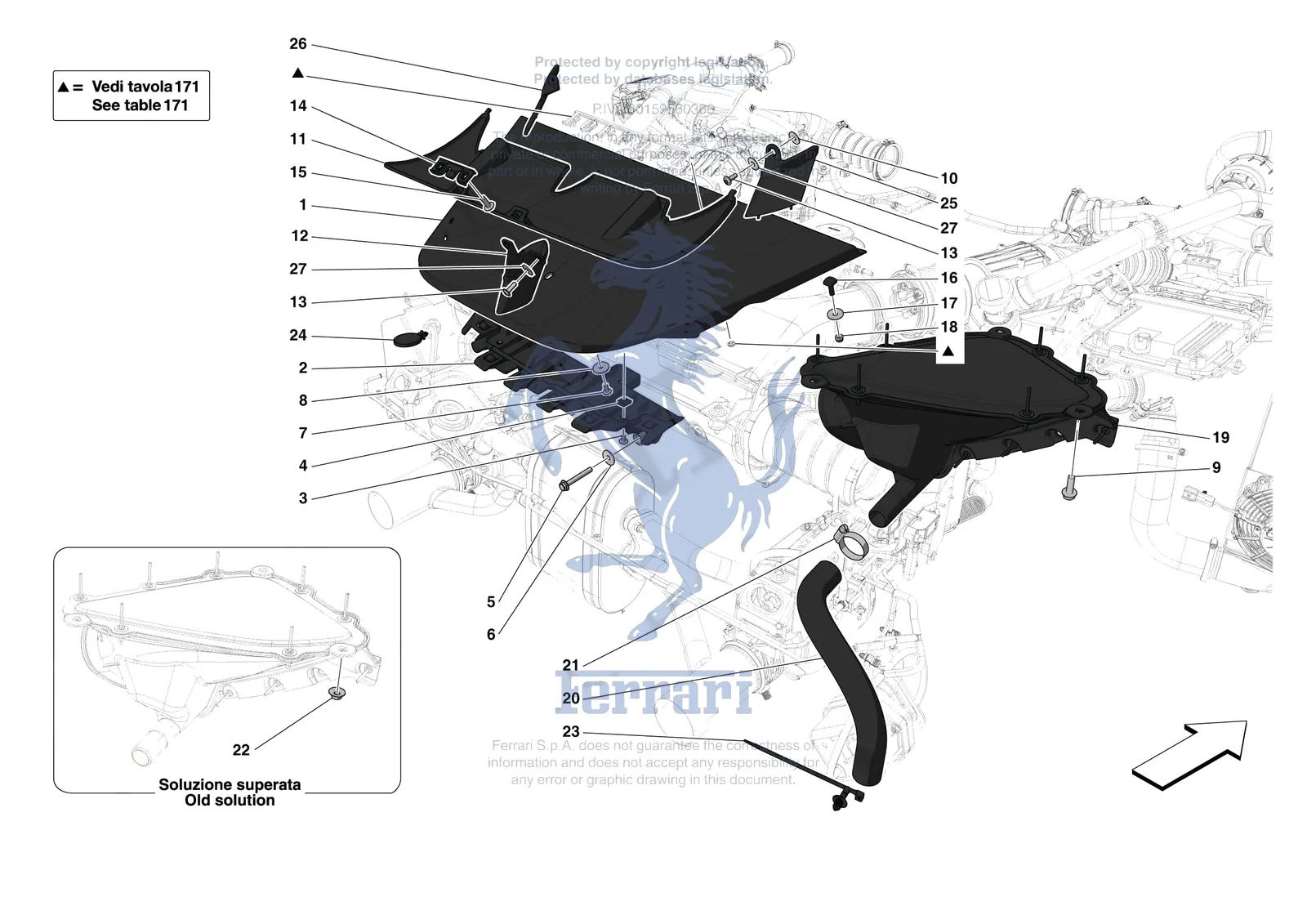

Exploded view of the [vehicle trim] - e.24 - rear air intakes on the Ferrari F8 Tributo, with 42 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Tributo [VEHICLE TRIM] - E.24 - REAR AIR INTAKES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-tributo/0123.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 306631 | Ferrari Clip - 306631 | $7.59 | Special order, ships in 7-14 days | |
| 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead | |
| 12575411 | Ferrari Nyloc Nut M6 x 6 - 12575411 | Superseded | Order 12575421 instead | |
| 73607886 | Ferrari Rear Spoiler Inspection Cover - 73607886 | $807.74 | Special order, ships in 7-14 days | |
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 12638108 | Ferrari Washer - 12638108 | Superseded | Order 12638178 instead | |
| 12638177 | Ferrari Washer - 12638177 | Superseded | Order 12638178 instead | |
| 61276300 | Ferrari Washer - 61276300 | Superseded | Order 12638178 instead | |
| 1 | 70006737 | Ferrari REAR SPOILER DUCT LOWER WALL - 70006737 | Price on request | Contact us for price and availability |
| 1 | 890808 | Ferrari Rear Spoiler Duct Lower Wall - 890808 | $9,385.44 | Special order, ships in 7-14 days |
| 1 | 903020 | Ferrari Rear Spoiler Duct Lower Wall - 903020 | $1,811.33 | Special order, ships in 7-14 days |
| 2 | 908888 | Ferrari Complete Centre Bracket - Rear Spoiler Duct - 908888 | $344.69 | Special order, ships in 7-14 days |
| 3 | 85692000 | Ferrari SCREW - 85692000 | $0.65 | Available, ships in 3-6 days |
| 4 | 14370874 | Ferrari Bracket - 14370874 | $1.17 | Special order, ships in 7-14 days |
| 5 | 13832611 | Ferrari Screw 6X45 - 13832611 | $1.94 | Available, ships in 3-6 days |
| 6 | 12647778 | Ferrari Cup Washer - 12647778 | $0.82 | Available, ships in 3-6 days |
| 7 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 8 | 12624124 | Ferrari Washer 5.15-22X - 12624124 | $2.82 | Available, ships in 3-6 days |
| 9 | 81591700 | Ferrari Screw TE M6 x 18 with washer - 81591700 | $4.12 | Available, ships in 3-6 days |
| 10 | 62769800 | Ferrari Washer - 62769800 | $0.44 | Available, ships in 3-6 days |
| 11 | 862385 | Ferrari Rear Spoiler Inspection Cover - 862385 | Superseded | Order 73607886 instead |
| 12 | 862350 | Ferrari Centre Partition Of Rear Spo - 862350 | $127.27 | Special order, ships in 7-14 days |
| 13 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 14 | 867200 | Ferrari Bracket Coperchio Ispez. Spo - 867200 | $17.71 | Special order, ships in 7-14 days |
| 15 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 16 | 84123100 | Ferrari Square Headed Screw - 84123100 | $30.44 | Special order, ships in 7-14 days |
| 17 | 12647724 | Ferrari Washer - 12647724 | $0.31 | Available, ships in 3-6 days |
| 18 | 12575421 | Ferrari Nyloc Nut M6 x 6 - 12575421 | $0.40 | Available, ships in 3-6 days |
| 18 | 102741 | Ferrari/Maserati Nyloc Nut M6 - 102741 | $0.45 | In stock |
| 19 | 912592 | Ferrari Compl. LH Engine Intake Duct - 912592 | $443.17 | Special order, ships in 7-14 days |
| 19 | 912590 | Ferrari Compl. RH Engine Intake Duct - 912590 | $443.17 | Special order, ships in 7-14 days |
| 20 | 815003 | Ferrari Corrugated Pipe - 815003 | $4.91 | Special order, ships in 7-14 days |
| 21 | 178053 | Ferrari Clip - 178053 | $2.64 | In stock |
| 21 | 296779 | Ferrari Hose Clamp 20 to 32mm - 296779 | Superseded | Order 178053 instead |
| 22 | 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days |
| 23 | 306756 | Ferrari Clip - 306756 | $1.59 | Special order, ships in 7-14 days |
| 24 | 217854 | Ferrari CLAMP - 217854 | $0.52 | Available, ships in 3-6 days |
| 25 | 903021 | Ferrari RH Lateral Partition Of Rear - 903021 | $146.84 | Special order, ships in 7-14 days |
| 26 | 903022 | Ferrari LH Lateral Partition Of Rear - 903022 | $146.84 | Special order, ships in 7-14 days |
| 27 | 12638178 | Ferrari Washer 5.45-14x1 - 12638178 | $0.13 | Available, ships in 3-6 days |
