Ferrari F8 Tributo — [VEHICLE TRIM] - E.32 - DOOR SEALS (diagram 0133)

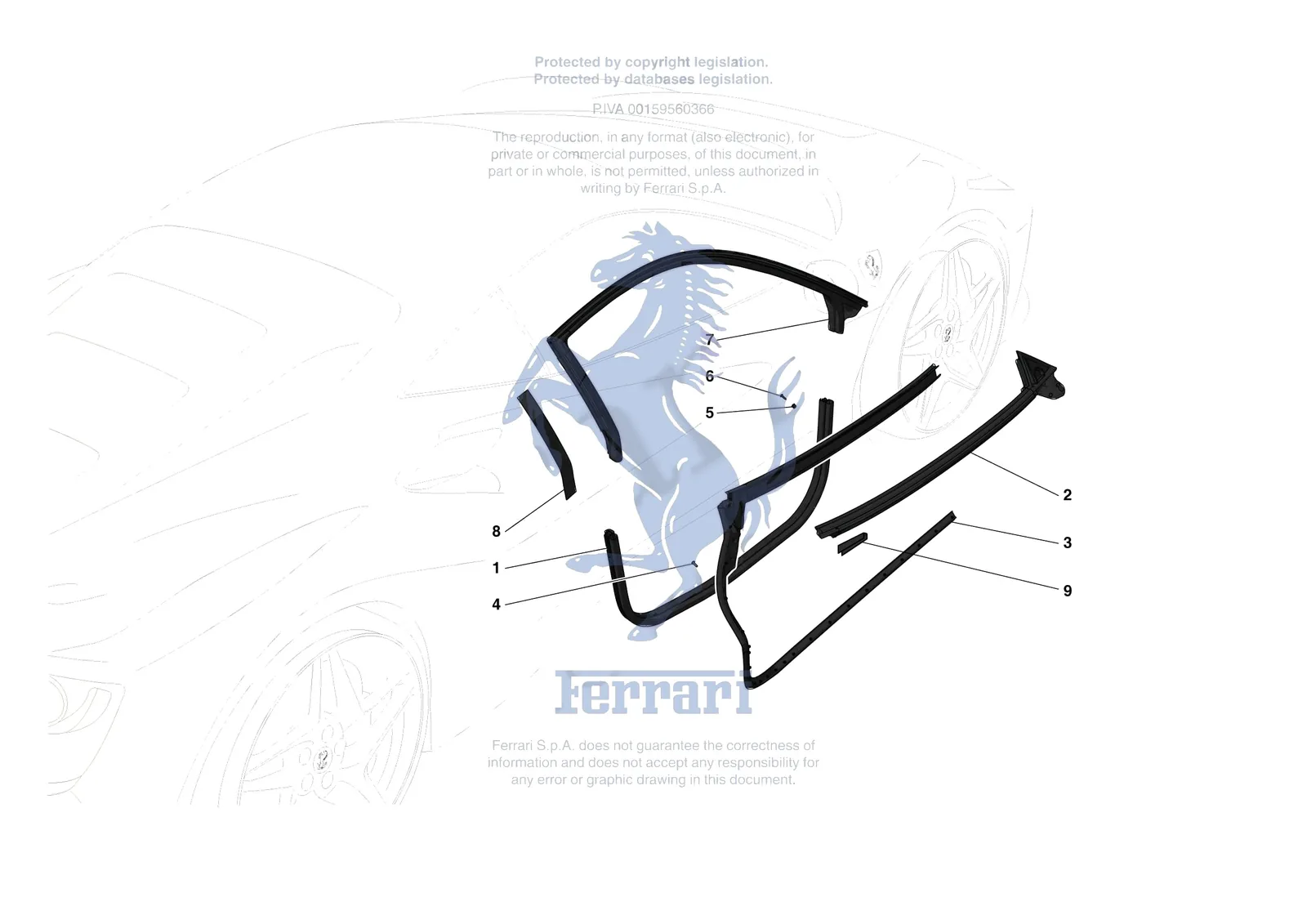

Exploded view of the [vehicle trim] - e.32 - door seals on the Ferrari F8 Tributo, with 18 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Tributo [VEHICLE TRIM] - E.32 - DOOR SEALS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-tributo/0133.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 65841900 | Ferrari Gasket - 65841900 | $1.80 | Special order, ships in 7-14 days | |
| 67934100 | Ferrari Gasket - 67934100 | $2.13 | Special order, ships in 7-14 days | |
| 82243600 | Ferrari Lower Seal - 82243600 | Superseded | Order 83987400 instead | |
| 1 | 83987400 | Ferrari Lower Seal - 83987400 | $243.74 | Special order, ships in 7-14 days |
| 2 | 86742800 | Ferrari LH Door Outer Perimeter Seal - 86742800 | $503.37 | Special order, ships in 7-14 days |
| 2 | 86742900 | Ferrari RH Door Outer Perimeter Seal - 86742900 | $503.37 | Special order, ships in 7-14 days |
| 3 | 86743000 | Ferrari LH Door Inner Perimeter Seal - 86743000 | $590.91 | Special order, ships in 7-14 days |
| 3 | 86743100 | Ferrari RH Door Inner Perimeter Seal - 86743100 | $590.91 | Special order, ships in 7-14 days |
| 4 | 63343400 | Ferrari Screw 4x15 - 63343400 | $5.02 | Available, ships in 3-6 days |
| 5 | 14115885 | Ferrari Fixing Block - 14115885 | $0.31 | Available, ships in 3-6 days |
| 6 | 15689801 | Ferrari Screw - 15689801 | $0.17 | Available, ships in 3-6 days |
| 6 | 15689809 | Ferrari Screw D. 4.2 x 19 TBFIC - 15689809 | $0.27 | Available, ships in 3-6 days |
| 7 | 770646 | Ferrari LH Door Perimeter Seal - 770646 | $1,305.46 | Special order, ships in 7-14 days |
| 7 | 86743300 | Ferrari Lh Door Perimeter Seal - 86743300 | Superseded | Order 770646 instead |
| 7 | 770647 | Ferrari RH Door Perimeter Seal - 770647 | $1,305.46 | Special order, ships in 7-14 days |
| 7 | 86743200 | Ferrari Rh Door Perimeter Seal - 86743200 | Superseded | Order 770647 instead |
| 8 | 815292 | Ferrari Adhesive Strip - 815292 | $10.83 | Special order, ships in 7-14 days |
| 9 | 83332100 | Ferrari Gasket - 83332100 | $3.91 | Special order, ships in 7-14 days |
