Ferrari F8 Tributo — [VEHICLE TRIM] - E.33 - FRONT LID TRIM (diagram 0134)

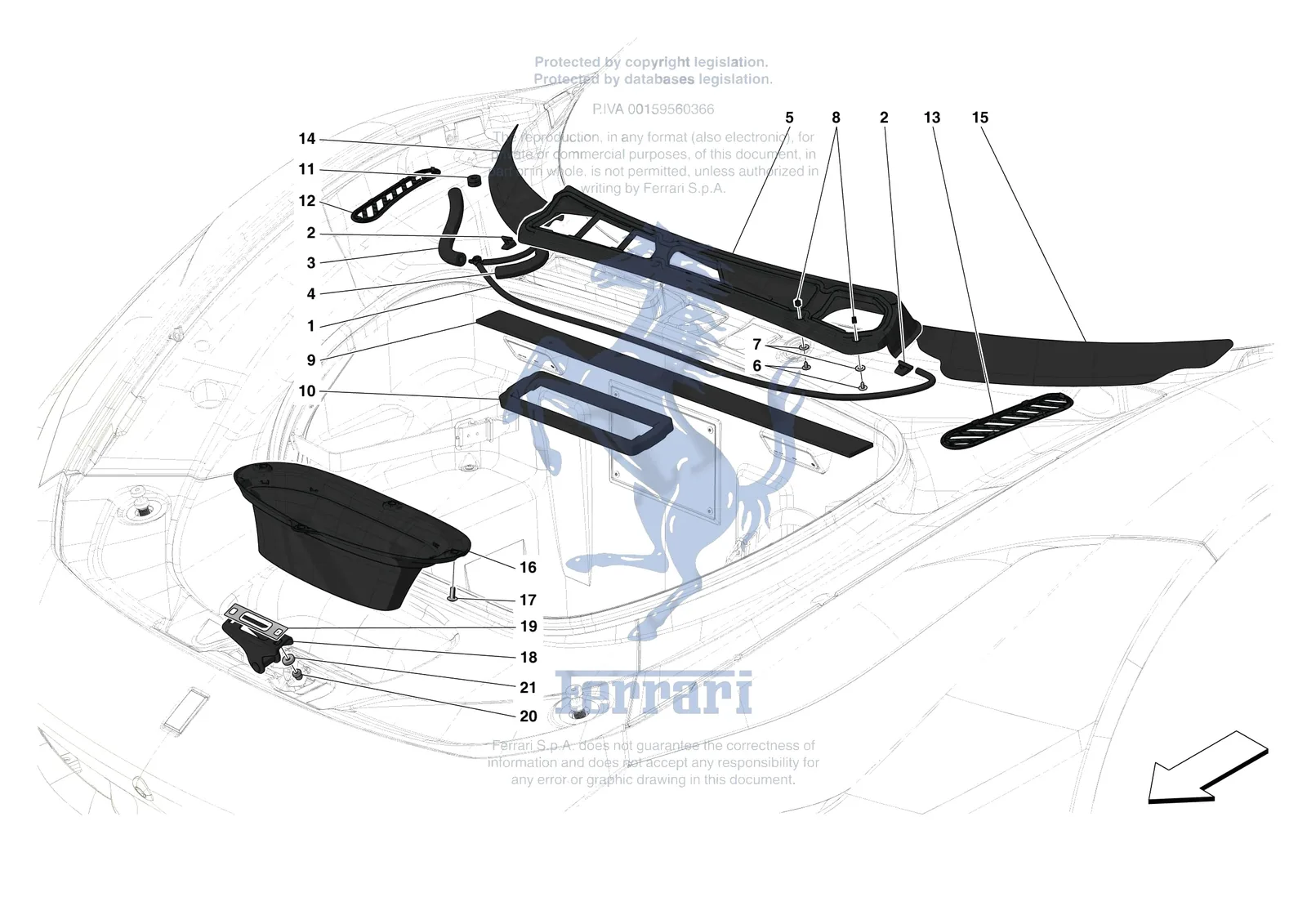

Exploded view of the [vehicle trim] - e.33 - front lid trim on the Ferrari F8 Tributo, with 29 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Tributo [VEHICLE TRIM] - E.33 - FRONT LID TRIM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-tributo/0134.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 264882 | Ferrari Dynamic Intake Filler Foam - 264882 | Superseded | Order 83081700 instead | |
| 86828900 | Ferrari LH Cosmetic Cover - 86828900 | Superseded | Order 874734 instead | |
| 86829000 | Ferrari RH Cosmetic Trim - 86829000 | Superseded | Order 874735 instead | |
| 80131500 | Ferrari Spray Nozzle - 80131500 | Superseded | Order 65191000 instead | |
| 1 | 785272 | Ferrari Compl. Screen Washer Pipe As - 785272 | $140.32 | Special order, ships in 7-14 days |
| 2 | 65191000 | Ferrari Spray Nozzle - 65191000 | $5.44 | Available, ships in 3-6 days |
| 3 | 785249 | Ferrari Rubber Pipe - 785249 | $6.38 | Special order, ships in 7-14 days |
| 4 | 785251 | Ferrari Rubber Pipe - 785251 | $3.41 | Special order, ships in 7-14 days |
| 5 | 83807100 | Ferrari Front Lid Air Duct Seal LHD - 83807100 | $211.73 | Special order, ships in 7-14 days |
| 5 | 83341000 | Ferrari Front Lid Air Duct Seal RHD - 83341000 | $270.83 | Available, ships in 3-6 days |
| 6 | 15783177 | Ferrari Screw - 15783177 | $5.04 | Available, ships in 3-6 days |
| 7 | 13550278 | Ferrari Washer D.6x13x1 - 13550278 | $1.80 | Available, ships in 3-6 days |
| 8 | 14115580 | Ferrari Fixing Block - 14115580 | $0.34 | Available, ships in 3-6 days |
| 9 | 87420200 | Ferrari Anti-Vibration Rubber Pipe - 87420200 | $14.01 | Special order, ships in 7-14 days |
| 10 | 83081700 | Ferrari Dynamic Intake Filler Foam - 83081700 | $27.47 | Available, ships in 3-6 days |
| 11 | 103549 | Ferrari Grommet - 103549 | $2.80 | In stock |
| 12 | 85190900 | Ferrari RH Front Luggage Compartment Lid Striker Cover - 85190900 | $17.46 | Special order, ships in 7-14 days |
| 13 | 85191100 | Ferrari LH Front Luggage Compartment Lid Striker Cover - 85191100 | $17.46 | Available, ships in 3-6 days |
| 14 | 874735 | Ferrari RH Cosmetic Trim - 874735 | $44.29 | Special order, ships in 7-14 days |
| 15 | 874734 | Ferrari LH Cosmetic Cover - 874734 | $44.29 | Special order, ships in 7-14 days |
| 16 | 70006726 | Ferrari Front S-Duct Intake - 70006726 | $16,253.26 | Contact us to order |
| 16 | 904555 | Ferrari Front S-Duct Intake - 904555 | $206.81 | Special order, ships in 7-14 days |
| 16 | 904557 | Ferrari Front S-Duct Intake - 904557 | $6,087.63 | Special order, ships in 7-14 days |
| 17 | 65864100 | Ferrari Allen Head Screw M6 x 15 TBFEI - 65864100 | $2.82 | Available, ships in 3-6 days |
| 17 | 85740000 | Ferrari Screw - 85740000 | $2.59 | Special order, ships in 7-14 days |
| 18 | 82139200 | Ferrari Striker Plate - 82139200 | $66.35 | Special order, ships in 7-14 days |
| 19 | 84827800 | Ferrari Lid Striker Plate Film - 84827800 | $16.81 | Special order, ships in 7-14 days |
| 20 | 14054577 | Ferrari Domed Nut - 14054577 | $0.59 | Available, ships in 3-6 days |
| 21 | 87294800 | Ferrari Spacer - 87294800 | $1.36 | Special order, ships in 7-14 days |
