Ferrari F8 Tributo — [VEHICLE TRIM] - E.36 - REAR LID TRIM (diagram 0137)

Exploded view of the [vehicle trim] - e.36 - rear lid trim on the Ferrari F8 Tributo, with 28 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

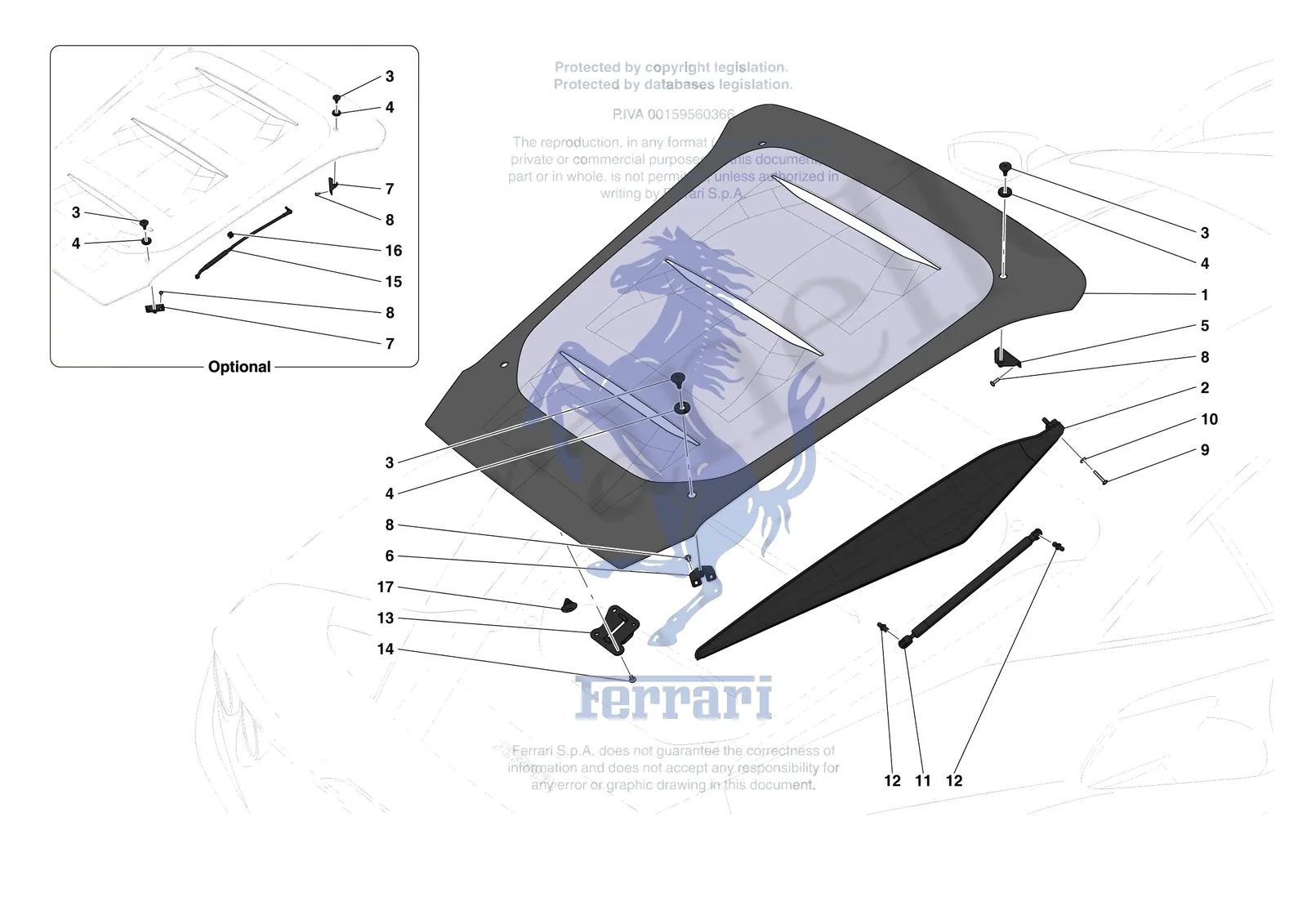

Ferrari F8 Tributo [VEHICLE TRIM] - E.36 - REAR LID TRIM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
63402800Ferrari Ball Pin - 63402800SupersededOrder 85216400 instead
69205900Ferrari Ball Pin - 69205900SupersededOrder 85216400 instead
64577200Ferrari Pin - 64577200SupersededOrder 85216400 instead
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
12638108Ferrari Washer - 12638108SupersededOrder 12638178 instead
12638177Ferrari Washer - 12638177SupersededOrder 12638178 instead
61276300Ferrari Washer - 61276300SupersededOrder 12638178 instead
1877219Ferrari 000877219 Lunotto Motore - 877219SupersededOrder 985877219 instead
1985877219Ferrari 000877219 Lunotto Motore - 985877219$38,734.33Contact us to order
2878871Ferrari Griglia Lat. Cofano Motore D - 878871$630.95Special order, ships in 7-14 days
2878873Ferrari Griglia Lat. Cofano Motore S - 878873$630.95Special order, ships in 7-14 days
367509600Ferrari Screw - 67509600$51.37Available, ships in 3-6 days
484879800Ferrari Gasket - 84879800$9.60Available, ships in 3-6 days
5891768Ferrari Front Bracket for Rear Screen Adjustment - 891768$34.25Special order, ships in 7-14 days
6891766Ferrari Rear Bracket for Lexan Screen Adjustment - 891766$34.25Special order, ships in 7-14 days
7893386Ferrari Rear Screen Fastener Bracket - 893386Price on requestContact us for price and availability
885833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
914358774Ferrari Screw - 14358774$1.34Special order, ships in 7-14 days
9925745Ferrari Screw M5 x 35 TBFTX - 925745$3.03Special order, ships in 7-14 days
1012638178Ferrari Washer 5.45-14x1 - 12638178$0.13Available, ships in 3-6 days
11791696Ferrari Gas Strut - 791696$71.78Special order, ships in 7-14 days
1265939900Ferrari Pin - 65939900SupersededOrder 85216400 instead
1285216400Ferrari Pin - 85216400$2.98In stock
1383467200Ferrari Lock Striker - 83467200$78.76Special order, ships in 7-14 days
1465864100Ferrari Allen Head Screw M6 x 15 TBFEI - 65864100$2.82Available, ships in 3-6 days
15877210Ferrari Compl. Rear Lid Prop - 877210$709.82Special order, ships in 7-14 days
1614501087Ferrari Clip - 14501087$1.11Available, ships in 3-6 days
1714621887Ferrari Cover - 14621887$3.26Special order, ships in 7-14 days
