Ferrari F8 Tributo — [VEHICLE TRIM] - E.42 - REAR ACTIVE AERO (diagram 0144)

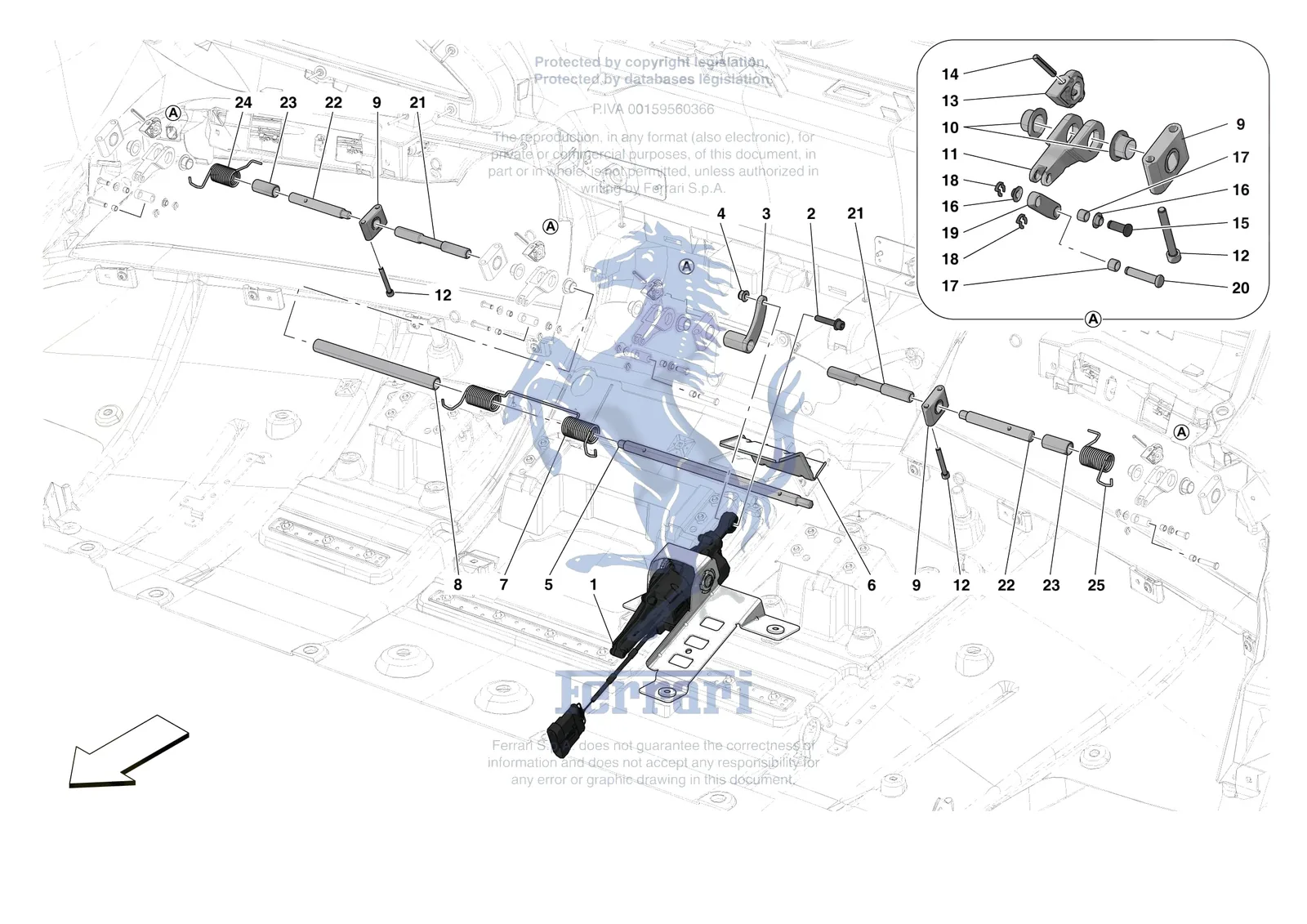

Exploded view of the [vehicle trim] - e.42 - rear active aero on the Ferrari F8 Tributo, with 28 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Tributo [VEHICLE TRIM] - E.42 - REAR ACTIVE AERO exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-tributo/0144.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 85709900 | Ferrari RH Flexible Shaft - 85709900 | Superseded | Order 329318 instead | |
| 216568 | Ferrari Screw 6x30 - 216568 | Superseded | Order 231621 instead | |
| 85710200 | Ferrari Shaft Drive Lever - 85710200 | Superseded | Order 318983 instead | |
| 1 | 748053 | Ferrari Actuator Compl. With Bracket - 748053 | $1,247.52 | Special order, ships in 7-14 days |
| 2 | 231621 | Ferrari Allen Screw M6 x 30 TCEI - 231621 | $0.73 | Available, ships in 3-6 days |
| 3 | 318983 | Ferrari Shaft Drive Lever - 318983 | $115.69 | Special order, ships in 7-14 days |
| 4 | 301909 | Ferrari Self-Locking Nut M6 - 301909 | $3.26 | Special order, ships in 7-14 days |
| 5 | 85708700 | Ferrari Centra Shaft Section - 85708700 | $192.03 | Special order, ships in 7-14 days |
| 6 | 309215 | Ferrari Heat Shield - 309215 | $17.94 | Special order, ships in 7-14 days |
| 7 | 85709000 | Ferrari Centre Return Spring - 85709000 | $49.22 | Special order, ships in 7-14 days |
| 8 | 85709300 | Ferrari Central Spacer - 85709300 | $35.00 | Special order, ships in 7-14 days |
| 9 | 85708900 | Ferrari Shaft Mount - 85708900 | $34.40 | Available, ships in 3-6 days |
| 10 | 85711700 | Ferrari Bushing - 85711700 | $6.31 | Available, ships in 3-6 days |
| 11 | 318981 | Ferrari Hatch Actuator Link - 318981 | $130.29 | Available, ships in 3-6 days |
| 12 | 301785 | Ferrari Screw 6x20 - 301785 | $1.36 | Available, ships in 3-6 days |
| 13 | 328330 | Ferrari Control Cam - 328330 | $7.34 | Available, ships in 3-6 days |
| 14 | 85711800 | Ferrari Drive Pin - 85711800 | $2.82 | Available, ships in 3-6 days |
| 15 | 306757 | Ferrari Upper Link Pin 5X15 - 306757 | $19.89 | Available, ships in 3-6 days |
| 16 | 87804600 | Ferrari Bushing - 87804600 | $2.82 | Available, ships in 3-6 days |
| 17 | 85712200 | Ferrari Bush For Link Pin - 85712200 | $3.26 | Available, ships in 3-6 days |
| 18 | 306350 | Ferrari Safety Clip - 306350 | $2.82 | Available, ships in 3-6 days |
| 19 | 85709700 | Ferrari Lateral Link - 85709700 | $66.35 | Available, ships in 3-6 days |
| 20 | 85712100 | Ferrari Lower Link Pins - 85712100 | $27.03 | Available, ships in 3-6 days |
| 21 | 329318 | Ferrari RH Flexible Shaft - 329318 | $240.94 | Special order, ships in 7-14 days |
| 22 | 85708800 | Ferrari Lateral Shaft Section - 85708800 | $95.87 | Special order, ships in 7-14 days |
| 23 | 85709400 | Ferrari Lateral Spacer - 85709400 | $16.14 | Special order, ships in 7-14 days |
| 24 | 310109 | Ferrari RH Return Spring - 310109 | $27.03 | Special order, ships in 7-14 days |
| 25 | 310110 | Ferrari LH Return Spring - 310110 | $27.03 | Special order, ships in 7-14 days |
