Ferrari F8 Tributo — [VEHICLE TRIM] - E.47.01 - DASHBOARD - SUBSTRUCTURE -Not for RHD- (diagram 0149)

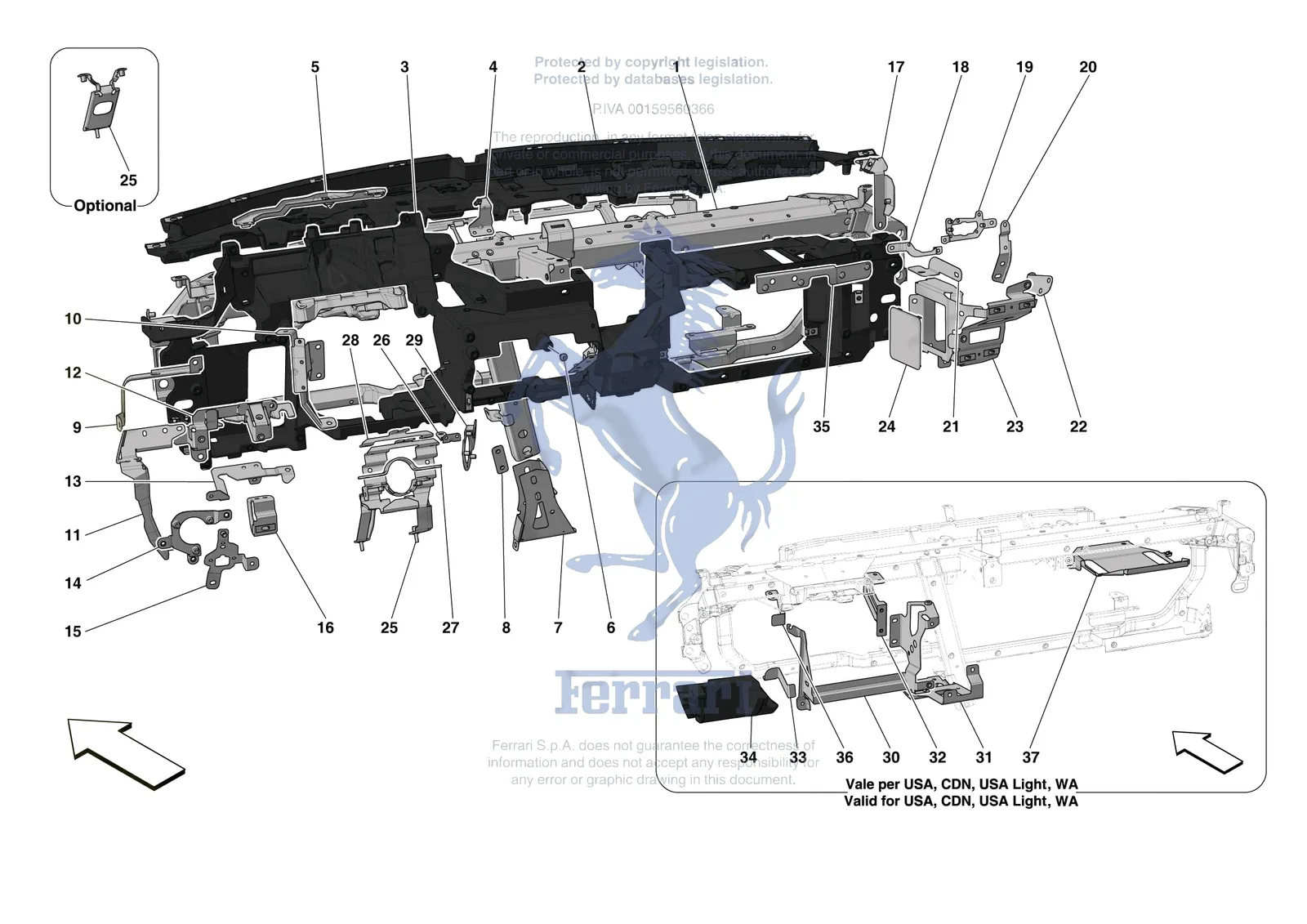

Exploded view of the [vehicle trim] - e.47.01 - dashboard - substructure -not for rhd- on the Ferrari F8 Tributo, with 39 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Tributo [VEHICLE TRIM] - E.47.01 - DASHBOARD - SUBSTRUCTURE -Not for RHD- exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-tributo/0149.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 842629 | Ferrari Dashboard Cross Member - 842629 | $4,263.21 | Special order, ships in 7-14 days |
| 1 | 880521 | Ferrari Dashboard Crossmember USA - 880521 | $4,209.27 | Special order, ships in 7-14 days |
| 2 | 847592 | Ferrari Complete Front Dashboard Substructure - 847592 | $714.03 | Special order, ships in 7-14 days |
| 3 | 848811 | Ferrari Compl. Lower Dashboard - 848811 | $2,560.72 | Contact us to order |
| 4 | 935102 | Ferrari Fastener Bracket For RH Uppe - 935102 | $49.22 | Special order, ships in 7-14 days |
| 5 | 872017 | Ferrari Complete Instrument Panel Bracket - 872017 | $86.15 | Special order, ships in 7-14 days |
| 6 | 85692000 | Ferrari SCREW - 85692000 | $0.65 | Available, ships in 3-6 days |
| 7 | 853281 | Ferrari Support Fastener Bracket - 853281 | $164.95 | Special order, ships in 7-14 days |
| 8 | 85441400 | Ferrari Plate - 85441400 | $10.91 | Special order, ships in 7-14 days |
| 9 | 875207 | Ferrari Lower LH Substructure Bracket - 875207 | $61.52 | Special order, ships in 7-14 days |
| 10 | 883442 | Ferrari LH Upper Trim Fastener Brack - 883442 | $64.00 | Special order, ships in 7-14 days |
| 11 | 843231 | Ferrari Lights Control Fastener Brac - 843231 | $130.47 | Special order, ships in 7-14 days |
| 12 | 843227 | Ferrari Upper Body Computer Bracket - 843227 | $204.34 | Special order, ships in 7-14 days |
| 13 | 854242 | Ferrari Lower Body Computer Bracket - 854242 | $81.23 | Special order, ships in 7-14 days |
| 14 | 934835 | Ferrari Bracket for Lights Control - 934835 | $34.44 | Special order, ships in 7-14 days |
| 15 | 934831 | Ferrari Fuel Flap Release Control Bracket - 934831 | $71.38 | Special order, ships in 7-14 days |
| 16 | 864490 | Ferrari LH Upper Trim Fastener Brack - 864490 | $81.23 | Special order, ships in 7-14 days |
| 17 | 849381 | Ferrari Compl. RH Side Lower Substru - 849381 | $113.24 | Special order, ships in 7-14 days |
| 18 | 911897 | Ferrari Mounting Bracket for RH Controls - 911897 | $34.44 | Special order, ships in 7-14 days |
| 19 | 916759 | Ferrari Complete Control Mounting Bracket - 916759 | $56.60 | Special order, ships in 7-14 days |
| 20 | 850452 | Ferrari RH Lateral Airbag Cover Bracket - 850452 | $39.37 | Special order, ships in 7-14 days |
| 21 | 882279 | Ferrari Bracket for Display Bezel - 882279 | $36.92 | Special order, ships in 7-14 days |
| 22 | 87115700 | Ferrari Multirelay Connecting Bracket LHD - 87115700 | $34.44 | Special order, ships in 7-14 days |
| 23 | 849291 | Ferrari Multi-Relay Mounting Bracket - 849291 | $393.93 | Special order, ships in 7-14 days |
| 24 | 86185400 | Ferrari Multirelay Hatch - 86185400 | $49.22 | Special order, ships in 7-14 days |
| 25 | 86592000 | Ferrari Lower Bracket For Steering Column Trim - 86592000 | $83.57 | Special order, ships in 7-14 days |
| 25 | 88527400 | Ferrari Lower Steering Column Trim B - 88527400 | $565.49 | Special order, ships in 7-14 days |
| 26 | 918760 | Ferrari Mounting Bracket - 918760 | Price on request | Contact us for price and availability |
| 27 | 86431600 | Ferrari Bracket On Lower Steering Column - 86431600 | $23.08 | Special order, ships in 7-14 days |
| 28 | 88133500 | Ferrari Upper Steering Column Trim B - 88133500 | $39.31 | Special order, ships in 7-14 days |
| 29 | 88490300 | Ferrari Engine Button Mounting Brack - 88490300 | $66.35 | Special order, ships in 7-14 days |
| 30 | 872847 | Ferrari Traversino Di Rinf.Sotto Pia - 872847 | $160.02 | Special order, ships in 7-14 days |
| 31 | 872850 | Ferrari RH Knee Guard Bracket - 872850 | $118.16 | Special order, ships in 7-14 days |
| 32 | 880533 | Ferrari RH Bracket on Crossbar - 880533 | $88.61 | Special order, ships in 7-14 days |
| 33 | 880549 | Ferrari LH Lower Crossbar Bracket - 880549 | $51.67 | Special order, ships in 7-14 days |
| 34 | 872844 | Ferrari Assorbitore Urto Usa - 872844 | $140.32 | Special order, ships in 7-14 days |
| 35 | 910571 | Ferrari Lower Substructure Reinforce - 910571 | $2,133.94 | Special order, ships in 7-14 days |
| 36 | 880504 | Ferrari LH Drivers Side Bracket on Cross Member - 880504 | $44.29 | Special order, ships in 7-14 days |
| 37 | 875099 | Ferrari Reinforcement Bracket - 875099 | $137.87 | Special order, ships in 7-14 days |
