Ferrari F8 Tributo — [VEHICLE TRIM] - E.47.02 - DASHBOARD - SUBSTRUCTURE -Applicable for RHD- (diagram 0150)

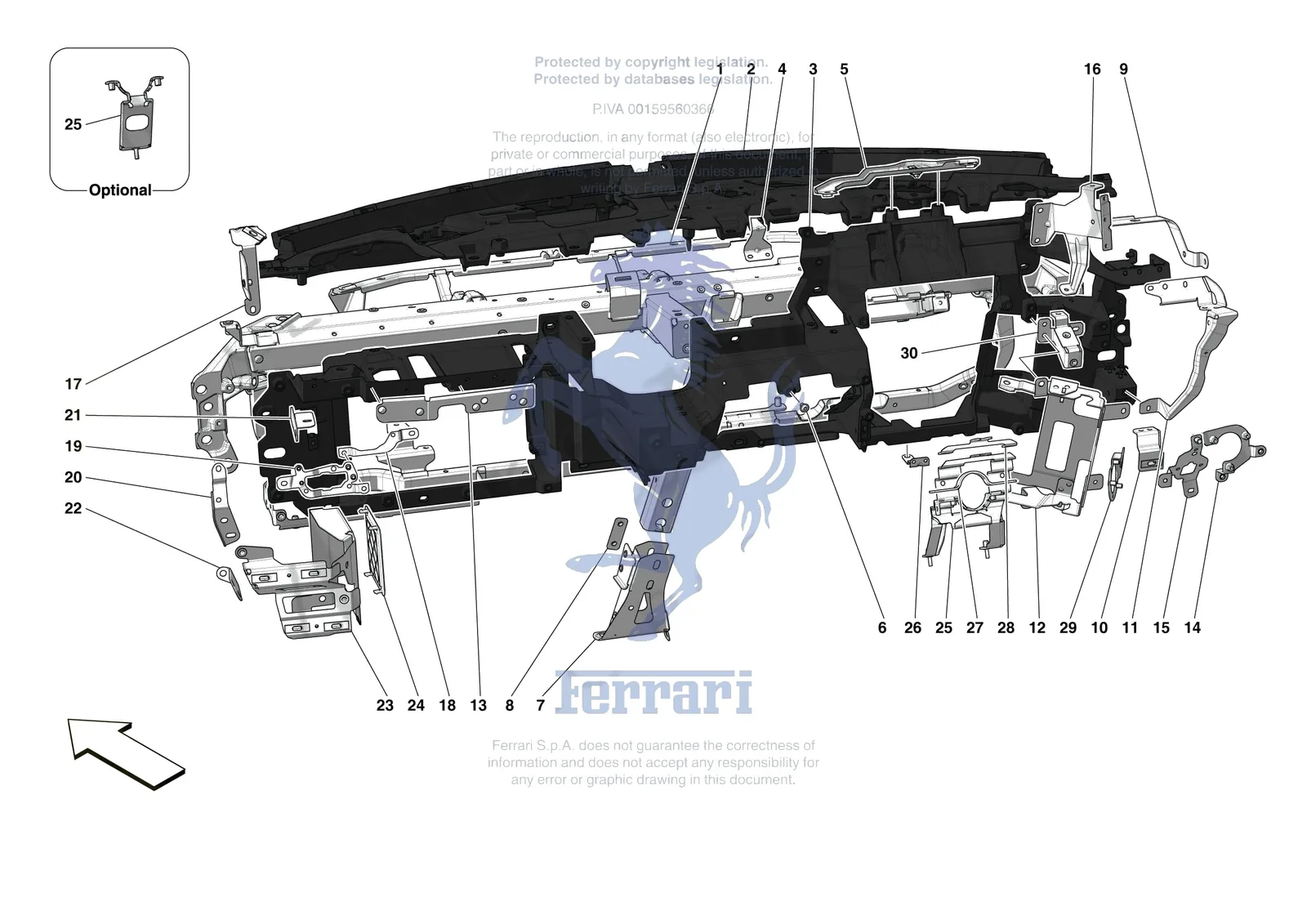

Exploded view of the [vehicle trim] - e.47.02 - dashboard - substructure -applicable for rhd- on the Ferrari F8 Tributo, with 31 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Tributo [VEHICLE TRIM] - E.47.02 - DASHBOARD - SUBSTRUCTURE -Applicable for RHD- exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-tributo/0150.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 873066 | Ferrari Dashboard Crossmember RHD - 873066 | $5,360.68 | Special order, ships in 7-14 days |
| 2 | 884825 | Ferrari Complete Front Dashboard Substructure - 884825 | $812.51 | Special order, ships in 7-14 days |
| 3 | 891335 | Ferrari Compl. Lower Dashboard - 891335 | $5,564.69 | Contact us to order |
| 4 | 935103 | Ferrari LH Upper Dash Cover Mounting Bracket - 935103 | $49.22 | Special order, ships in 7-14 days |
| 5 | 872017 | Ferrari Complete Instrument Panel Bracket - 872017 | $86.15 | Special order, ships in 7-14 days |
| 6 | 85692000 | Ferrari SCREW - 85692000 | $0.65 | Available, ships in 3-6 days |
| 7 | 885263 | Ferrari Support Fastener Bracket - 885263 | $160.02 | Special order, ships in 7-14 days |
| 8 | 85441400 | Ferrari Plate - 85441400 | $10.91 | Special order, ships in 7-14 days |
| 9 | 885264 | Ferrari RH Lower Substructure Bracket - 885264 | $78.76 | Special order, ships in 7-14 days |
| 10 | 885266 | Ferrari RH Upper Trim Fastener Bracket - 885266 | $64.00 | Special order, ships in 7-14 days |
| 11 | 884656 | Ferrari Lights Control Mounting Brac - 884656 | $130.47 | Special order, ships in 7-14 days |
| 12 | 884665 | Ferrari BODY COMPUTER BRACKET - 884665 | Price on request | Contact us for price and availability |
| 13 | 912965 | Ferrari Lower Substructure Reinforce - 912965 | $2,567.77 | Special order, ships in 7-14 days |
| 14 | 935439 | Ferrari Bracket for Lights Control - 935439 | $34.44 | Special order, ships in 7-14 days |
| 15 | 935438 | Ferrari Fuel Flap Release Control Bracket - 935438 | $71.38 | Special order, ships in 7-14 days |
| 16 | 873072 | Ferrari RH Upper Dash Trim Fastener Bracket - 873072 | $66.45 | Special order, ships in 7-14 days |
| 17 | 903506 | Ferrari Compl. Lower Substructure Extension Bracket - 903506 | $145.25 | Special order, ships in 7-14 days |
| 18 | 913681 | Ferrari Mounting Bracket for RH Controls - 913681 | $36.92 | Special order, ships in 7-14 days |
| 19 | 915096 | Ferrari Complete Control Mounting Bracket - 915096 | $78.76 | Special order, ships in 7-14 days |
| 20 | 884650 | Ferrari LH Side Airbag Cover Mounting Bracket - 884650 | $39.37 | Special order, ships in 7-14 days |
| 21 | 885269 | Ferrari Bracket for Display Bezel - 885269 | $36.92 | Special order, ships in 7-14 days |
| 22 | 87115900 | Ferrari Multirelay Connecting Bracket RHD - 87115900 | $34.44 | Special order, ships in 7-14 days |
| 23 | 884655 | Ferrari Multi-Relay Mounting Bracket - 884655 | $443.17 | Special order, ships in 7-14 days |
| 24 | 86185400 | Ferrari Multirelay Hatch - 86185400 | $49.22 | Special order, ships in 7-14 days |
| 25 | 86592000 | Ferrari Lower Bracket For Steering Column Trim - 86592000 | $83.57 | Special order, ships in 7-14 days |
| 25 | 88527400 | Ferrari Lower Steering Column Trim B - 88527400 | $565.49 | Special order, ships in 7-14 days |
| 26 | 918760 | Ferrari Mounting Bracket - 918760 | Price on request | Contact us for price and availability |
| 27 | 86431600 | Ferrari Bracket On Lower Steering Column - 86431600 | $23.08 | Special order, ships in 7-14 days |
| 28 | 88133500 | Ferrari Upper Steering Column Trim B - 88133500 | $39.31 | Special order, ships in 7-14 days |
| 29 | 88490300 | Ferrari Engine Button Mounting Brack - 88490300 | $66.35 | Special order, ships in 7-14 days |
| 30 | 906438 | Ferrari RH Upper Casting Fastener Br - 906438 | $2,485.70 | Special order, ships in 7-14 days |
