Ferrari F8 Tributo — [VEHICLE TRIM] - E.47.06 - DASHBOARD - DUCTS -Applicable for RHD- (diagram 0154)
Exploded view of the [vehicle trim] - e.47.06 - dashboard - ducts -applicable for rhd- on the Ferrari F8 Tributo, with 13 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

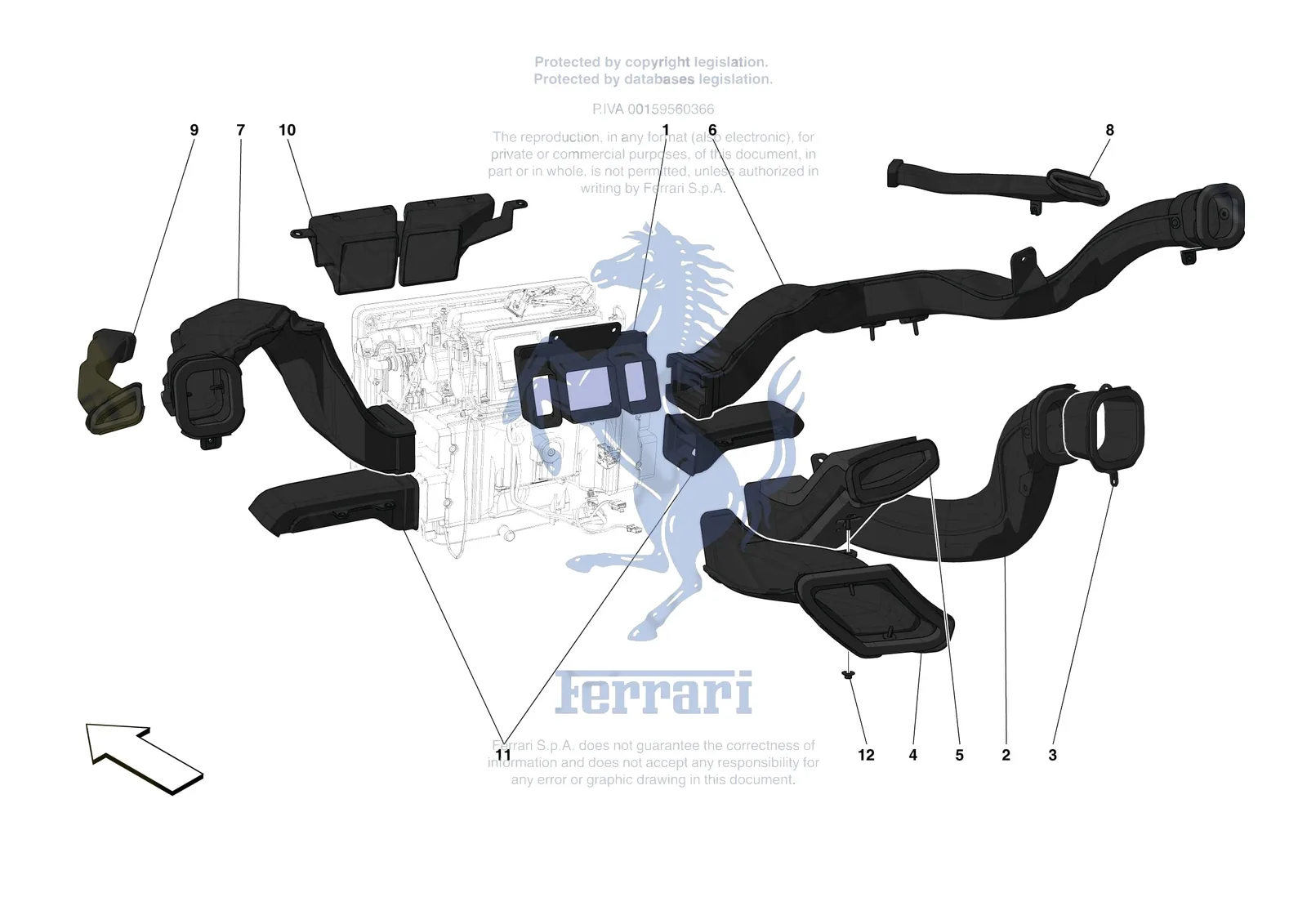

![Ferrari F8 Tributo [VEHICLE TRIM] - E.47.06 - DASHBOARD - DUCTS -Applicable for RHD- exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-tributo/0154.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 81371100 | Ferrari Footwell Duct - 81371100 | Superseded | Order 84497100 instead | |
| 1 | 881188 | Ferrari Centre Air Duct Connector - 881188 | $34.25 | Special order, ships in 7-14 days |
| 2 | 879603 | Ferrari Condotto Vent.Dx Guida Cpl G - 879603 | $225.17 | Special order, ships in 7-14 days |
| 3 | 898814 | Ferrari Prolunga Condo Vent Sx Pilot - 898814 | $56.27 | Special order, ships in 7-14 days |
| 4 | 879650 | Ferrari Condotto Vent.Sx Passeggero - 879650 | $159.08 | Special order, ships in 7-14 days |
| 5 | 896483 | Ferrari Diffusore Vent Centr Super G - 896483 | $269.23 | Special order, ships in 7-14 days |
| 6 | 876296 | Ferrari Condotto Vent. Dx Guida Cpl - 876296 | $318.19 | Special order, ships in 7-14 days |
| 7 | 876250 | Ferrari Condotto Vent. Sx Pass.Cp - 876250 | $242.31 | Special order, ships in 7-14 days |
| 8 | 876277 | Ferrari Condotto Demister Dx Cpl - 876277 | $154.18 | Special order, ships in 7-14 days |
| 9 | 876229 | Ferrari Compl. Passenger Side Demist - 876229 | $186.01 | Special order, ships in 7-14 days |
| 10 | 87030200 | Ferrari Hvac Defroster Connector RHD - 87030200 | $152.62 | Special order, ships in 7-14 days |
| 11 | 84497100 | Ferrari Footwell Duct - 84497100 | $100.34 | Special order, ships in 7-14 days |
| 12 | 14039511 | Ferrari Nut - 14039511 | $0.54 | Available, ships in 3-6 days |
