Ferrari F8 Tributo — [VEHICLE TRIM] - E.61 - BATTERY INSTALLATION (diagram 0174)

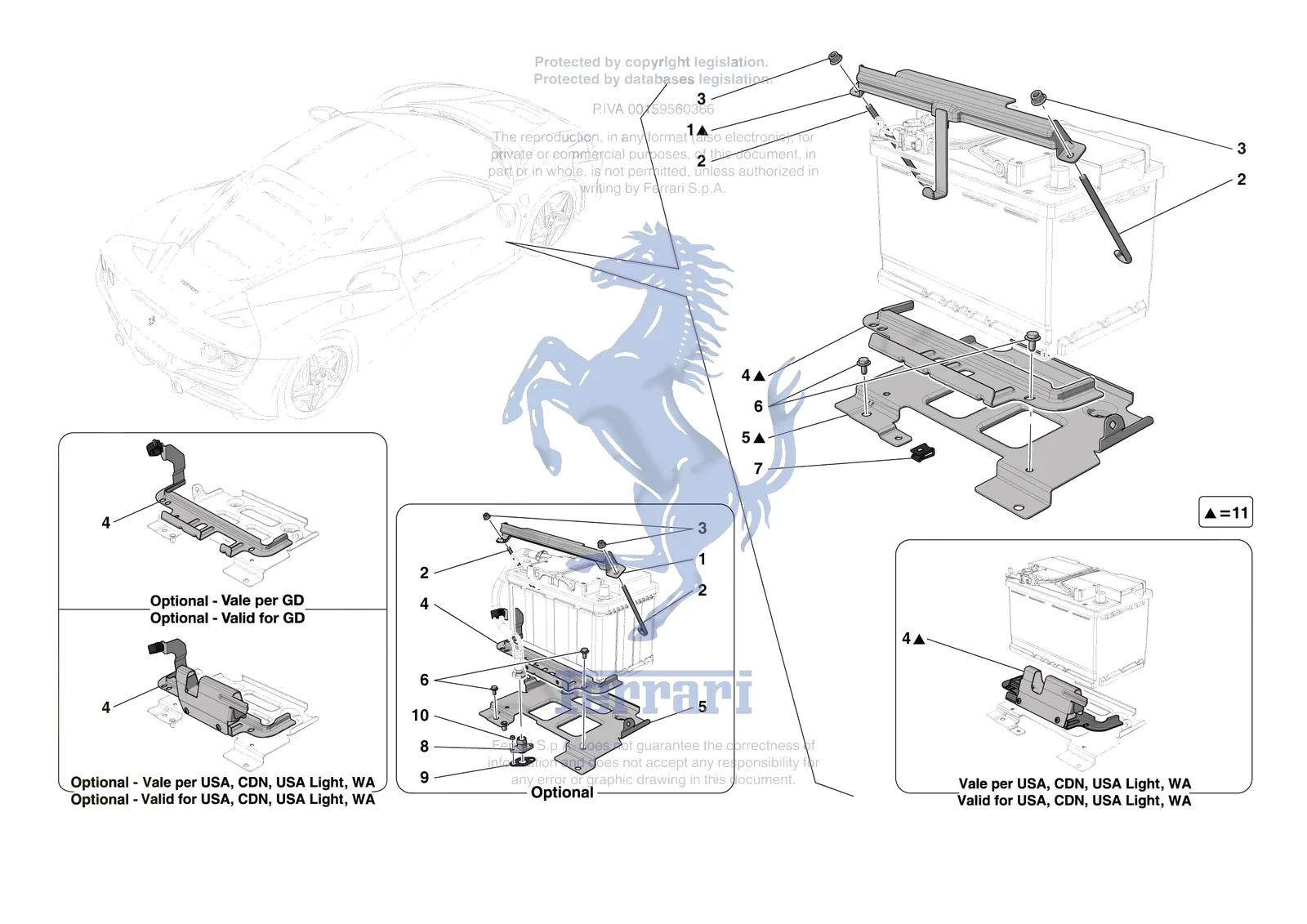

Exploded view of the [vehicle trim] - e.61 - battery installation on the Ferrari F8 Tributo, with 23 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Tributo [VEHICLE TRIM] - E.61 - BATTERY INSTALLATION exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-tributo/0174.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 793036 | Ferrari Compl. Battery Frame - 793036 | $342.66 | Special order, ships in 7-14 days | |
| 84398100 | Ferrari Retainer Bracket - 84398100 | Superseded | Order 82514100 instead | |
| 1 | 828637 | Ferrari Battery Retainer Bracket - 828637 | $162.48 | Special order, ships in 7-14 days |
| 1 | 85280000 | Ferrari Bracket - 85280000 | $135.39 | Special order, ships in 7-14 days |
| 2 | 85235500 | Ferrari Battery Fastener Tie-Rod - 85235500 | $31.99 | Special order, ships in 7-14 days |
| 3 | 14058419 | Ferrari Flanged Nut - 14058419 | $1.61 | Special order, ships in 7-14 days |
| 4 | 770933 | Ferrari Compl. Battery Frame - 770933 | $110.78 | Special order, ships in 7-14 days |
| 4 | 803866 | Ferrari Compl. Battery Frame - 803866 | $88.61 | Special order, ships in 7-14 days |
| 4 | 906365 | Ferrari Compl. Battery Frame - 906365 | $393.93 | Special order, ships in 7-14 days |
| 4 | 82514100 | Ferrari Retainer Bracket - 82514100 | $59.07 | Special order, ships in 7-14 days |
| 4 | 87837900 | Ferrari Retainer Bracket - 87837900 | $295.43 | Special order, ships in 7-14 days |
| 5 | 85551300 | Ferrari Battery Bracket Complete LHD - 85551300 | $214.19 | Special order, ships in 7-14 days |
| 5 | 85875400 | Ferrari Battery Bracket Complete RHD - 85875400 | $130.47 | Special order, ships in 7-14 days |
| 5 | 770922 | Ferrari Compl. Battery Bracket - 770922 | $214.19 | Special order, ships in 7-14 days |
| 5 | 803850 | Ferrari Compl. Battery Bracket - 803850 | $214.19 | Special order, ships in 7-14 days |
| 6 | 11625624 | Ferrari/Maserati Screw - 11625624 | $1.50 | In stock |
| 7 | 62766300 | Ferrari Spire Clip M6 - 62766300 | $1.36 | Available, ships in 3-6 days |
| 8 | 770786 | Ferrari Battery Breather Pipe Fittin - 770786 | $113.24 | Special order, ships in 7-14 days |
| 9 | 817742 | Ferrari Pipe Flange Gasket - 817742 | $65.55 | Special order, ships in 7-14 days |
| 10 | 14084117 | Ferrari Nut - 14084117 | $1.80 | Special order, ships in 7-14 days |
| 11 | 779104 | Ferrari Lead Battery Installation Ki - 779104 | $1,698.93 | Special order, ships in 7-14 days |
| 11 | 779105 | Ferrari Lead Battery Installation Ki - 779105 | $1,871.30 | Special order, ships in 7-14 days |
| 11 | 779106 | Ferrari Lead Battery Installation Ki - 779106 | $1,403.46 | Special order, ships in 7-14 days |
