Ferrari F8 Tributo — [ELECTRICAL SYSTEM] - F.06 - ELECTRICAL SYSTEM CONTROL UNITS (diagram 0181)

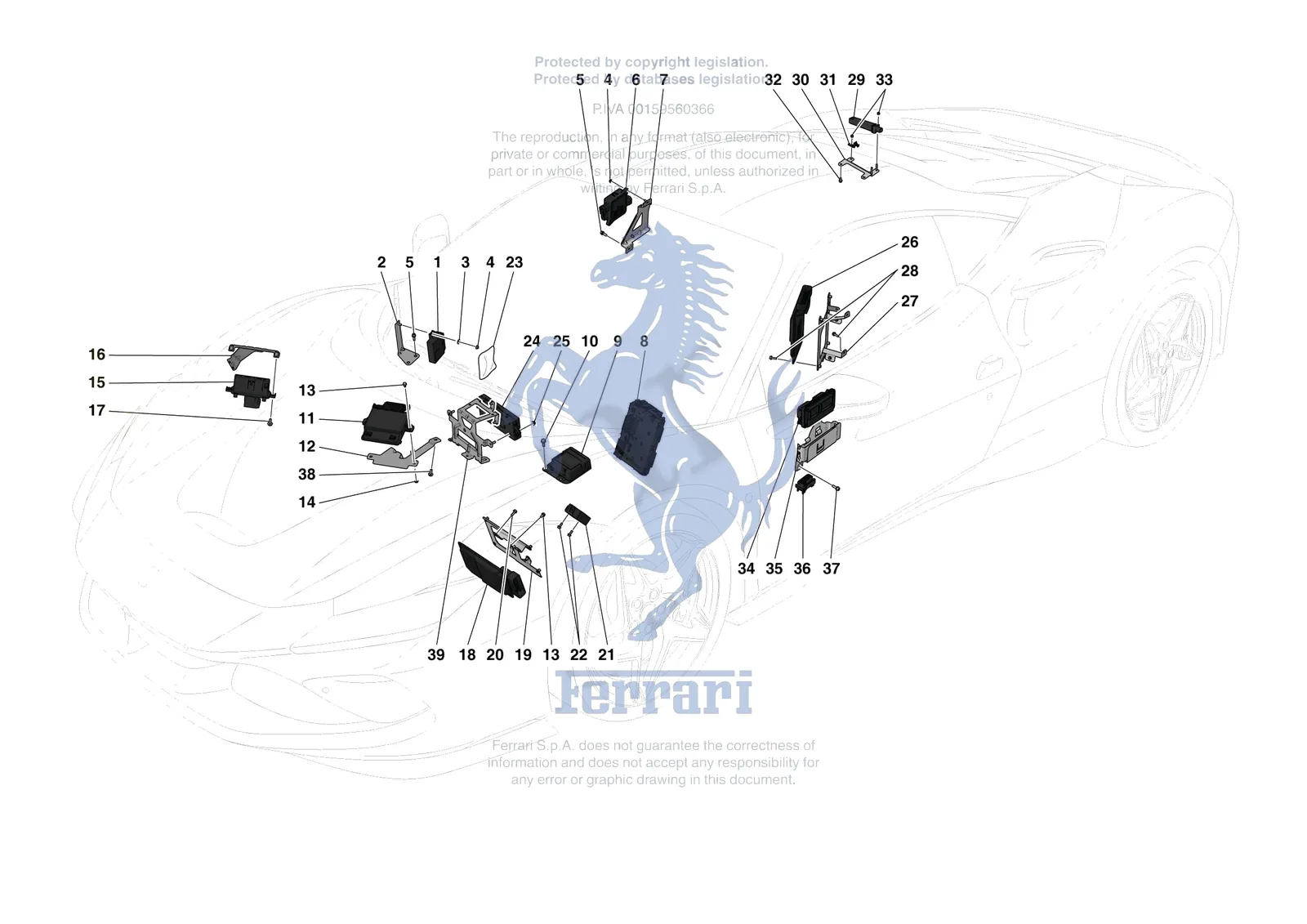

Exploded view of the [electrical system] - f.06 - electrical system control units on the Ferrari F8 Tributo, with 48 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Tributo [ELECTRICAL SYSTEM] - F.06 - ELECTRICAL SYSTEM CONTROL UNITS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-tributo/0181.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days | |
| 262285 | Ferrari Power Steering Control Ecu - 262285 | Superseded | Order 269355 instead | |
| 1 | 848941 | Ferrari Parking Sensor ECU F142M - 848941 | $418.56 | Special order, ships in 7-14 days |
| 2 | 314597 | Ferrari Parking Sensor Node Bracket - 314597 | $66.45 | Special order, ships in 7-14 days |
| 3 | 13577701 | Ferrari Washer 5.15 - 15 x 1.2 - 13577701 | $0.19 | Available, ships in 3-6 days |
| 4 | 14059111 | Ferrari Flanged Nut M5 - 14059111 | $0.08 | Available, ships in 3-6 days |
| 4 | 14039511 | Ferrari Nut - 14039511 | $0.54 | Available, ships in 3-6 days |
| 5 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 6 | 294559 | Ferrari PWM Command Signal For Fuel - 294559 | Superseded | Order 849386 instead |
| 6 | 849386 | Ferrari PWM Command Signal for Fuel Pumps - 849386 | $688.45 | Special order, ships in 7-14 days |
| 7 | 310716 | Ferrari Pwm Ecu Mounting Bracket - 310716 | $86.15 | Special order, ships in 7-14 days |
| 8 | 890990 | Ferrari Body Computer Node - 890990 | $2,063.59 | Special order, ships in 7-14 days |
| 9 | 935804 | Ferrari Airbag Ecu - 935804 | $979.09 | Special order, ships in 7-14 days |
| 9 | 860679 | Ferrari Centralina Airbag F142M Fl - 860679 | $979.09 | Special order, ships in 7-14 days |
| 10 | 16286124 | Ferrari Screw M6x20 - 16286124 | $0.71 | Special order, ships in 7-14 days |
| 11 | 264097 | Ferrari Voltage Stabilizer - 264097 | $969.98 | In stock |
| 12 | 891746 | Ferrari Upper Voltage Stabilizer Bracket - 891746 | $59.07 | Special order, ships in 7-14 days |
| 12 | 897656 | Ferrari Upper Voltage Stabilizer Bracket - 897656 | $115.69 | Special order, ships in 7-14 days |
| 13 | 16284914 | Ferrari Screw - 16284914 | $1.17 | Available, ships in 3-6 days |
| 14 | 12649624 | Ferrari Washer - 12649624 | Price on request | Contact us for price and availability |
| 15 | 315386 | Ferrari Adaptive Headlight Node Ecu - 315386 | $491.74 | Special order, ships in 7-14 days |
| 16 | 810788 | Ferrari Compl. Nfa ECU Mounting Brac - 810788 | $71.38 | Special order, ships in 7-14 days |
| 16 | 852549 | Ferrari Complete NFA ECU Mounting Bracket - 852549 | $71.38 | Special order, ships in 7-14 days |
| 17 | 11625824 | Ferrari Screw 6x18 - 11625824 | $0.71 | Available, ships in 3-6 days |
| 18 | 858187 | Ferrari Centralina Contr. Sosp.Mag - 858187 | $1,846.67 | Special order, ships in 7-14 days |
| 19 | 293760 | Ferrari Magneride Ecu Bracket Complete - 293760 | $108.31 | Special order, ships in 7-14 days |
| 20 | 16286024 | Ferrari SCREW - 16286024 | $0.38 | Available, ships in 3-6 days |
| 20 | 16285124 | Ferrari Screw 5x16 - 16285124 | Superseded | Order 16286024 instead |
| 21 | 269355 | Ferrari Power Steering Control Ecu - 269355 | $344.69 | Special order, ships in 7-14 days |
| 22 | 16281824 | Ferrari Screw - 16281824 | $0.82 | Available, ships in 3-6 days |
| 23 | 82880900 | Ferrari Waterproof Membrane - 82880900 | $44.29 | Special order, ships in 7-14 days |
| 24 | 820794 | Ferrari A/C Black Box - 820794 | $1,551.20 | Special order, ships in 7-14 days |
| 25 | 14059214 | Ferrari Flanged Nut M6 - 14059214 | $0.38 | Available, ships in 3-6 days |
| 26 | 858188 | Ferrari Centralina Contr. Aero Att - 858188 | $1,829.08 | Special order, ships in 7-14 days |
| 27 | 856303 | Ferrari Complete Active Aero ECU Bracket - 856303 | Superseded | Order 978955 instead |
| 27 | 978955 | Ferrari Complete Active Aero ECU Bracket - 978955 | $190.90 | Special order, ships in 7-14 days |
| 28 | 16285127 | Ferrari Screw M5 x 16 - 16285127 | $1.05 | Special order, ships in 7-14 days |
| 29 | 314815 | Ferrari Tpms ECU Antenna - 314815 | $983.50 | Special order, ships in 7-14 days |
| 29 | 314817 | Ferrari Tpms ECU Antenna - 314817 | $983.50 | Special order, ships in 7-14 days |
| 30 | 904403 | Ferrari TPMS Bracket - 904403 | $51.67 | Special order, ships in 7-14 days |
| 31 | 195646 | Ferrari Clip - 195646 | $2.82 | Available, ships in 3-6 days |
| 32 | 16285021 | Ferrari Screw - 16285021 | $0.82 | Special order, ships in 7-14 days |
| 33 | 113647 | Ferrari Nyloc Nut - 113647 | $0.52 | Available, ships in 3-6 days |
| 34 | 862924 | Ferrari Vehicle Lift ECU - 862924 | $1,551.20 | Special order, ships in 7-14 days |
| 35 | 768332 | Ferrari Lift System ECU Mounting Bra - 768332 | $150.17 | Special order, ships in 7-14 days |
| 36 | 261704 | Ferrari Cap Connector For ECU - 261704 | $78.66 | Special order, ships in 7-14 days |
| 39 | 849310 | Ferrari Compl. A/C Black Box Fastener Bracket - 849310 | $103.38 | Special order, ships in 7-14 days |
| 39 | 885244 | Ferrari Compl. A/C Black Box Fastener Bracket - 885244 | $130.47 | Special order, ships in 7-14 days |
