Ferrari F8 Tributo — [ELECTRICAL SYSTEM] - F.09 - LIGHTING SYSTEMS (diagram 0184)

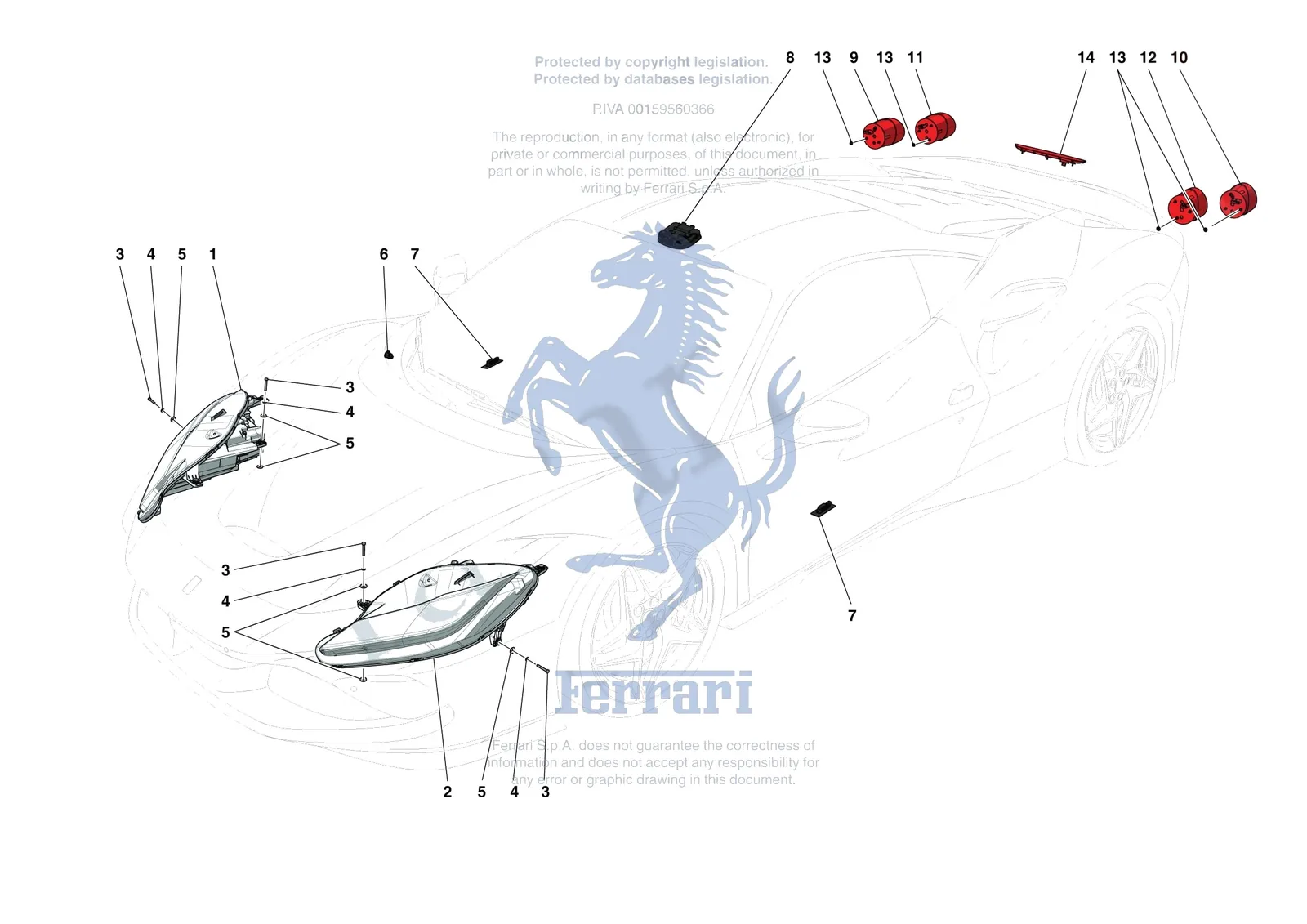

Exploded view of the [electrical system] - f.09 - lighting systems on the Ferrari F8 Tributo, with 33 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Tributo [ELECTRICAL SYSTEM] - F.09 - LIGHTING SYSTEMS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-tributo/0184.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 10903221 | Ferrari Bolt - 10903221 | Superseded | Order 10903224 instead | |
| 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead | |
| 12601224 | Ferrari Washer - 12601224 | Superseded | Order 12601274 instead | |
| 12605370 | Ferrari Washer - 12605370 | Superseded | Order 12601274 instead | |
| 12605371 | Ferrari Washer - 12605371 | Superseded | Order 12601274 instead | |
| 680232 | Ferrari Washer - 680232 | Superseded | Order 12601274 instead | |
| 12605374 | Ferrari Wavy Washer - 12605374 | Superseded | Order 12601274 instead | |
| 1 | 873240 | Ferrari Proiettore Dx Gdx - 873240 | Price on request | Contact us for price and availability |
| 1 | 863978 | Ferrari RH Headlamp - 863978 | $4,600.37 | Special order, ships in 7-14 days |
| 1 | 873233 | Ferrari RH Headlamp - 873233 | $5,402.88 | Special order, ships in 7-14 days |
| 1 | 873235 | Ferrari RH Headlamp - 873235 | $4,754.63 | Special order, ships in 7-14 days |
| 1 | 873238 | Ferrari RH Headlamp - 873238 | $5,559.23 | Special order, ships in 7-14 days |
| 1 | 873244 | Ferrari RH Headlamp - 873244 | $5,402.88 | Special order, ships in 7-14 days |
| 2 | 863979 | Ferrari LH Headlamp - 863979 | $4,600.37 | Special order, ships in 7-14 days |
| 2 | 873234 | Ferrari LH Headlamp - 873234 | $5,402.88 | Special order, ships in 7-14 days |
| 2 | 873237 | Ferrari LH Headlamp - 873237 | $4,754.63 | Special order, ships in 7-14 days |
| 2 | 873239 | Ferrari LH Headlamp - 873239 | $5,559.23 | Special order, ships in 7-14 days |
| 2 | 873247 | Ferrari Proiettore Sx Afs Gdx - 873247 | $5,402.88 | Special order, ships in 7-14 days |
| 2 | 873242 | Ferrari Proiettore Sx Gdx - 873242 | $4,600.37 | Special order, ships in 7-14 days |
| 3 | 10903224 | Ferrari Screw M6 x 40 - 10903224 | $0.50 | Available, ships in 3-6 days |
| 4 | 12601274 | Ferrari Wavy Washer 6mm - 12601274 | $1.04 | Available, ships in 3-6 days |
| 5 | 68040000 | Ferrari Washer 6X20x2 - 68040000 | $0.27 | Available, ships in 3-6 days |
| 6 | 317211 | Ferrari Lateral Turn Indicator - 317211 | $159.79 | Special order, ships in 7-14 days |
| 7 | 318013 | Ferrari Light Unit - 318013 | $61.45 | Special order, ships in 7-14 days |
| 8 | 332936 | Ferrari Central Ceiling Light Unit - 332936 | $1,920.19 | Special order, ships in 7-14 days |
| 9 | 317207 | Ferrari Outer RH Taillight - 317207 | $1,223.91 | Special order, ships in 7-14 days |
| 9 | 325107 | Ferrari Outer RH Taillight - 325107 | $1,202.06 | Special order, ships in 7-14 days |
| 10 | 317208 | Ferrari Outer LH Taillight - 317208 | $1,223.91 | Special order, ships in 7-14 days |
| 10 | 325108 | Ferrari Outer LH Taillight - 325108 | $1,202.06 | Available, ships in 3-6 days |
| 11 | 322257 | Ferrari Inner RH Taillight - 322257 | $1,223.91 | Special order, ships in 7-14 days |
| 12 | 322258 | Ferrari Inner LH Tail Light - 322258 | $1,223.91 | Special order, ships in 7-14 days |
| 13 | 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days |
| 14 | 803566 | Ferrari Rear Brake Lamp - 803566 | $372.04 | Available, ships in 3-6 days |
