Ferrari F8 Tributo — [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT (diagram 0185)

Exploded view of the [electrical system] - f.10 - audio unit on the Ferrari F8 Tributo, with 60 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

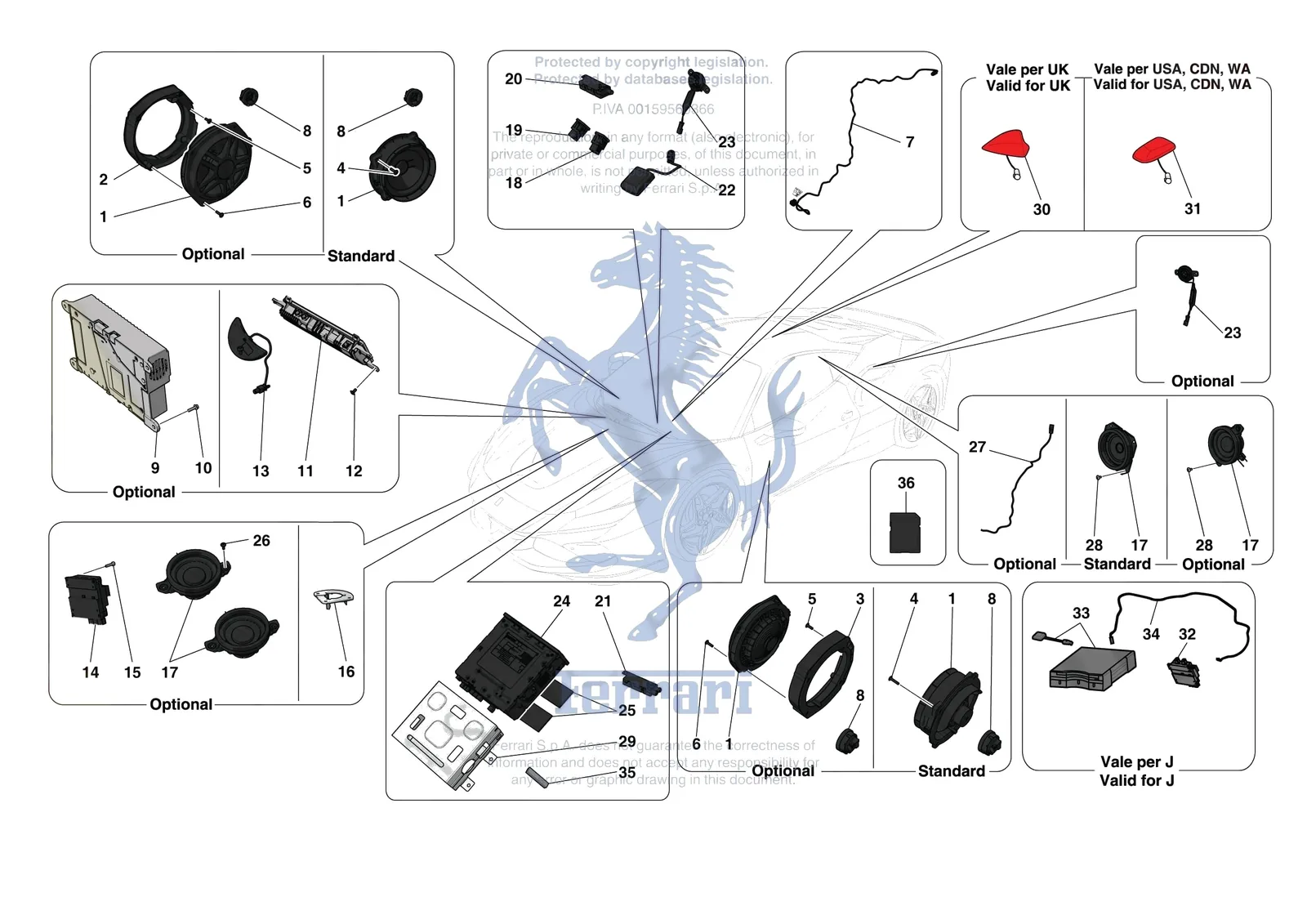

Ferrari F8 Tributo [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
321883Ferrari 12-Channel Amplifier - 321883SupersededOrder 339778 instead
65841900Ferrari Gasket - 65841900$1.80Special order, ships in 7-14 days
83332100Ferrari Gasket - 83332100$3.91Special order, ships in 7-14 days
242694Ferrari GPS Antenna - 242694Price on requestContact us for price and availability
331961Ferrari GPS Antenna - 331961$154.46Special order, ships in 7-14 days
931307432Ferrari Navigation System Gps Antenna - 931307432SupersededOrder 789209 instead
309771Ferrari Ndm Usb Cable - 309771$489.54Special order, ships in 7-14 days
334587Ferrari Passenger Display - 334587SupersededOrder 343169 instead
342785Ferrari Passenger Display - 342785SupersededOrder 343169 instead
290589Ferrari Screw 4x8 - 290589SupersededOrder 309629 instead
288974Ferrari USB Socket - 288974SupersededOrder 303226 instead
320420Ferrari Usb Splitter - 320420SupersededOrder 337571 instead
14303324Ferrari/Maserati Screw - 14303324$0.29In stock
1328469Ferrari Woofer - 328469$1,289.48Special order, ships in 7-14 days
1334279Ferrari Woofer - 334279$183.56Special order, ships in 7-14 days
2260131Ferrari RH Woofer Adapter - 260131$44.24Special order, ships in 7-14 days
3260130Ferrari LH Woofer Adapter - 260130$44.24Special order, ships in 7-14 days
485834000Ferrari Screw M5 x 25 - 85834000$0.71Special order, ships in 7-14 days
585833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
685692300Ferrari Screw M5 x 20 TBFTX - 85692300$0.65Available, ships in 3-6 days
7320422Ferrari USB-Nit Splitter-Socket Cable - 320422$565.49Special order, ships in 7-14 days
8251541Ferrari Tweeter - 251541$56.79Special order, ships in 7-14 days
8258166Ferrari Tweeter - 258166$214.46Special order, ships in 7-14 days
9339778Ferrari 12-Channel Amplifier - 339778$8,849.36Special order, ships in 7-14 days
9854740Ferrari Amplificatore 12 Canali F142 - 854740$8,479.55Special order, ships in 7-14 days
1016285224Ferrari Screw 5x20 - 16285224$0.52Available, ships in 3-6 days
11343169Ferrari Passenger Display - 343169$4,102.69Special order, ships in 7-14 days
1285692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
13286160Ferrari Bluetooth Antenna - 286160$961.65Special order, ships in 7-14 days
14337571Ferrari Usb Splitter - 337571$1,155.62Contact us to order
1514303224Ferrari Screw 4x16 - 14303224$1.15Special order, ships in 7-14 days
1682539400Ferrari Adaptor For Tweeter - 82539400$9.58Special order, ships in 7-14 days
17321889Ferrari Speaker - 321889$305.96Special order, ships in 7-14 days
17269772Ferrari Twiddler - 269772$109.25Special order, ships in 7-14 days
18317086Ferrari USB Socket - 317086$110.61Special order, ships in 7-14 days
19303226Ferrari USB Socket - 303226$100.78Special order, ships in 7-14 days
20277243Ferrari AM/FM Amplifier - 277243$241.27Special order, ships in 7-14 days
21298613Ferrari FM2/DAB Amplifier - 298613$443.17Special order, ships in 7-14 days
22789209Ferrari GPS Antenna - 789209$155.15Special order, ships in 7-14 days
23321882Ferrari Tweeter - 321882$131.10Special order, ships in 7-14 days
24335389Ferrari Nit - 335389$7,104.77Special order, ships in 7-14 days
24335390Ferrari Nit - 335390$9,214.68Special order, ships in 7-14 days
24335391Ferrari Nit - 335391$9,214.68Special order, ships in 7-14 days
25179309Ferrari ADHESIVE FOAM - 179309$8.28Available, ships in 3-6 days
2584069800Ferrari Body Bracket Connection - 84069800$4.47Available, ships in 3-6 days
25255515Ferrari Zagato Seal - 255515$3.39Available, ships in 3-6 days
26309629Ferrari Screw 4x8 - 309629$4.77Special order, ships in 7-14 days
2665752800Ferrari Screw M4 x 10 TBEI - 65752800$4.12Available, ships in 3-6 days
27311948Ferrari Ndm Usb Cable - 311948$491.74Special order, ships in 7-14 days
2886912700Ferrari Screw 4x6 - 86912700$0.79Special order, ships in 7-14 days
29849296Ferrari Nit Bracket - 849296$186.84Special order, ships in 7-14 days
30813376Ferrari ROOF DAB ANTENNA - 813376Price on requestContact us for price and availability
31326887Ferrari SDARS/GNSS COMBO ANTENNA - 326887Price on requestContact us for price and availability
32337572Ferrari 4-Way Usb Hub - 337572$1,549.03Special order, ships in 7-14 days
33867280Ferrari Dsrc Kit - 867280$4,362.61Special order, ships in 7-14 days
33887994Ferrari Dsrc Kit - 887994SupersededOrder 867280 instead
33336234Ferrari Dsrc/Vics Kit - 336234Price on requestContact us for price and availability
34338458Ferrari Dsrc/Hub Cable - 338458$1,032.68Special order, ships in 7-14 days
3567681200Ferrari GASKET - 67681200$5.86Special order, ships in 7-14 days
3567934100Ferrari Gasket - 67934100$2.13Special order, ships in 7-14 days
