Ferrari F8 Tributo — [ELECTRICAL SYSTEM] - F.13 - DATA LOGGER SYSTEM (diagram 0188)

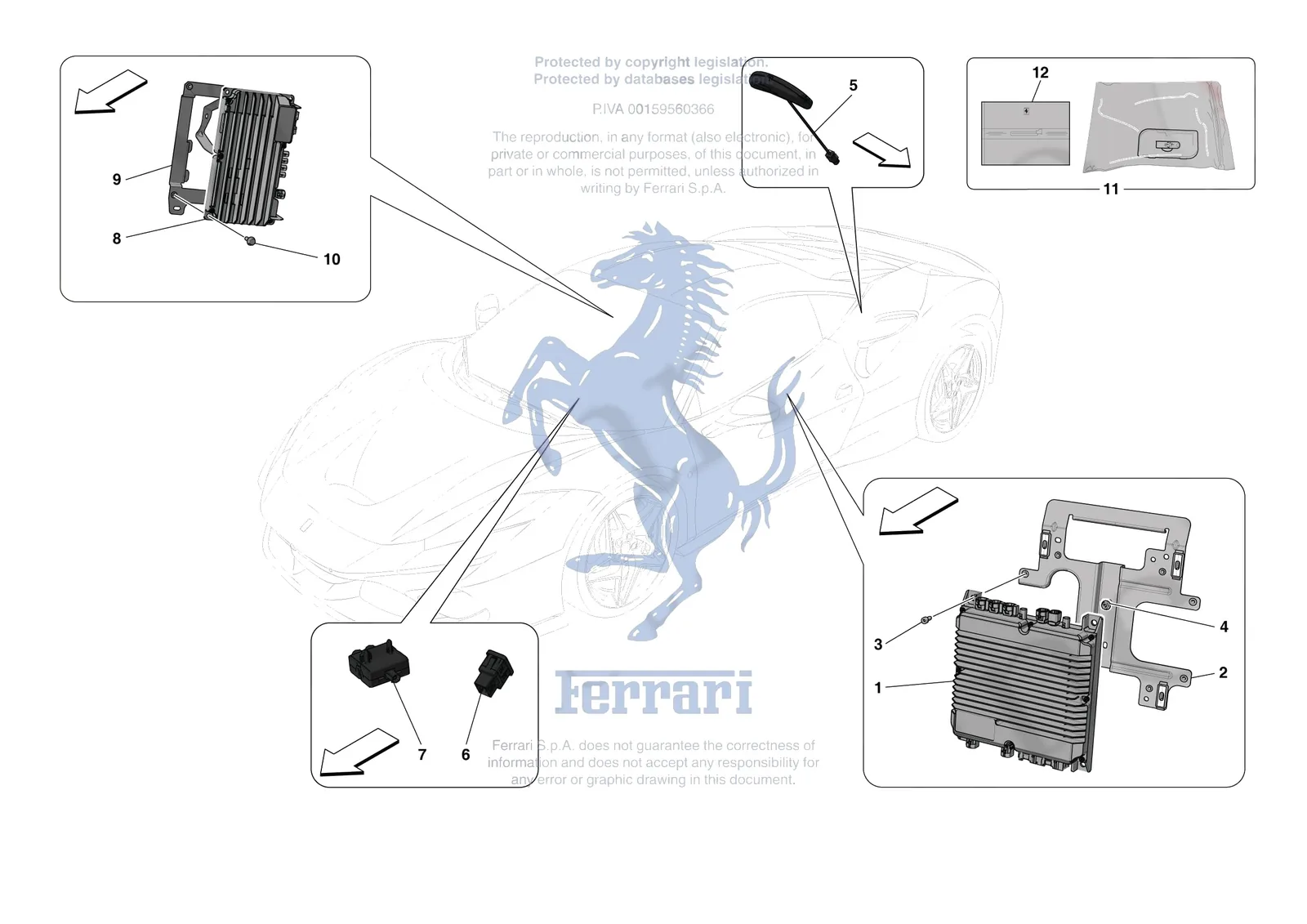

Exploded view of the [electrical system] - f.13 - data logger system on the Ferrari F8 Tributo, with 19 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Tributo [ELECTRICAL SYSTEM] - F.13 - DATA LOGGER SYSTEM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-tributo/0188.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 293328 | Ferrari GPS Antenna Splitter - 293328 | $489.54 | Special order, ships in 7-14 days | |
| 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days | |
| 307986 | Ferrari Telemetry USB Key Kit - 307986 | Superseded | Order 323616 instead | |
| 288974 | Ferrari USB Socket - 288974 | Superseded | Order 303226 instead | |
| 1 | 860020 | Ferrari Telemetry Node - 860020 | $19,242.58 | Contact us to order |
| 2 | 865864 | Ferrari Complete Telemetry Node Mounting Bracket - 865864 | $243.74 | Special order, ships in 7-14 days |
| 3 | 14302921 | Ferrari Screw M4 x 10 - 14302921 | $0.17 | Available, ships in 3-6 days |
| 3 | 86876400 | Ferrari Screw M4 x 14 TBEI - 86876400 | $15.49 | Special order, ships in 7-14 days |
| 4 | 14059111 | Ferrari Flanged Nut M5 - 14059111 | $0.08 | Available, ships in 3-6 days |
| 4 | 14039511 | Ferrari Nut - 14039511 | $0.54 | Available, ships in 3-6 days |
| 5 | 286161 | Ferrari WiFi Antenna - 286161 | $415.25 | Special order, ships in 7-14 days |
| 6 | 303226 | Ferrari USB Socket - 303226 | $100.78 | Special order, ships in 7-14 days |
| 7 | 342543 | Ferrari Splitter Antenna Gpsntm Lead - 342543 | $305.96 | Special order, ships in 7-14 days |
| 8 | 865004 | Ferrari Surround View Ecu - 865004 | $5,030.03 | Special order, ships in 7-14 days |
| 8 | 870702 | Ferrari Surround View Ecu - 870702 | $5,016.76 | Special order, ships in 7-14 days |
| 9 | 856350 | Ferrari Staf Sup C.Lina Surround Vie - 856350 | $86.15 | Special order, ships in 7-14 days |
| 10 | 16285127 | Ferrari Screw M5 x 16 - 16285127 | $1.05 | Special order, ships in 7-14 days |
| 11 | 323616 | Ferrari Telemetry Usb Key Kit - 323616 | $663.86 | Special order, ships in 7-14 days |
| 12 | 323618 | Ferrari 4 - language Manual for Telemetry - 323618 | $88.09 | Special order, ships in 7-14 days |
