Ferrari F80 — [ENGINE] - B.7 - TORSIONAL DAMPER AND DECOUPLER (diagram 0010)

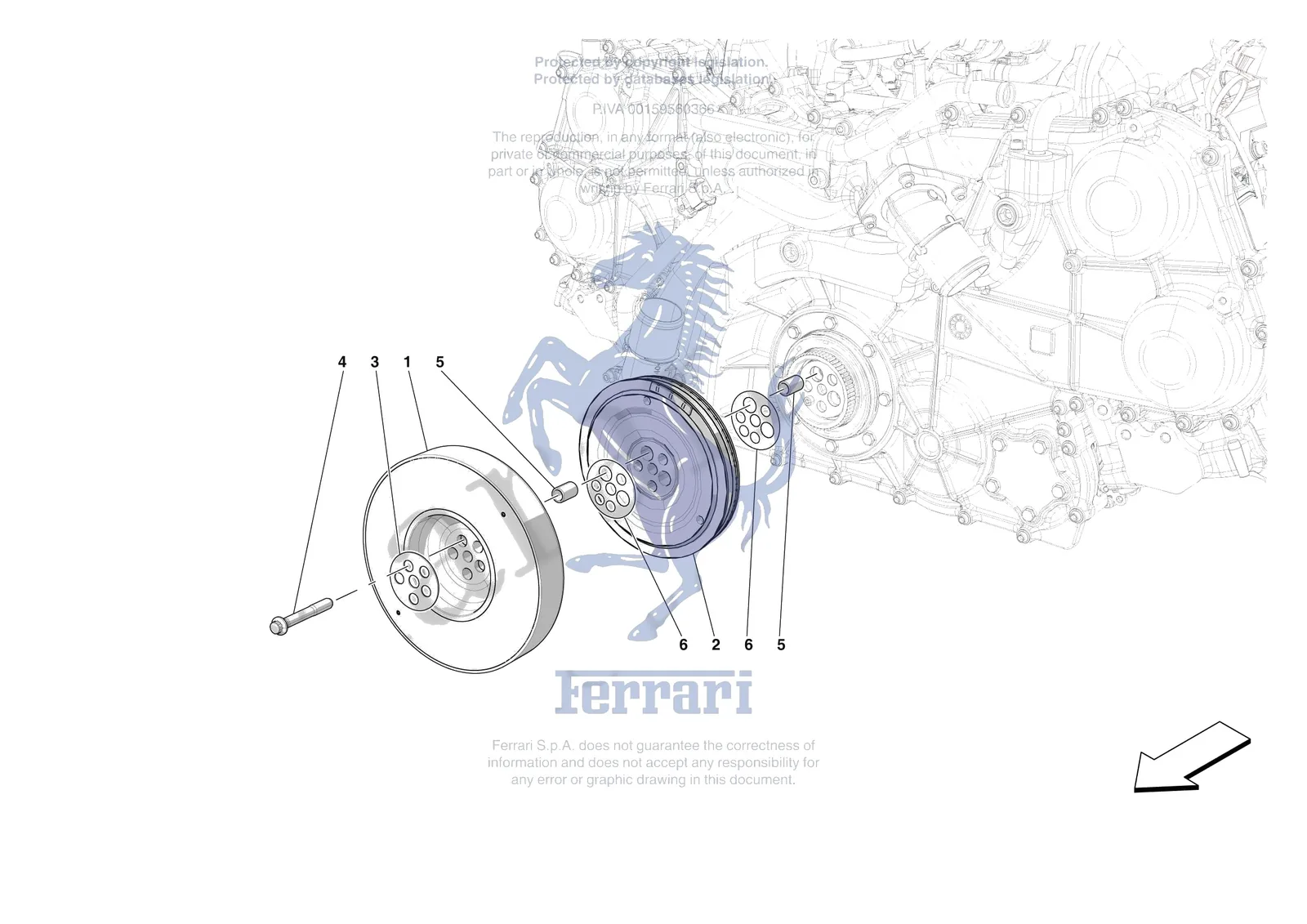

Exploded view of the [engine] - b.7 - torsional damper and decoupler on the Ferrari F80, with 7 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [ENGINE] - B.7 - TORSIONAL DAMPER AND DECOUPLER exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0010.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 55006871 | Ferrari SMORZATORE TORSIONALE - 55006871 | $4,321.83 | Special order, ships in 7-14 days |
| 2 | 920398 | Ferrari Front Flywheel - 920398 | $12,144.80 | Special order, ships in 7-14 days |
| 3 | 803159 | Ferrari Washer - 803159 | $9.81 | Special order, ships in 7-14 days |
| 4 | 336406 | Ferrari Screw - 336406 | Superseded | Order 328629 instead |
| 4 | 328629 | Ferrari Screw M10 x 1.25 - 328629 | $159.75 | Available, ships in 3-6 days |
| 5 | 889597 | Ferrari Alignment Pin - 889597 | $51.67 | Special order, ships in 7-14 days |
| 6 | 807723 | Ferrari WASHER - 807723 | Price on request | Contact us for price and availability |
