Ferrari F80 — [ENGINE] - B.08.03 - CYLINDER HEADS - TIMING (diagram 0013)

Exploded view of the [engine] - b.08.03 - cylinder heads - timing on the Ferrari F80, with 17 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

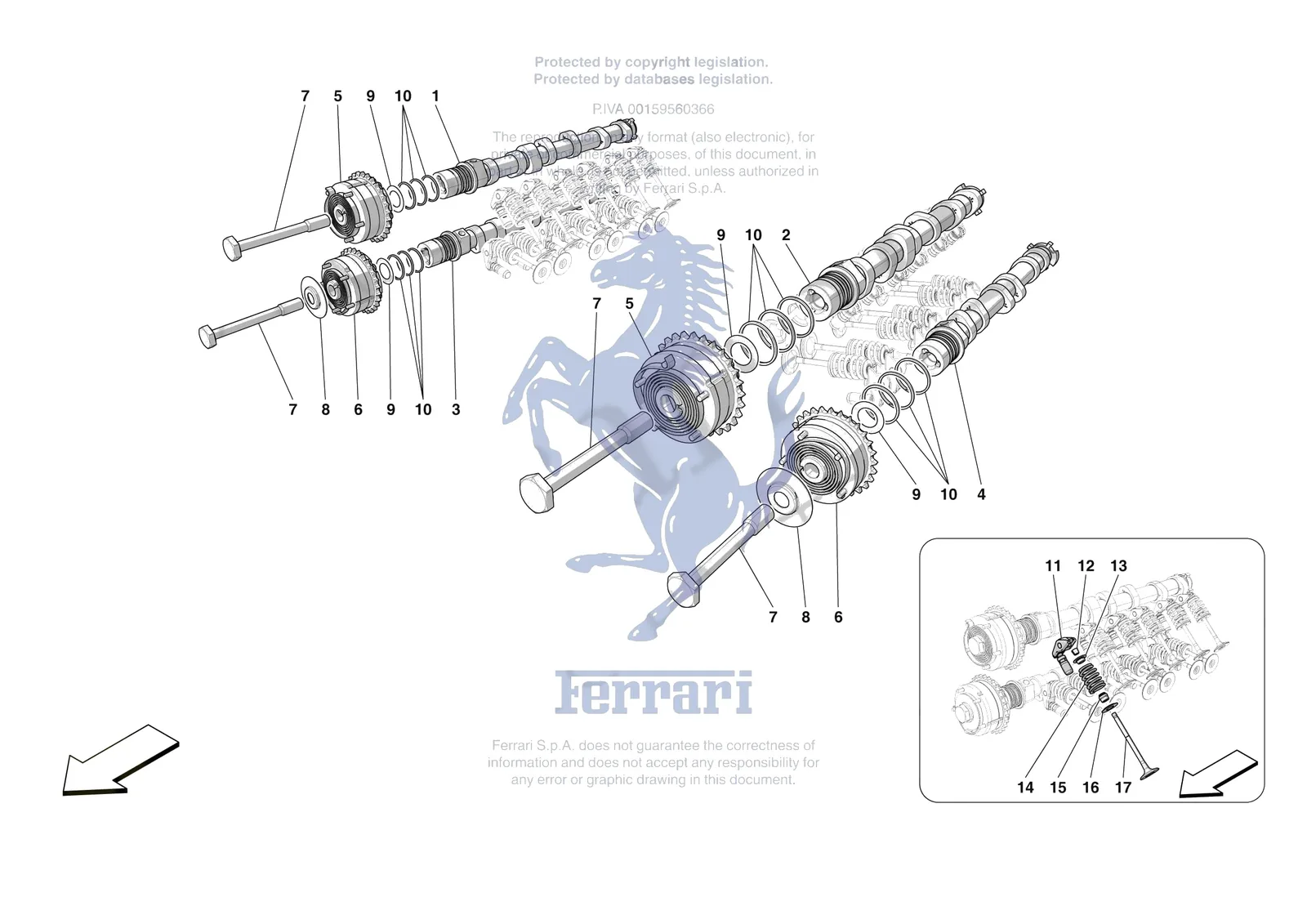

Ferrari F80 [ENGINE] - B.08.03 - CYLINDER HEADS - TIMING exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
877467Ferrari Compl. Finger-Tappet - 877467SupersededOrder 840559 instead
5795895Ferrari Variable Valve Timing Adjuster - 795895$1,131.03Special order, ships in 7-14 days
6795894Ferrari Variable Valve Timing Adjuster - 795894$1,131.03Special order, ships in 7-14 days
7254892Ferrari Screw M14 x 1.5 - 254892$26.20Available, ships in 3-6 days
8296310Ferrari Spacer - 296310$36.86Special order, ships in 7-14 days
9240559Ferrari Diamond Washer - 240559$17.90Available, ships in 3-6 days
10246965Ferrari Seal Ring - 246965$18.42Available, ships in 3-6 days
11840559Ferrari Compl. Finger-Tappet - 840559$105.70Special order, ships in 7-14 days
12179763Ferrari Valve Collets Per Half - 179763$1.40Available, ships in 3-6 days
13938039Ferrari Upper Valve Spring Cap - 938039$29.48Special order, ships in 7-14 days
14981083Ferrari MOLLA PER RICHIAMO VALVOLE - 981083$56.60Special order, ships in 7-14 days
14821149Ferrari Valve Return Spring - 821149$31.93Special order, ships in 7-14 days
15899547Ferrari Oil Seal For Valve Seal - 899547$7.84Special order, ships in 7-14 days
16762627Ferrari Lower Valve Spring Cap - 762627$36.92Special order, ships in 7-14 days
16925693Ferrari Lower Valve Spring Cap - 925693$19.65Special order, ships in 7-14 days
17828769Ferrari Exhaust Valve - 828769$125.37Special order, ships in 7-14 days
17828771Ferrari Intake Valve - 828771$61.45Special order, ships in 7-14 days

All F80 diagrams
