Ferrari F80 — [ENGINE] - B.9 - TIMING SYSTEM DRIVE (diagram 0014)

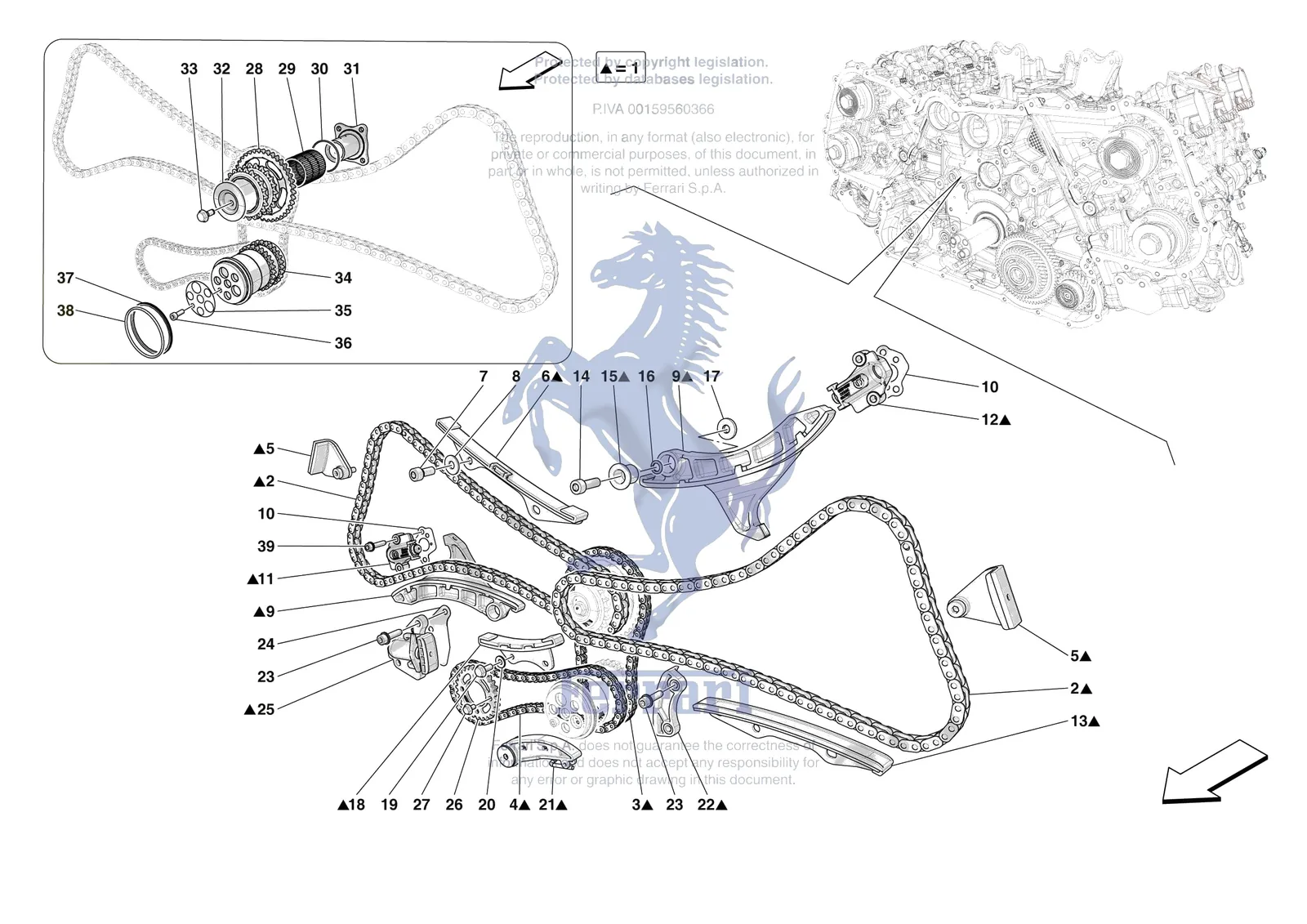

Exploded view of the [engine] - b.9 - timing system drive on the Ferrari F80, with 44 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [ENGINE] - B.9 - TIMING SYSTEM DRIVE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0014.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 806402 | Ferrari Fixed Shoe - 806402 | $145.03 | Special order, ships in 7-14 days | |
| 903948 | Ferrari Hydraulic Tensioner - 903948 | $83.57 | Special order, ships in 7-14 days | |
| 903967 | Ferrari Hydraulic Tensioner - 903967 | $236.02 | Special order, ships in 7-14 days | |
| 876149 | Ferrari Mobile Shoe - 876149 | $223.73 | Special order, ships in 7-14 days | |
| 287802 | Ferrari Shoulder - 287802 | $61.16 | Special order, ships in 7-14 days | |
| 1 | 55039610 | Ferrari VALVE TIMING AND PUMP DRIVE SYSTEM - 55039610 | Price on request | Contact us for price and availability |
| 2 | 876147 | Ferrari Valve Timing Chain - 876147 | $270.44 | Special order, ships in 7-14 days |
| 3 | 803163 | Ferrari Chain - 803163 | $319.62 | Special order, ships in 7-14 days |
| 4 | 803168 | Ferrari Pump Drive Chain - 803168 | $218.81 | Special order, ships in 7-14 days |
| 5 | 803167 | Ferrari Fixed Shoe - 803167 | $295.03 | Special order, ships in 7-14 days |
| 6 | 803165 | Ferrari Fixed Shoe - 803165 | $145.03 | Special order, ships in 7-14 days |
| 7 | 14302821 | Ferrari Screw - 14302821 | $0.38 | Available, ships in 3-6 days |
| 8 | 163759 | Ferrari Washer - 163759 | $26.20 | Special order, ships in 7-14 days |
| 9 | 982230 | Ferrari Mobile Shoe - 982230 | Superseded | Order 876149 instead |
| 10 | 958150 | Ferrari Gasket - 958150 | $8.72 | Special order, ships in 7-14 days |
| 11 | 55021860 | Ferrari Hydraulic Tensioner - 55021860 | $245.85 | Special order, ships in 7-14 days |
| 12 | 55021861 | Ferrari Hydraulic Tensioner - 55021861 | $514.01 | Special order, ships in 7-14 days |
| 13 | 982232 | Ferrari Fixed Shoe - 982232 | Superseded | Order 806402 instead |
| 14 | 14306421 | Ferrari Screw 8x20 - 14306421 | $0.63 | Available, ships in 3-6 days |
| 14 | 14306424 | Ferrari Screw M8 x 25mm - 14306424 | Superseded | Order 14306421 instead |
| 15 | 175303 | Ferrari Bush For Timing Guide - 175303 | $56.52 | Special order, ships in 7-14 days |
| 16 | 284900 | Ferrari Washer - 284900 | $0.33 | Special order, ships in 7-14 days |
| 17 | 288341 | Ferrari Washer - 288341 | $5.86 | Special order, ships in 7-14 days |
| 18 | 905015 | Ferrari Fixed Shoe - 905015 | $344.21 | Special order, ships in 7-14 days |
| 19 | 181336 | Ferrari Screw M6 X 16 - 181336 | $5.14 | Available, ships in 3-6 days |
| 20 | 276781 | Ferrari Washer - 276781 | $0.79 | Special order, ships in 7-14 days |
| 21 | 904999 | Ferrari Mobile Shoe - 904999 | $639.27 | Special order, ships in 7-14 days |
| 22 | 905013 | Ferrari Fixed Shoe - 905013 | $516.33 | Special order, ships in 7-14 days |
| 23 | 282396 | Ferrari Screw 6x22 - 282396 | $1.23 | Available, ships in 3-6 days |
| 24 | 958152 | Ferrari Gasket - 958152 | $10.02 | Special order, ships in 7-14 days |
| 25 | 982233 | Ferrari HYDRAULIC CHAIN TENSIONER - 982233 | Price on request | Contact us for price and availability |
| 26 | 806536 | Ferrari Pump Drive Gear - 806536 | $319.62 | Special order, ships in 7-14 days |
| 27 | 255780 | Ferrari Screw 5x9 - 255780 | $2.59 | Special order, ships in 7-14 days |
| 28 | 806470 | Ferrari Drive Gear - 806470 | $860.56 | Special order, ships in 7-14 days |
| 29 | 267808 | Ferrari Roller Bearing Cage - 267808 | $24.02 | Available, ships in 3-6 days |
| 30 | 154191 | Ferrari O-Ring - 154191 | $1.42 | In stock |
| 31 | 806533 | Ferrari Mounting - 806533 | $467.15 | Special order, ships in 7-14 days |
| 32 | 304699 | Ferrari Shoulder - 304699 | $56.52 | Special order, ships in 7-14 days |
| 33 | 284898 | Ferrari Screw M6 x 16 - 284898 | $6.31 | Special order, ships in 7-14 days |
| 35 | 807703 | Ferrari Washer - 807703 | $78.66 | Special order, ships in 7-14 days |
| 36 | 245915 | Ferrari Screw - 245915 | $2.59 | Special order, ships in 7-14 days |
| 37 | 55065975 | Ferrari Gasket - 55065975 | $443.17 | Special order, ships in 7-14 days |
| 38 | 55065982 | Ferrari O-Ring - 55065982 | $443.17 | Special order, ships in 7-14 days |
| 39 | 282398 | Ferrari Screw 6x30 - 282398 | $1.04 | Available, ships in 3-6 days |
