Ferrari F80 — [ENGINE] - B.12 - ENGINE OIL PUMP (diagram 0017)

Exploded view of the [engine] - b.12 - engine oil pump on the Ferrari F80, with 15 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

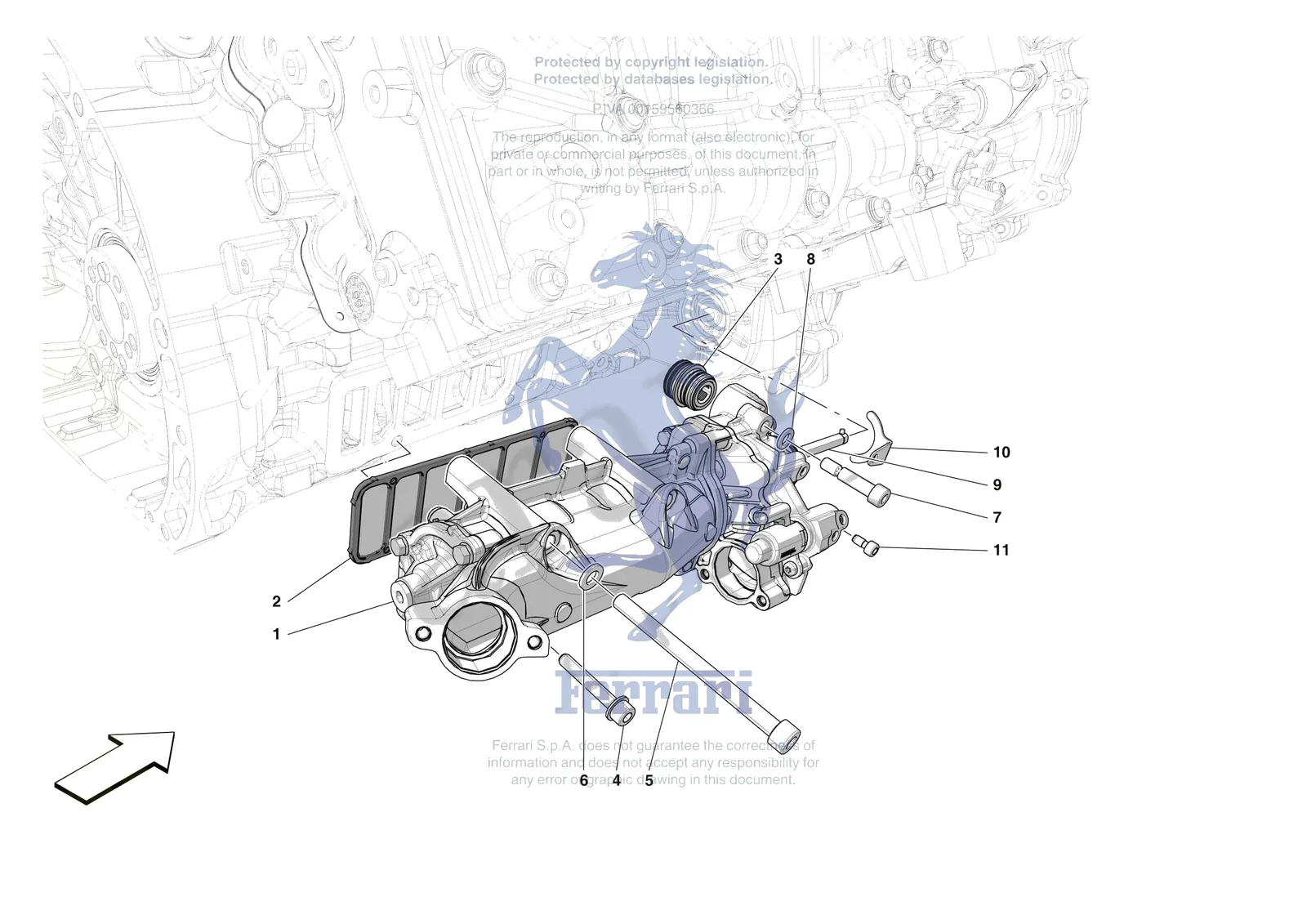

Ferrari F80 [ENGINE] - B.12 - ENGINE OIL PUMP exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14306824Ferrari Bolt M8 x 45 TCEI - 14306824$1.04Available, ships in 3-6 days
804067Ferrari Check Valve - 804067$164.72Special order, ships in 7-14 days
834674Ferrari Check Valve - 834674Price on requestContact us for price and availability
986899Ferrari Washer - 986899SupersededOrder 986847 instead
155042236Ferrari COMPL. OIL PUMP - 55042236Price on requestContact us for price and availability
2965552Ferrari Oil Recovery Pump Filter - 965552$85.22Special order, ships in 7-14 days
3814336Ferrari Check Valve - 814336$189.31Special order, ships in 7-14 days
4285494Ferrari Screw 8x50 - 285494$1.99Available, ships in 3-6 days
514302124Ferrari Allen Head Bolt M 8X100 - 14302124$2.59Special order, ships in 7-14 days
611198074Ferrari/Maserati Washer - 11198074$0.14In stock
7864151Ferrari Screw - 864151$56.54Special order, ships in 7-14 days
8986847Ferrari Conical Washer - 986847$1.36Special order, ships in 7-14 days
9949381Ferrari Hexagonal Oil Pump Drive Rod - 949381$125.37Special order, ships in 7-14 days
10866272Ferrari Oil Pump Bushing Mounting Br - 866272$27.03Special order, ships in 7-14 days
11282391Ferrari Screw - 282391$1.80Special order, ships in 7-14 days
