Ferrari F80 — [ENGINE] - B.14 - ENGINE INTAKE DUCT (diagram 0019)

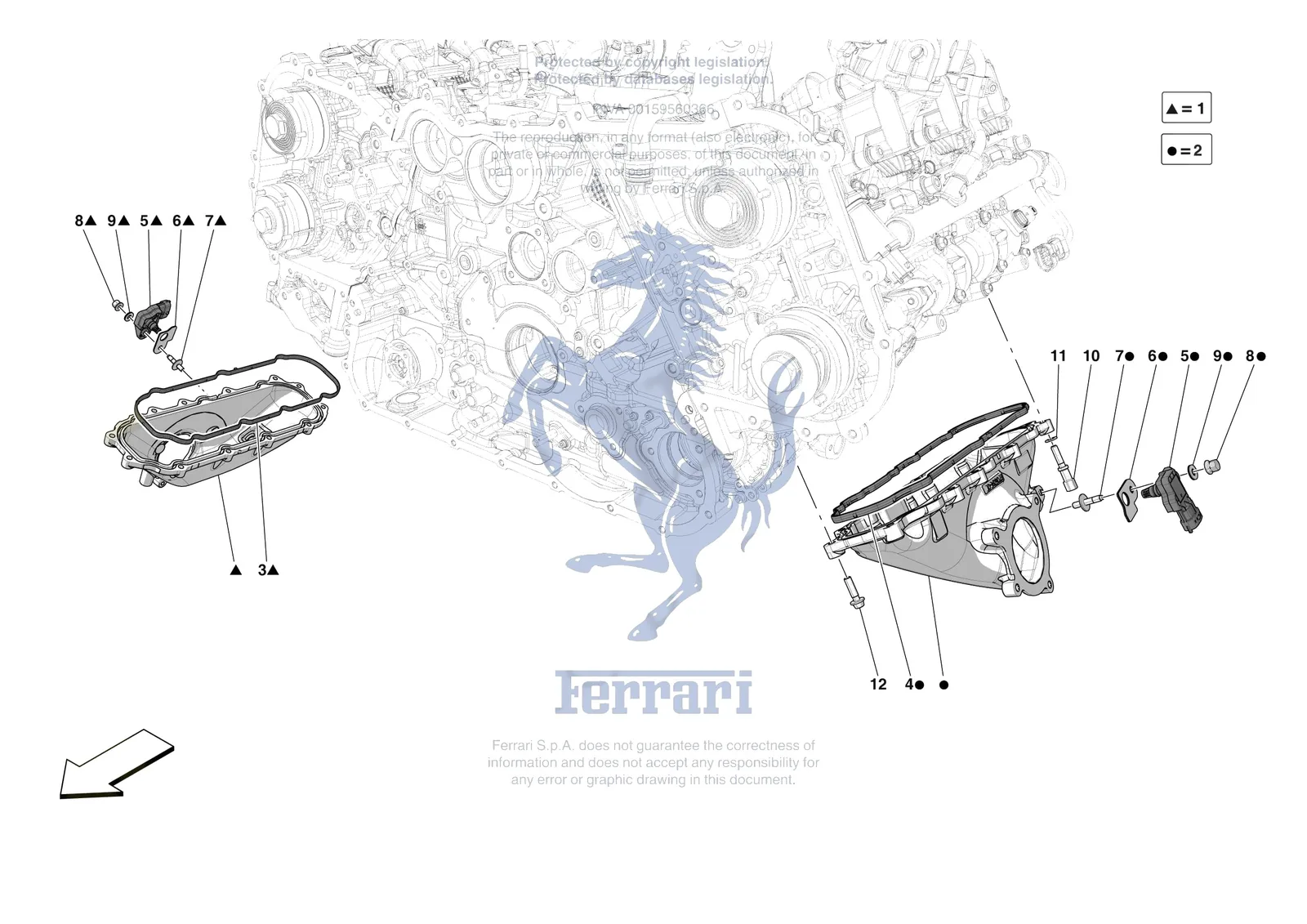

Exploded view of the [engine] - b.14 - engine intake duct on the Ferrari F80, with 11 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [ENGINE] - B.14 - ENGINE INTAKE DUCT exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0019.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 11197779 | Ferrari Washer - 11197779 | Superseded | Order 11197774 instead | |
| 3 | 878052 | Ferrari RH Plenum Flange Gasket - 878052 | $108.31 | Special order, ships in 7-14 days |
| 4 | 878053 | Ferrari LH Plenum Flange Gasket - 878053 | $108.31 | Special order, ships in 7-14 days |
| 5 | 835465 | Ferrari Pressure And Temperature Sen - 835465 | $83.03 | Special order, ships in 7-14 days |
| 6 | 778884 | Ferrari Damping Plate - 778884 | $20.16 | Special order, ships in 7-14 days |
| 7 | 202473 | Ferrari Stud Bolt - 202473 | $56.60 | Special order, ships in 7-14 days |
| 8 | 844392 | Ferrari Nut - 844392 | $14.64 | Special order, ships in 7-14 days |
| 9 | 778889 | Ferrari Damping Washer - 778889 | $10.48 | Special order, ships in 7-14 days |
| 10 | 942873 | Ferrari Stud Bolt - 942873 | $66.45 | Special order, ships in 7-14 days |
| 11 | 11197774 | Ferrari Conic Washer 6.4x12x1.2 - 11197774 | $0.12 | Available, ships in 3-6 days |
| 12 | 226900 | Ferrari SCREW - 226900 | Price on request | Contact us for price and availability |
