Ferrari F80 — [MECHANICAL SYSTEM] - D.3 - ENGINE INJECTION CONTROL (diagram 0051)
Exploded view of the [mechanical system] - d.3 - engine injection control on the Ferrari F80, with 30 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

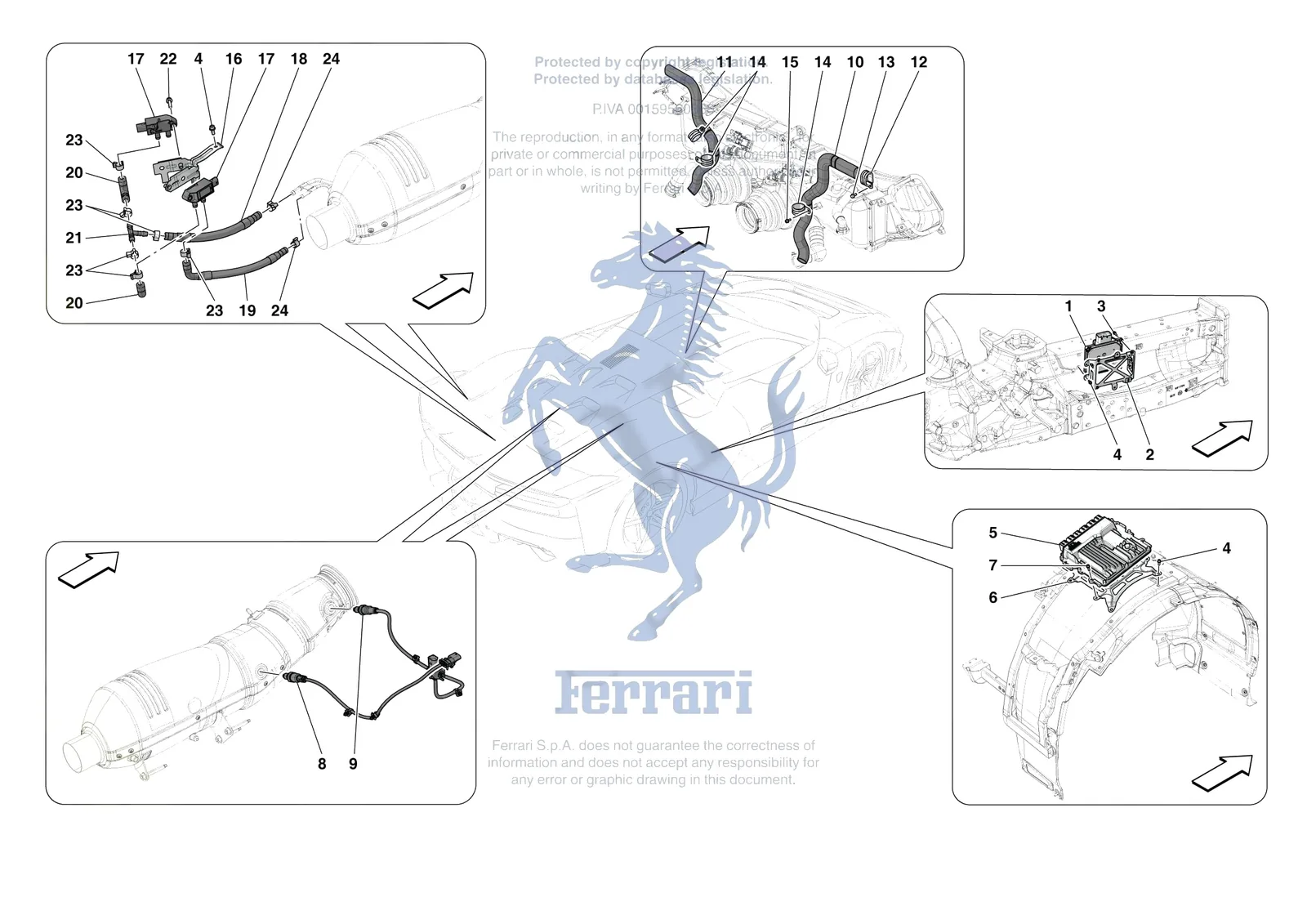

![Ferrari F80 [MECHANICAL SYSTEM] - D.3 - ENGINE INJECTION CONTROL exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0051.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 749477 | Ferrari ECU Ion Fornitura Cpl Eisb 1 - 749477 | Superseded | Order 952897 instead | |
| 771583 | Ferrari Ionising Knock Sensor Contro - 771583 | Superseded | Order 952897 instead | |
| 782371 | Ferrari Ionising Knock Sensor Contro - 782371 | Superseded | Order 952897 instead | |
| 291225 | Ferrari P clip Bracket With Sheath - 291225 | $7.86 | Special order, ships in 7-14 days | |
| 340699 | Ferrari T Union - 340699 | Superseded | Order 913829 instead | |
| 1 | 952897 | Ferrari Ionising Knock Sensor Control - 952897 | $2,400.25 | Special order, ships in 7-14 days |
| 2 | 986423 | Ferrari IONISING ECU BRACKET - 986423 | Price on request | Contact us for price and availability |
| 3 | 797726 | Ferrari Screw - 797726 | $1.05 | Special order, ships in 7-14 days |
| 4 | 797724 | Ferrari Screw - 797724 | $0.92 | Special order, ships in 7-14 days |
| 5 | 935117 | Ferrari Centralina Accensione Mg1 Cp - 935117 | $2,749.16 | Special order, ships in 7-14 days |
| 6 | 825429 | Ferrari MOTRONIC IGNITION ECU BRACKET - 825429 | Price on request | Contact us for price and availability |
| 7 | 797725 | Ferrari Screw - 797725 | $1.82 | Special order, ships in 7-14 days |
| 8 | 866219 | Ferrari Rear Lambda/Oxygen Sensor - 866219 | $205.72 | Available, ships in 3-6 days |
| 9 | 787778 | Ferrari Front Oxygen Sensor - 787778 | $262.24 | Available, ships in 3-6 days |
| 10 | 775113 | Ferrari RH Coil Cooling Pipe - 775113 | $393.93 | Special order, ships in 7-14 days |
| 11 | 948418 | Ferrari LH Coil Cooling Pipe - 948418 | $393.93 | Special order, ships in 7-14 days |
| 12 | 940541 | Ferrari BRACKET WITH SHEATH - 940541 | Price on request | Contact us for price and availability |
| 13 | 16285021 | Ferrari Screw - 16285021 | $0.82 | Special order, ships in 7-14 days |
| 14 | 10442290 | Ferrari P Clip Bracket With Sheath - 10442290 | $1.42 | Special order, ships in 7-14 days |
| 15 | 797723 | Ferrari Screw - 797723 | $0.86 | Special order, ships in 7-14 days |
| 16 | 825464 | Ferrari LH GPF SENSOR BRACKET - 825464 | Price on request | Contact us for price and availability |
| 16 | 825434 | Ferrari RH GPF SENSOR BRACKET - 825434 | Price on request | Contact us for price and availability |
| 17 | 340691 | Ferrari Pressure Sensor - 340691 | $196.67 | Special order, ships in 7-14 days |
| 18 | 974019 | Ferrari Hose - 974019 | $130.47 | Special order, ships in 7-14 days |
| 19 | 974018 | Ferrari Hose - 974018 | $162.48 | Special order, ships in 7-14 days |
| 20 | 806791 | Ferrari Tubo Gomma D.7-14 90 - 806791 | $34.40 | Special order, ships in 7-14 days |
| 21 | 913829 | Ferrari Three Way - 913829 | $10.06 | Special order, ships in 7-14 days |
| 22 | 797729 | Ferrari Screw - 797729 | $1.61 | Special order, ships in 7-14 days |
| 23 | 13125470 | Ferrari Collar - 13125470 | Superseded | Order 13126970 instead |
| 24 | 13125270 | Ferrari Collare A Nastro Fiss.Manic. - 13125270 | $3.68 | Special order, ships in 7-14 days |
