Ferrari F80 — [MECHANICAL SYSTEM] - D.11 - FUEL TANK (diagram 0061)

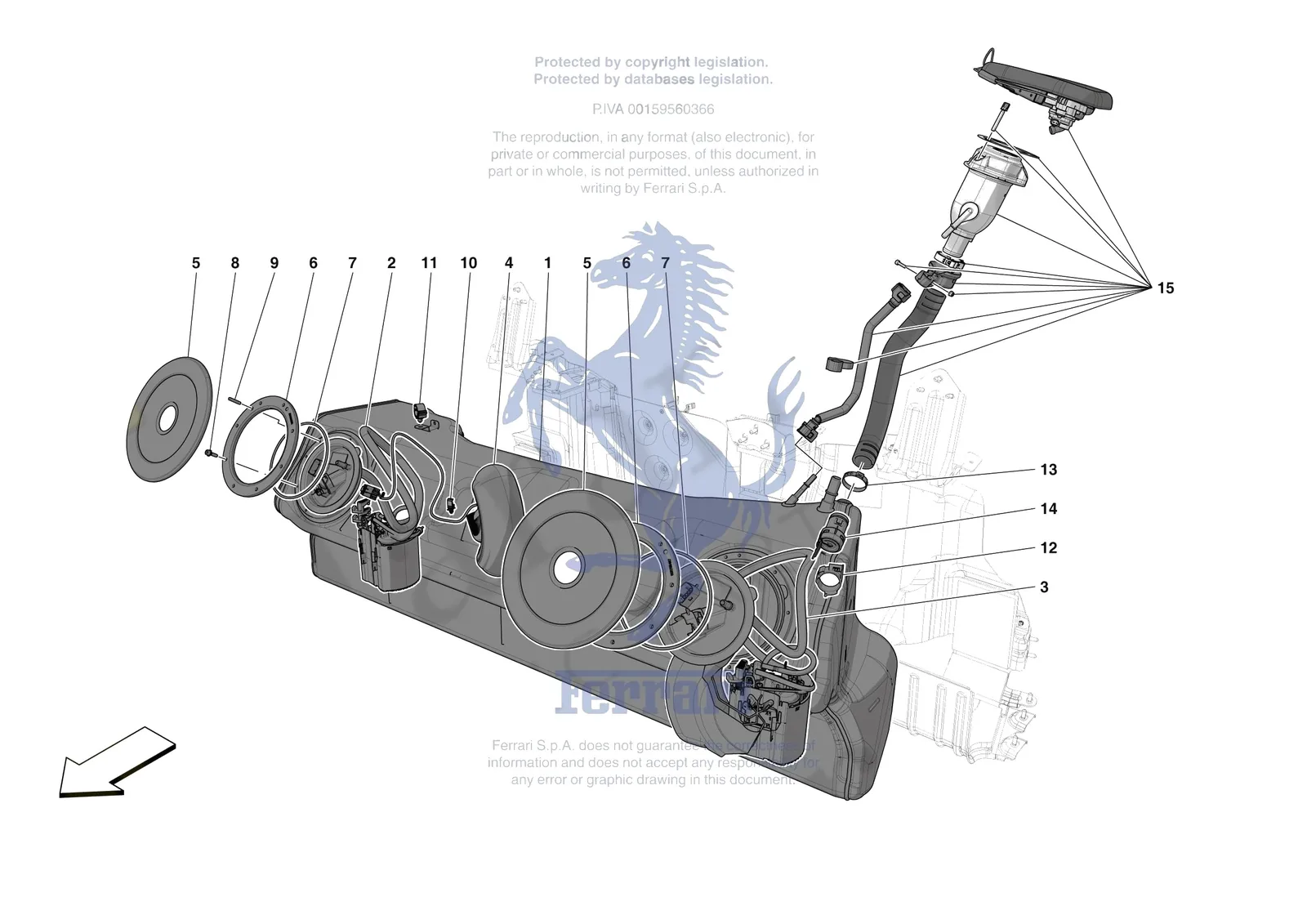

Exploded view of the [mechanical system] - d.11 - fuel tank on the Ferrari F80, with 18 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [MECHANICAL SYSTEM] - D.11 - FUEL TANK exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0061.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 170127 | Ferrari Clip - 170127 | Superseded | Order 10718670 instead | |
| 850148 | Ferrari Fuel Pump E Sens. Press Cp - 850148 | $2,206.39 | Special order, ships in 7-14 days | |
| 957848 | Ferrari Fuel Pump E Sens. Press Cp - 957848 | Price on request | Contact us for price and availability | |
| 181929 | Ferrari On-Off Valve - 181929 | $440.56 | Special order, ships in 7-14 days | |
| 2 | 838726 | Ferrari Fuel Pump E Sens. Press Cp - 838726 | $2,855.83 | Special order, ships in 7-14 days |
| 3 | 841841 | Ferrari Cpl Fuel Pump E Flangia Pomp - 841841 | $2,381.25 | Special order, ships in 7-14 days |
| 4 | 864964 | Ferrari Compl. Corner Adapter - 864964 | $1,008.09 | Special order, ships in 7-14 days |
| 5 | 774704 | Ferrari Fuel Pump Inspection Cap - 774704 | $56.52 | Special order, ships in 7-14 days |
| 6 | 753437 | Ferrari Flange Fastener Ring - 753437 | $1,617.32 | Special order, ships in 7-14 days |
| 7 | 899649 | Ferrari O-Ring - 899649 | $32.76 | Special order, ships in 7-14 days |
| 8 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
| 9 | 11001124 | Ferrari Stud Bolt - 11001124 | $137.67 | Available, ships in 3-6 days |
| 10 | 291408 | Ferrari Clip - 291408 | $0.34 | Special order, ships in 7-14 days |
| 11 | 259508 | Ferrari Clip 15.8mm-18.5mm - 259508 | $1.25 | Special order, ships in 7-14 days |
| 12 | 254078 | Ferrari Clip - 254078 | $3.68 | Special order, ships in 7-14 days |
| 13 | 10718670 | Ferrari Collar - 10718670 | $2.59 | Available, ships in 3-6 days |
| 14 | 237407 | Ferrari On-Off Valve - 237407 | $56.52 | Special order, ships in 7-14 days |
| 15 | 55015512 | Ferrari COMPL. FUEL FILLER NECK - 55015512 | $6,534.37 | Special order, ships in 7-14 days |
